1972 Suzuki TS400 Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1972 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

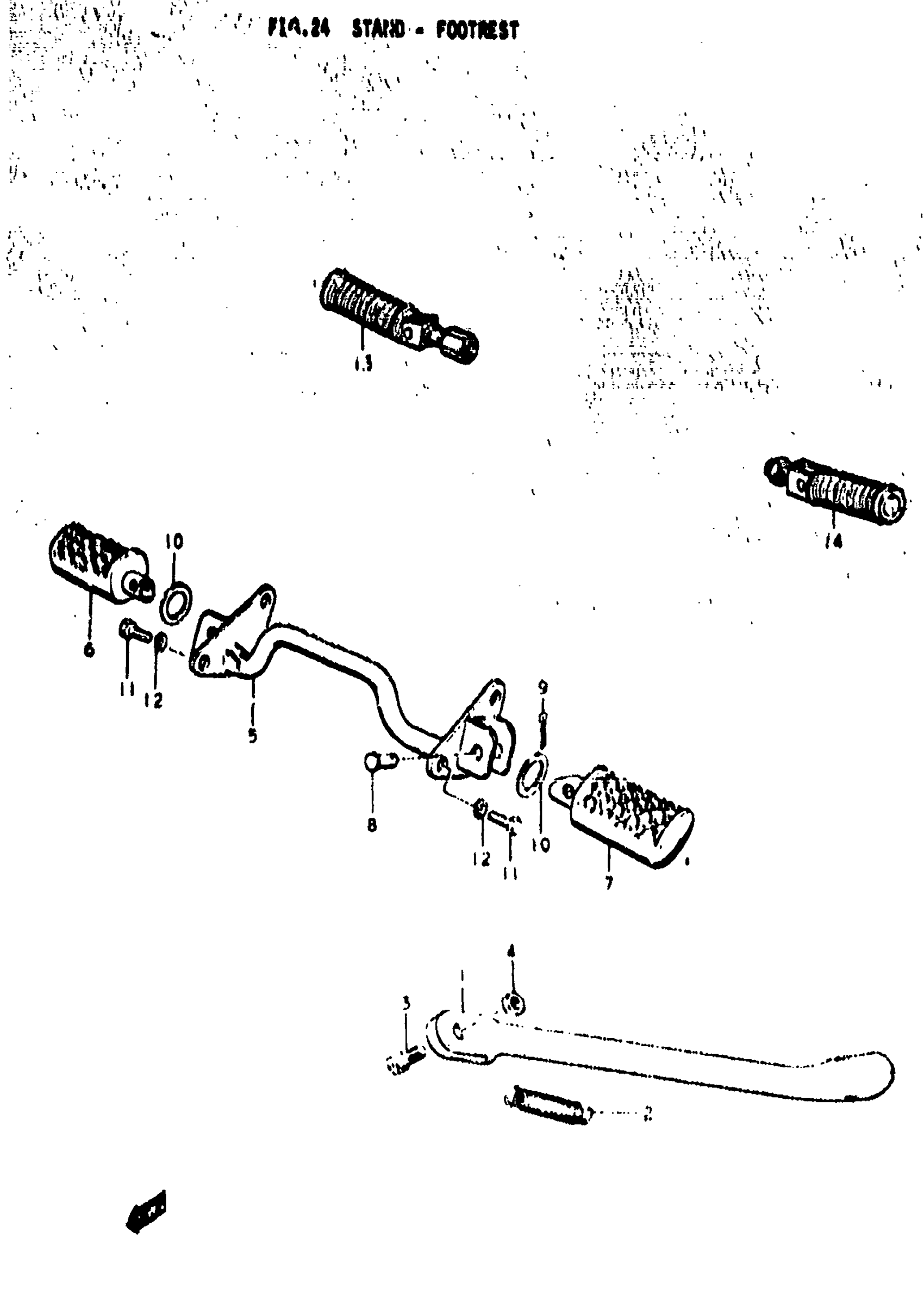

1972 Suzuki TS400 Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | TO 42310-41100 This part replaces 42310-16500.

42310-41100

1
Out of stock

2

SPRING This part replaces 09443-14005.

09443-14017

1
Out of stock

3

BOLT

09100-10067

1
Out of stock

4

NUT This part replaces 08312-31108.

08310-00107

1
Out of stock

5

FOOTREST, FRONT

43510-32001

1
Out of stock

6

RUBBER, RH | CIRCLE SHAPED This part replaces 43550-25000.

43550-25301

1
Out of stock

7

RUBBER, LH | CIRCLE SHAPED SEE NOTE This part replaces 43560-25000.

43560-25301

1
Out of stock

8

PIN

09200-08002

2
Out of stock

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

10

WASHER This part replaces 09160-22002.

09160-22033

2
Out of stock

11

BOLT, REAR This part replaces 01122-08208.

01500-08207

4
Out of stock

12

4

$2.28

In stock

13

FOOTREST ASSY, PILLION RH

43600-20000

1
Out of stock

14

FOOTREST ASSY,P This part replaces 43600-03001.

43600-09D00

1
Out of stock
