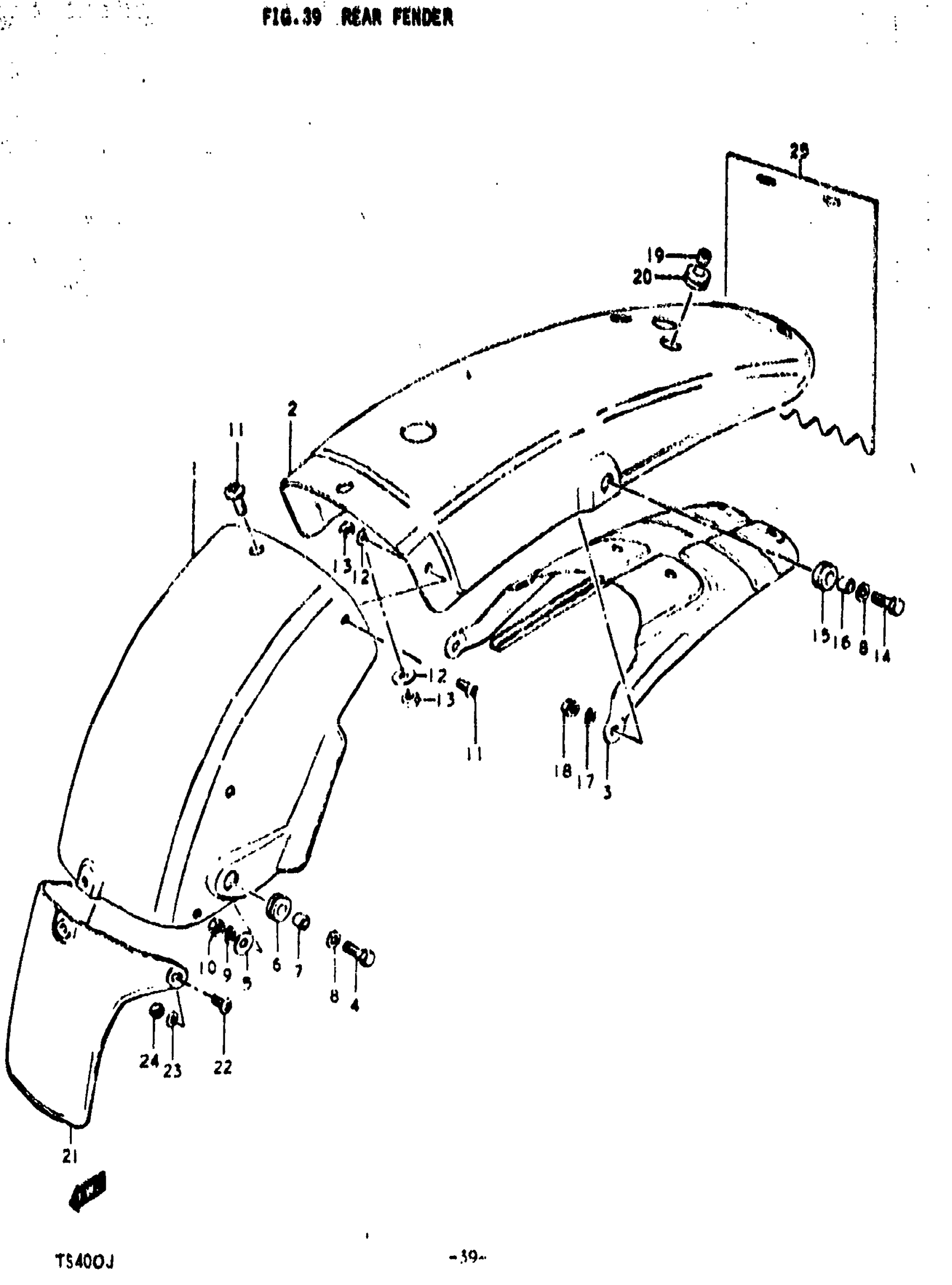

Find the part on the Rear Fender diagram for your 1972 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS400 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT | TO 63110-30620

63112-30002-019

—
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 63113-30100-185.

63113-30100-737

1
Out of stock

3

REINFOCEMENT, REAR FENDER

63120-30000

1
Out of stock

4

BOLT This part replaces 01112-06258.

01500-06257

2
Out of stock

5

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

7

SPACER | 6.1x9x7.5

09180-06038

2
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock

9

2

$2.28

In stock

10

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

11

SCREW This part replaces 02141-05167.

02142-05167

3
Out of stock

12

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

13

NUT This part replaces 08311-11058.

08310-00057

3
Out of stock

14

BOLT This part replaces 01112-06258.

01500-06257

2
Out of stock

15

CUSHION (8.5X20X8) | 6.1x9x7.5 This part replaces 09320-08007.

09320-08510

2
Out of stock

16

SPACER | 6.1x9x7.5

09180-06038

2
Out of stock

17

2

$2.28

In stock

18

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

19

SPACER | 6.1x9x7.5

09180-06038

4
Out of stock

20

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

4
Out of stock

21

MUD GUARD, REAR FENDER | FROM 63411-30000 TO 63411-30002

63411-30001

—
Out of stock

22

SCREW This part replaces 02141-05167.

02142-05167

3
Out of stock

23

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

24

NUT This part replaces 08311-31058.

08310-00057

3
Out of stock

25

FLAP, FAST FENDER MUD | OPT

63331-26000

1
Out of stock
