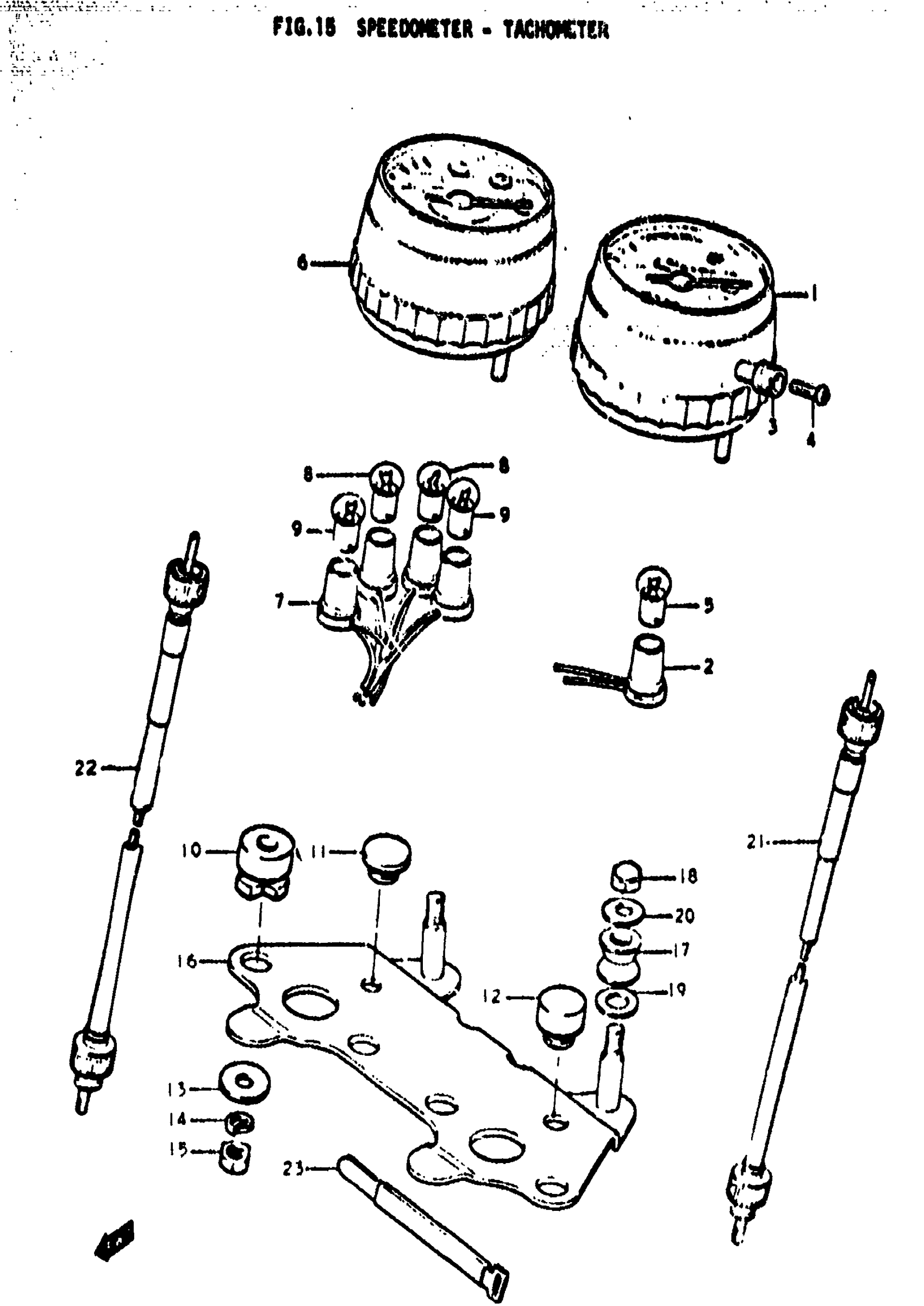

Suzuki TS400 (1972) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | TO 34100-32612 USED WITH 34175-30710; Includes Item(s) 1 - 16 This part replaces 34100-32710.

34100-32615

Unavailable

1

SPEEDOMETER ASSY

34100-32610

Unavailable

2

SOCKET

34173-32600

Unavailable

3

KNOB, TRIP METER

34980-33600

Unavailable

4

SCREW (2X6) This part replaces 34981-33600.

09139-02003

$1.65

5

BULB | 12V, 3.4W

09471-12001

$1.65

6

TACHOMETER ASSY

34200-32600

Unavailable

7

SOCKET

34170-32600

Unavailable

8

BULB | 12V, 1.7W

09471-12004

$2.69

9

BULB | 12V, 3.4W

09471-12001

$1.65

10

CUSHION, A

34955-16420

$4.43

11

CUSHION, B

34956-16420

Unavailable

12

CUSHION, C

34957-16420

Unavailable

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

BRACKET

34950-32600

Unavailable

17

CUSHION, BRACKET

34956-15100

$3.71

18

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

19

WASHER This part replaces 08322-21088.

08322-01087

$2.13

20

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

21

CABLE,SPEEDOMET This part replaces 34910-30031.

34910-18991

$31.50

22

CABLE ASSY, TACHOMETER | TO 34940-34030

34940-32030

Unavailable

23

CLAMP This part replaces 09407-11302.

09407-18302

$2.28
