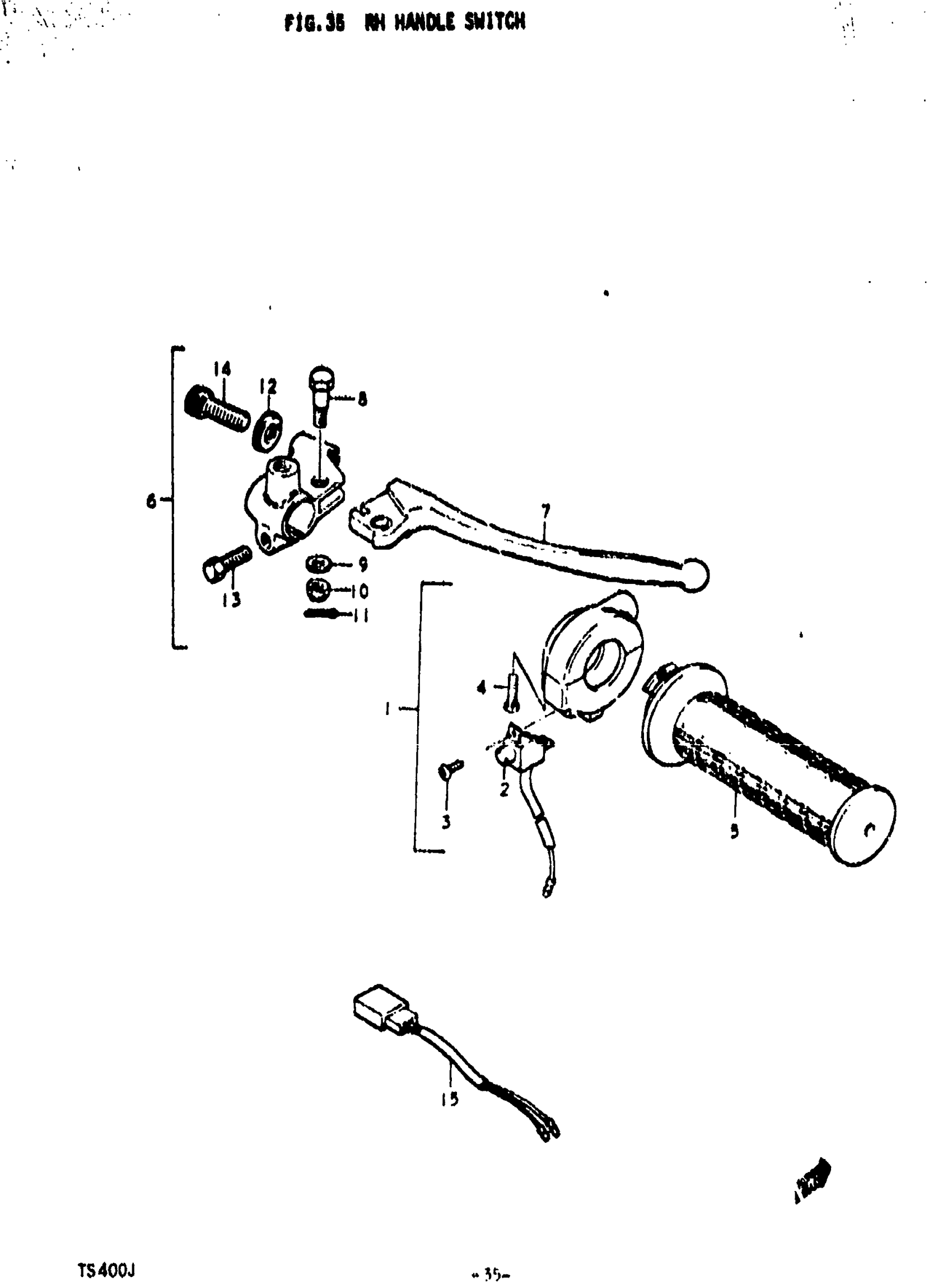

Suzuki TS400 (1972) RH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | TO 57100-32011; Includes Item(s) 2 - 5

57100-32010

Unavailable

2

SWITCH ASSY, ENGINE STOP

57150-32010

Unavailable

3

SCREW This part replaces 02111-03067.

02112-0306B

$1.59

4

SCREW This part replaces 02111-05207.

02112-05207

$1.97

5

GRIP, THROTTLE

57110-28010

$34.76

6

LEVER ASSY, BRAKE | TO 57300-30700; Includes Item(s) 7 - 15 This part replaces 57300-30011.

57300-30501

Unavailable

7

LEVER, BRAKE This part replaces 57420-33010.

57420-18602

Unavailable

8

BOLT This part replaces 57431-11010.

57431-11013

$6.31

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

NUT

57433-11010

$5.64

11

PIN This part replaces 04111-16158.

04111-1620A

$1.49

12

NUT, CABLE

57442-11010

$2.79

13

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

14

ADJUSTER, CABLE

57441-11010

$5.62

15

LEAD WIRE

57323-31700

Unavailable
