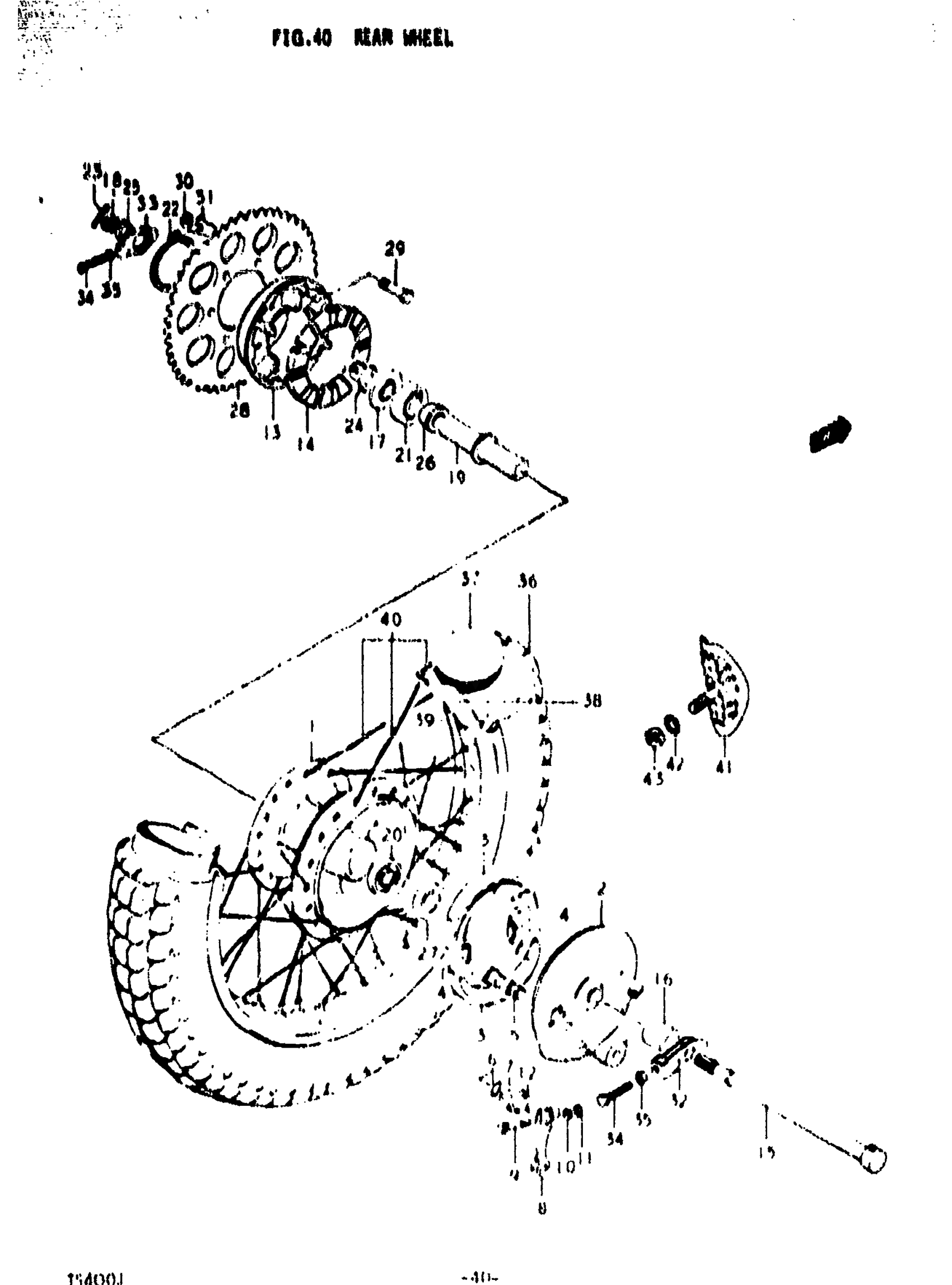

Suzuki TS400 (1972) REAR WHEEL Diagram

#

Description
Price

1

DRUM

64110-30000

Unavailable

2

PANEL | TO 64210-30001

64210-30000

Unavailable

3

SHOE, BRAKE | TO 54410-68002

54410-32000

Unavailable

4

SPRING, BRAKE SHOE

53420-30000

Unavailable

5

CAM, BRAKE | TO 54440-30001

54440-30000

Unavailable

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

NO DESCRIPTION AVAILABLE This part replaces 64451-30000.

64451-30001

Unavailable

9

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 64610-30000.

64610-30001

Unavailable

14

CUSHION, HUB DRUM

64650-16520

Unavailable

15

AXLE, REAR

64711-16500

Unavailable

16

SPACER, RH

09180-15014

Unavailable

17

SPACER, LH

64750-30000

Unavailable

18

NUT

09141-14001

$4.60

19

SPACER BEARINH

64750-30000

Unavailable

20

BEARING (15X42X13) This part replaces 08113-63020.

09262-15027

$23.39

21

BEARING This part replaces 08123-63040.

08123-6304B

$24.07

22

CIRCLIP This part replaces 08331-11628.

08331-31629

$7.42

23

PIN This part replaces 04111-30408.

04111-3040A

$1.59

24

SPACER,CHAIN ADJUSTER

64791-30000

Unavailable

25

NUT This part replaces 09140-24002.

09140-24010

Unavailable

26

RETAINER, BEARING

64733-30000

Unavailable

27

OIL SEAL

09284-26001

Unavailable

28

SPROCKET,RR 40T | NT:40 This part replaces 64511-30700.

64511-30701

Unavailable

28

SPROCKET, REAR | NT:39, OPT

64511-30000

Unavailable

28

SPROCKET, REAR | NT:41, OPT

64511-30710

Unavailable

29

BOLT

09105-08001

$2.06

30

NUT

09140-08010

Unavailable

31

WASHER This part replaces 09169-08010.

09169-08011

$2.16

32

ADJUSTER, CHAIN This part replaces 61410-30000.

61410-30003

Unavailable

33

ADJUSTER, CHAIN LH This part replaces 61420-30001.

61420-30002

Unavailable

34

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

TIRE, REAR | 4.00-18 TO 65100-30600 This part replaces 65100-16411.

65100-30600

Unavailable

37

TUBE, INNER | 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

38

IN TUBE PROTECT | 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

39

RIM, WHEEL | 185x18

65311-30020

Unavailable

40

SPOKE ASSY, REAR | FOR TAKASAGO RIM This part replaces 65300-16828.

65320-16520

Unavailable

41

STOPPER, BEAD | TO 65270-300001 WITH 08312-11088 This part replaces 65270-30000.

65270-43D00

$58.75

42

WASHER This part replaces 08322-21088.

08322-01087

$2.13

43

NUT

09159-08016

Unavailable
