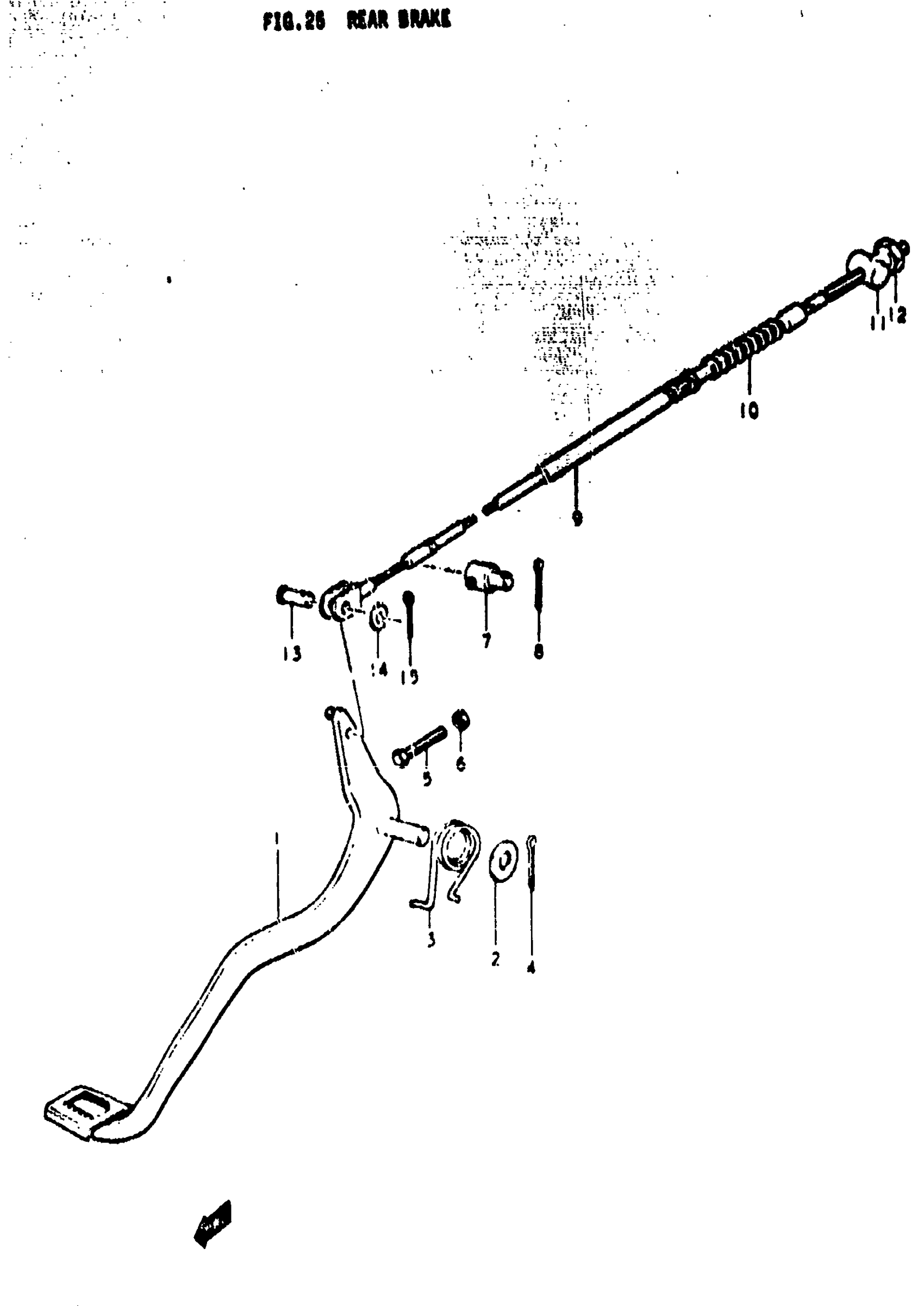

Suzuki TS400 (1972) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-32000

Unavailable

2

WASHER This part replaces 08322-11128.

08322-01127

$1.84

3

SPRING

09448-26002

Unavailable

4

PIN This part replaces 04111-30308.

04111-3030A

$1.49

5

BOLT

09100-06003

Unavailable

6

.NUT This part replaces 08311-11068.

08310-00067

$2.13

7

HOLDER, BRAKE WIRE END

43221-16501

Unavailable

8

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

9

CABLE ASSY, REAR BRAKE | Includes Item(s) 10

58510-16501

Unavailable

10

BOOT

09287-05001

Unavailable

11

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

12

.NUT This part replaces 09150-06001.

09150-06010

$3.10

13

PIN

09200-06013

$2.00

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
