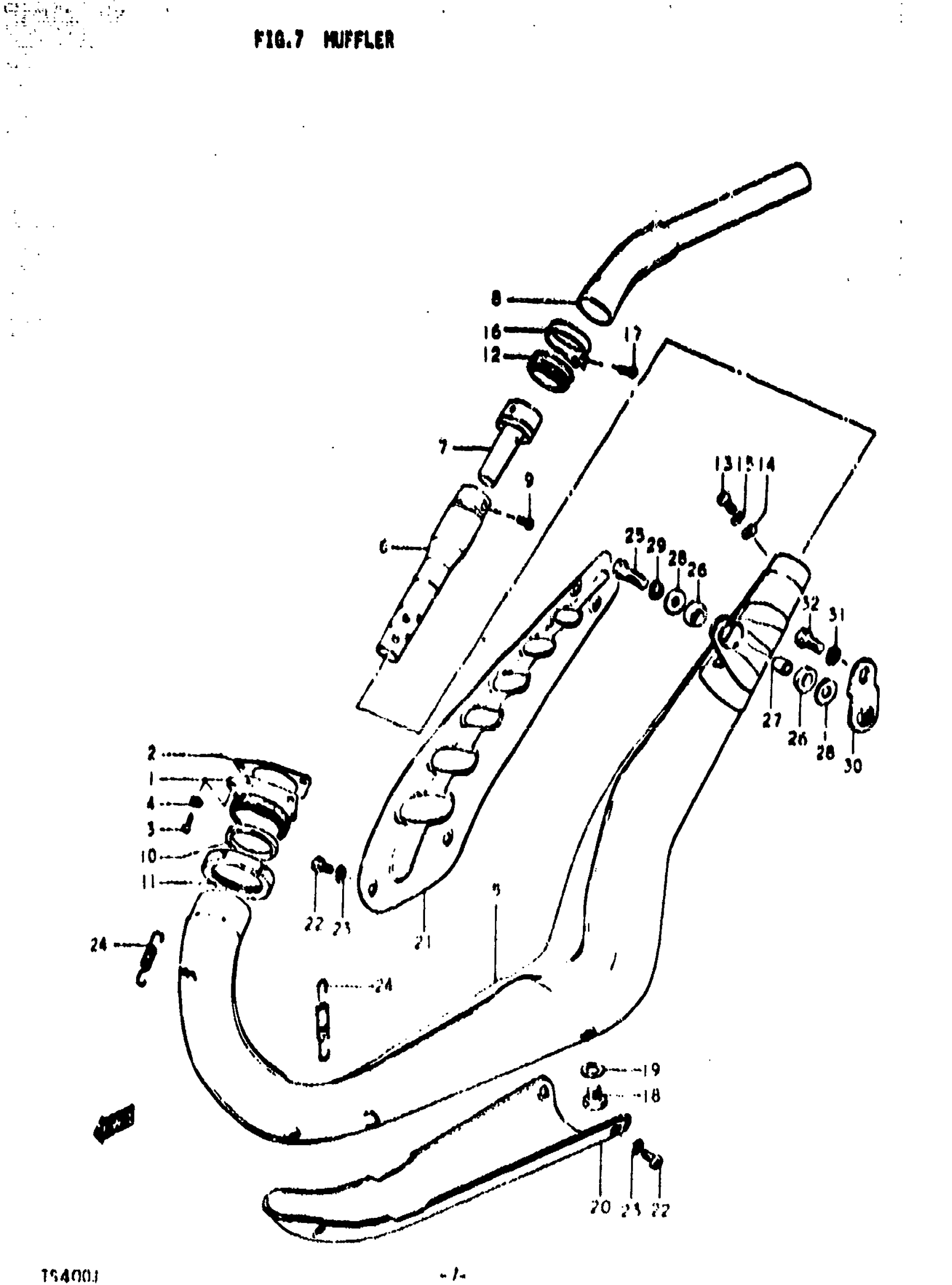

Suzuki TS400 (1972) MUFFLER Diagram

#

Description
Price

1

FLANGE, EXHAUST PIPE

14170-32000

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 14181-16500.

14181-16501

Unavailable

3

SCREW This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE | Includes Item(s) 6 - 9 This part replaces 14301-32600.

14301-32600-H01

Unavailable

6

ARRESTOR, SPARK

14810-32600

Unavailable

7

TUBE, CLEAN OUT

14850-32600

Unavailable

8

PIPE, MUTTLER FALL

14630-32000

Unavailable

9

SCREW This part replaces 02111-05087.

02112-05087

$1.49

10

GASKET, EXHAUST PIPE

14182-16480

Unavailable

11

CLAMP, EXHAUST PIPE | TO 14183-16400

14183-32000

Unavailable

12

GASKET, TALL PIPE

14634-32000

Unavailable

13

SCREW This part replaces 02111-05127.

02112-05127

$1.97

14

GASKET, BATTLE PIPE | 4.5x12x2.5

09168-04002

Unavailable

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

CLAMP (2) | TO 09402-58306 This part replaces 09402-00226.

09402-58306

$4.77

17

SCREW This part replaces 02111-04207.

02112-0420A

$1.49

18

PLUG, MUFFLER DRAIN

09247-10001

$2.20

19

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

20

COVER, MUFFLER LOWER

14782-32000

Unavailable

21

COVER, MUFFLER SIDE | TO 14781-32001

14781-32000

Unavailable

22

SCREW This part replaces 02111-06087.

02112-06087

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

SPRING, MUFFLER

09443-11002

$3.10

25

BOLT This part replaces 01122-08408.

01500-0840A

$2.60

26

CUSHION

09320-12018

Unavailable

27

SPACER (8.2X12.5X23.5) | 8.2x12.5x23.5 This part replaces 09180-08057.

09180-08227

$2.06

28

WASHER (8.5X22X2) | 8.7x22x2 This part replaces 09160-08007.

09160-08127

$2.12

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

BRACKET, MUFFLER HANGAR | TO 14470-32001

14470-32000

Unavailable

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

BOLT, LH | 0x14 This part replaces 09100-08067.

09100-08143

$2.29
