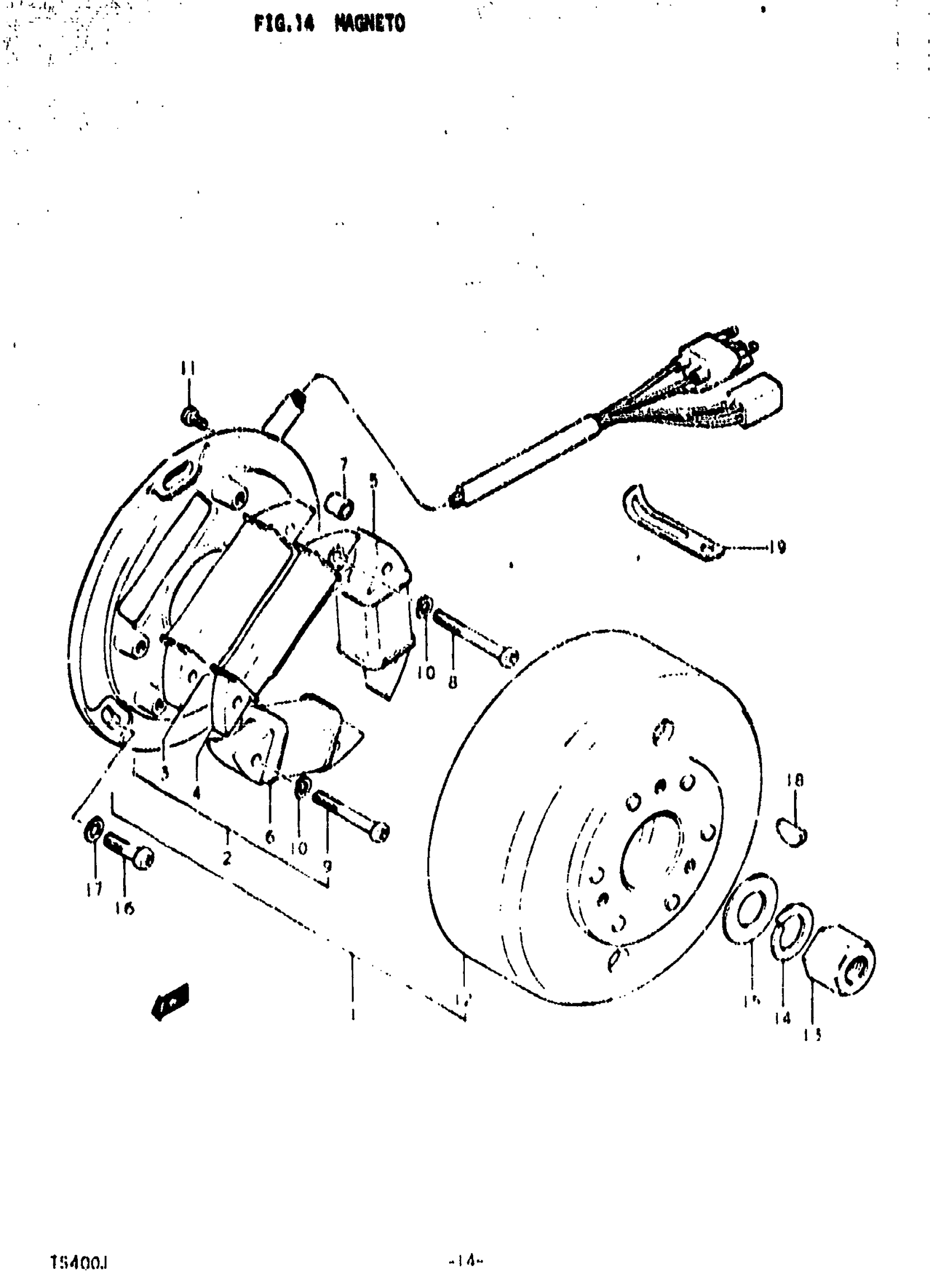

Suzuki TS400 (1972) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | 12V SAPPLY; Includes Item(s) 2 - 12

32100-32020

Unavailable

2

STATOR ASSY, MAGNETO

32101-32020

Unavailable

3

COIL, PRIMARY This part replaces 32140-32020.

32140-32021

$152.07

4

COIL, PULSER

32150-32020

$130.87

5

COIL, CHARGE A

32120-32020

Unavailable

6

COIL, CHARGE B

32121-32020

Unavailable

7

SPACER

32160-32020

Unavailable

8

SCREW This part replaces 02111-05357.

02112-05357

$1.49

9

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

12

ROTOR | TO 32102-32021

32102-32020

Unavailable

13

NUT

09140-14011

Unavailable

14

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

15

WASHER | 14.2x32x2

09160-14015

Unavailable

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13

18

KEY This part replaces 08341-31049.

09420-04008

$3.42

19

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
