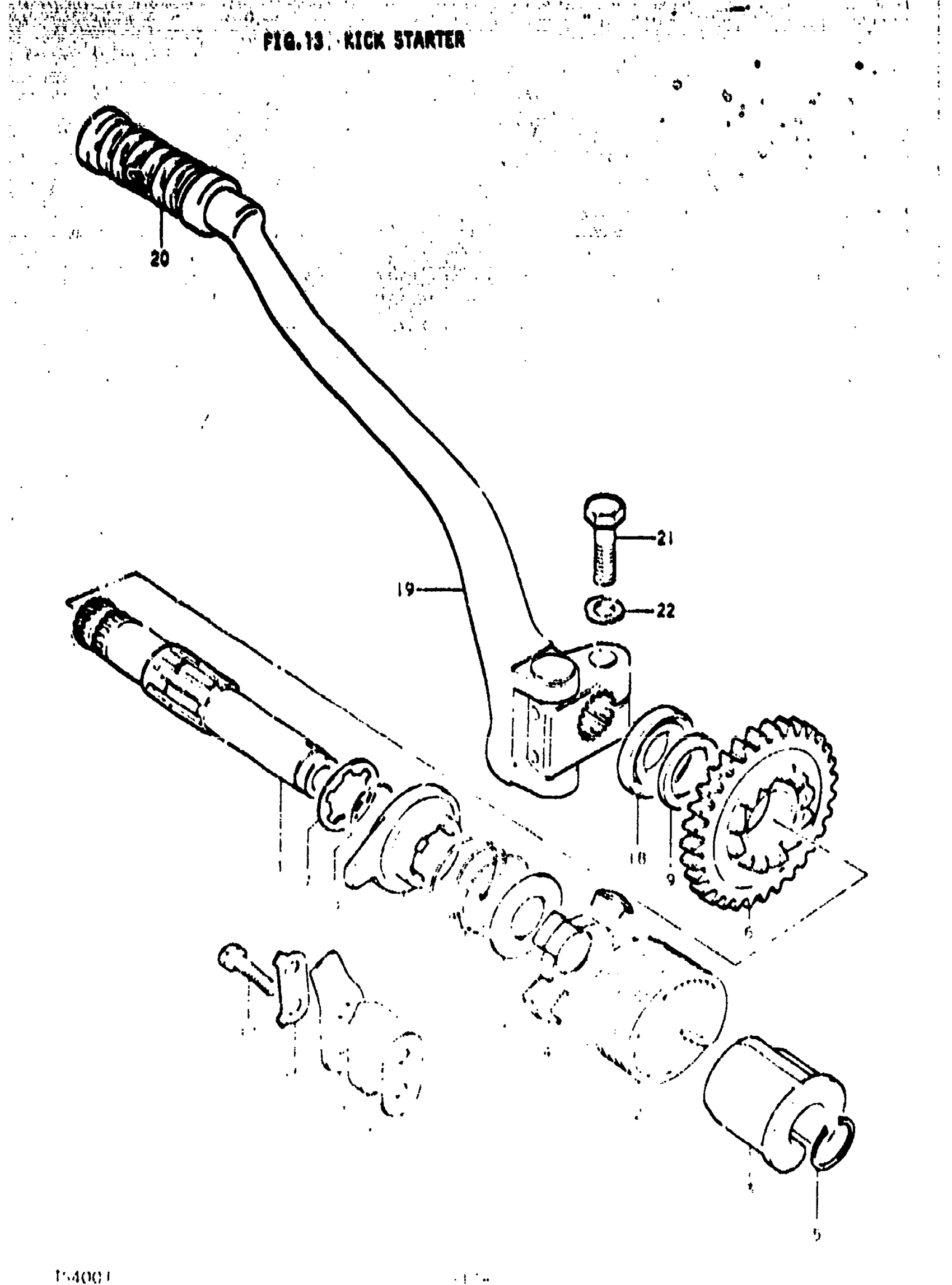

Suzuki TS400 (1972) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | TO 26211-16503

26211-16502

Unavailable

2

SPRING

09448-45003

$6.53

3

GUIDE, SHAFT SPRING This part replaces 26221-16501.

26221-30531

Unavailable

4

HOLDER, SPRING

26222-16500

Unavailable

5

CIRCLIP

09380-17001

$1.98

6

GEAR, KICK STARTER DRIVE | NT:27

26241-16500

Unavailable

7

WASHER | 18.5x29x1

09167-22007

Unavailable

8

CIRCLIP

09380-22003

$1.92

9

THRUST WASHER | 20x29x3

09160-20008

Unavailable

10

STARTER, KICK This part replaces 26231-30000.

26231-22A10

$63.88

11

SPRING

09440-32002

$2.27

12

THRUST WASHER | 17x34x1.5

08211-17342

$2.72

13

GUIDE, KICK STARTER

26232-16500

Unavailable

14

STOPPER, KICK STARTER

26250-16500

Unavailable

15

WASHER

09169-06009

Unavailable

16

WASHER

09169-06008

Unavailable

17

BOLT This part replaces 01112-06258.

01500-06257

$1.97

18

OIL SEAL (20X37X7) | 16.8x37x7

09283-20025

$5.64

19

LEVER ASSY, KICK STARTER | Includes Item(s) 20 This part replaces 26300-16502.

26300-16503

Unavailable

20

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

21

BOLT This part replaces 01122-10308.

01500-1030A

$3.16

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
