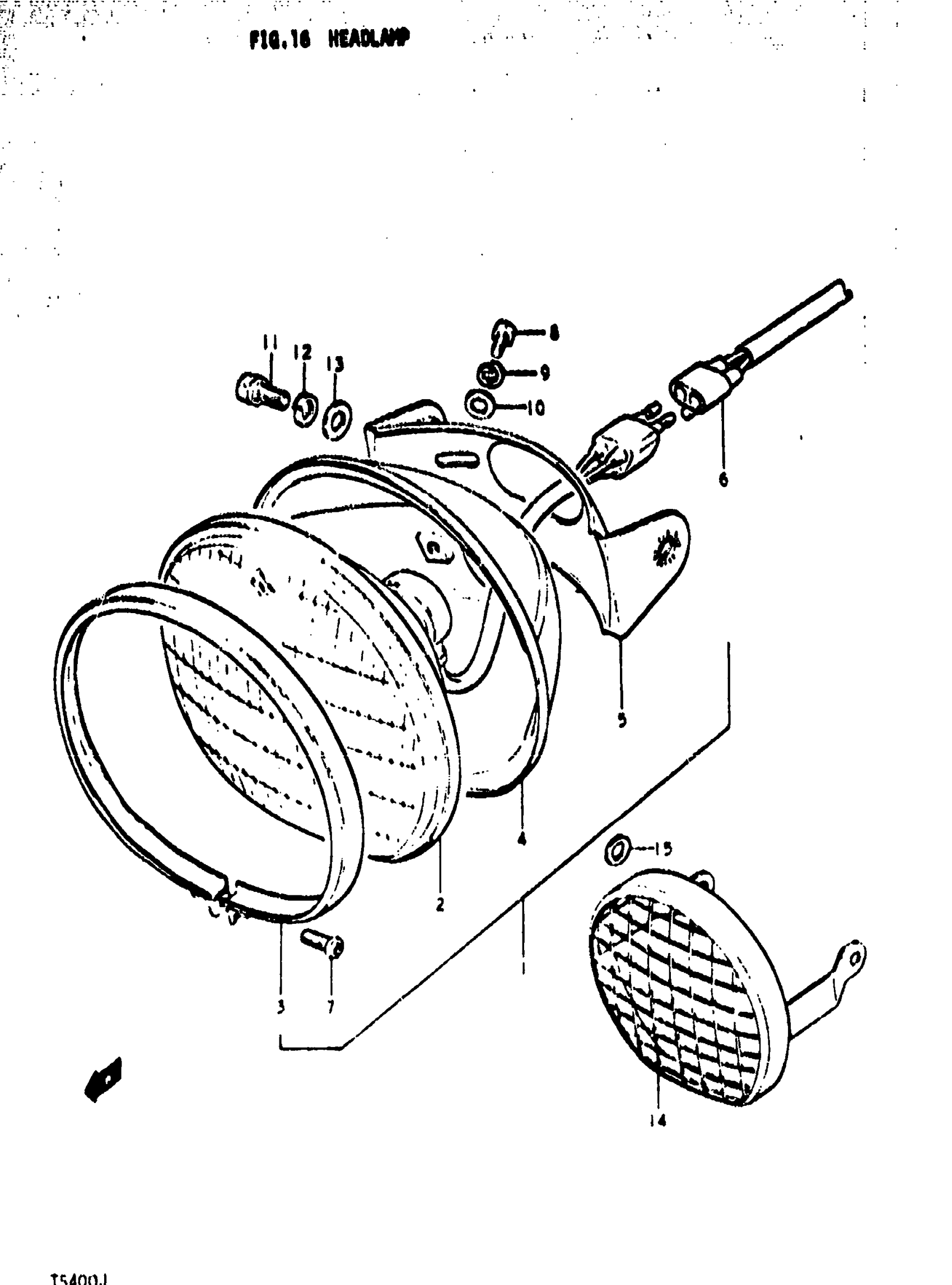

Suzuki TS400 (1972) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 10

35100-18610

Unavailable

2

UNIT | 12V, 35/25W

35121-18610

Unavailable

3

RIM

35127-20610

Unavailable

4

HOUSING

35131-20610

Unavailable

5

BRACKET

35151-20610

Unavailable

6

WIRING HARNESS

35175-18610

Unavailable

7

SCREW This part replaces 02111-04107.

02112-04107

$1.55

8

BOLT This part replaces 01112-06108.

01500-06107

$2.06

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

11

NO DESCRIPTION AVAILABLE This part replaces 01221-10207.

01204-10207

Unavailable

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

PROTECTOR, HEADLAMP | OPT

48510-30700

Unavailable

15

WASHER | OPT This part replaces 08322-21108.

08322-01107

$2.15
