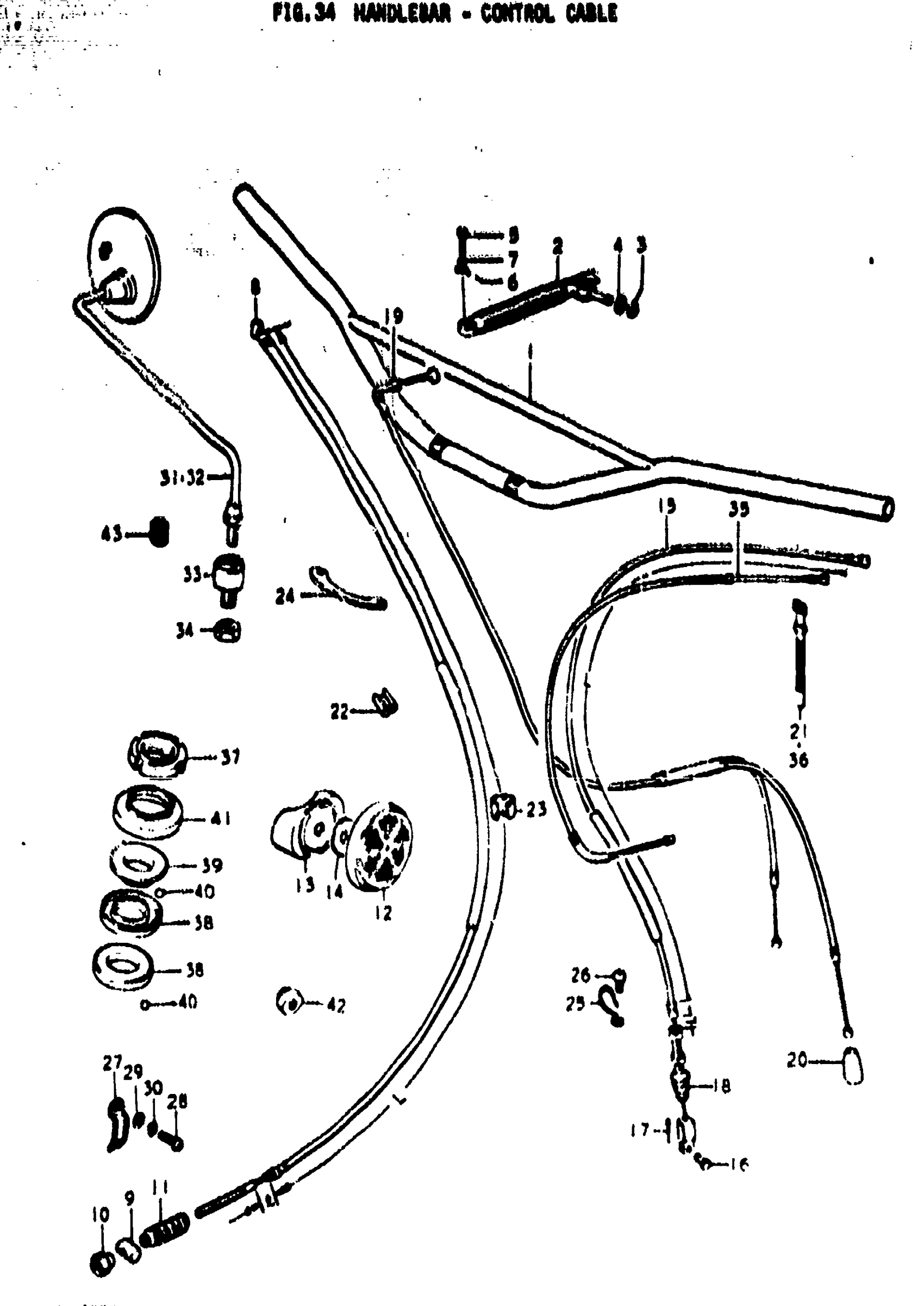

Suzuki TS400 (1972) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR

56110-30000

Unavailable

2

DAMPER ASSY, HANDLE

51700-32000

Unavailable

3

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

BOLT This part replaces 01122-08308.

01500-08307

$3.04

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

CABLE, FRONT BRAKE | TO 58110-30001 This part replaces 58110-30000.

58110-30002

Unavailable

9

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

10

.NUT This part replaces 09150-06001.

09150-06010

$3.10

11

DUST SEAL, BRAKE CABLE

09287-05001

Unavailable

12

REFLEX REFLECTOR FRONT This part replaces 35950-31010.

35950-49080

$17.24

13

SPACER

35995-29000

Unavailable

14

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

15

CABLE,CLUTCH | L:940, L:136.5 TO 58200-32100 This part replaces 58200-16501.

58200-32103

Unavailable

16

COTTER PIN

09200-06011

Unavailable

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

DUST SEAL

09287-10001

Unavailable

19

CABLE,THROTTLE | TO 58300-32001 This part replaces 58300-32000.

58300-32004

Unavailable

20

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

21

CLAMP This part replaces 09407-14301.

09407-18302

$2.28

22

CLIP

09408-00001

Unavailable

23

CLIP

09408-00002

$2.30

24

GUIDE, CABLE

58621-28000

Unavailable

25

CLIP, CLUTCH CABLE

36619-28000

Unavailable

26

SCREW This part replaces 02112-06128.

02112-06127

$1.84

27

CLAMP, CABLE

09403-06301

Unavailable

28

SCREW This part replaces 02112-06128.

02112-06127

$1.84

29

WASHER This part replaces 08322-21068.

08322-01067

$2.13

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

MIRROR ASSY,RR | 8SCREW This part replaces 56500-31010.

56500-23412

$70.29

32

MIRROR ASSY,RR | 8SCREW This part replaces 56600-31010.

56600-23412

$82.68

33

CUSHION, REAR VIEW MIRROR | 8SCREW

56700-32000

Unavailable

34

NUT This part replaces 08311-31088.

08310-00087

$2.13

35

CABLE, DECOMPRESSOR

58910-32000

Unavailable

36

BAND, WIRING HARNESS

09407-12402

$3.04

37

NUT, STEERING STEM

51631-28000

$17.37

38

RACE, INNER, LOWER | TO 51611-33002 This part replaces 51611-33001.

51611-33002

$13.81

39

OUTER RACE, STEERING

51621-30001

Unavailable

40

STEEL BALL

06111-08003

$1.49

41

DUST SEAL

51643-30000

Unavailable

42

CAP, FRONT TURN SIGNAL HOLE

35698-32000

Unavailable

43

SPACER | 8SCREW->10SCREW

56741-31700

Unavailable
