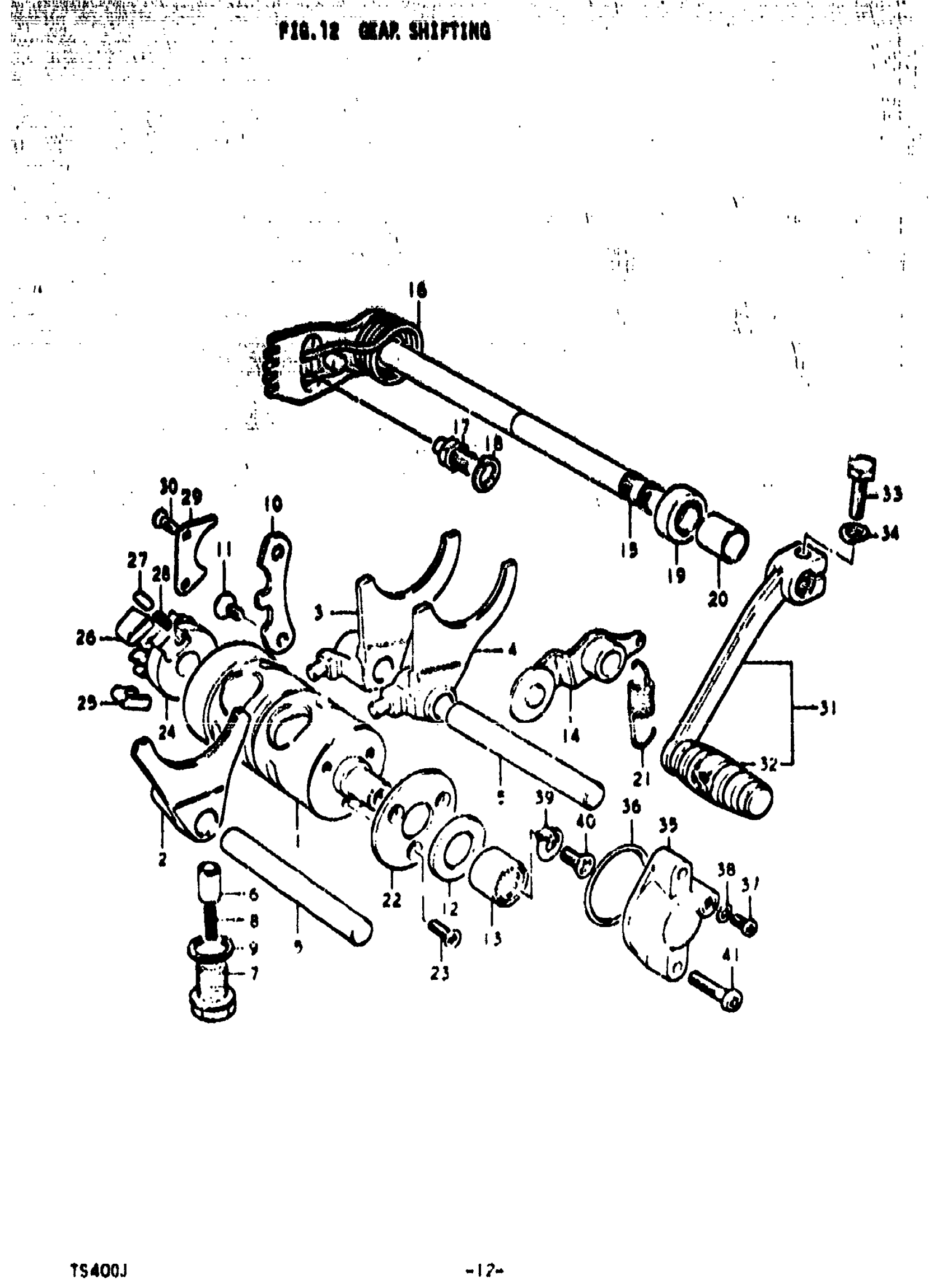

Suzuki TS400 (1972) GEAR SHIFTING Diagram

#

Description
Price

1

CAN, GEAR SHIFTING | TO 25310-16501

25310-16500

Unavailable

2

FORK, 3RD DRIVE GEAR

25211-16500

Unavailable

3

FORK, 4TH DRIVEN GEAR | TO 25221-16501

25221-16500

Unavailable

4

FORK, 6TH DRIVEN GEAR

25231-16500

Unavailable

5

SHAFT, GEAR SHI This part replaces 25411-16400.

25411-48001

Unavailable

6

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

$10.23

7

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

8

SPRING This part replaces 09440-05010.

09440-05018

$1.84

9

GASKET | 15.7x19.5x2

09168-14004

$1.83

10

GUIDE, CAM

25341-11000

Unavailable

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

THRUST WASHER | 12x25x2

08211-12253

Unavailable

13

BEARING

09263-12009

Unavailable

14

STOPPER, CAM

25350-16400

Unavailable

15

SHAFT, GEAR SHIFTING (W=33) | TO 25510-16501

25510-16500

Unavailable

16

SPRING

09444-26001

$5.88

17

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

20

CUSHION, DRIVE CHAIN | NYLON

09320-13001

Unavailable

21

SPRING

09443-09004

Unavailable

22

PLATE, CAM STOPPER This part replaces 25381-20000.

25381-20001

Unavailable

23

.SCREW This part replaces 02121-04127.

02122-0412A

$1.93

24

GEAR, CAM DRIVEN (GEAR OD=28) | USED WITH 25510-16501

25322-20001

Unavailable

25

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

26

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

27

PIN

09261-05003

$1.54

28

SPRING

09440-04003

$1.54

29

LIFTER, PAWL

25331-16500

Unavailable

30

SCREW This part replaces 02122-06128.

02122-06127

$1.84

31

LEVER ASSY,GEAR | Includes Item(s) 32 This part replaces 25600-16500.

25600-16521

$49.59

32

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

33

BOLT This part replaces 01112-06208.

01500-06207

$2.28

34

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

35

SWITCH, GEAR SHIFTING

37721-15002

Unavailable

36

O RING

09280-28002

$2.08

37

SCREW This part replaces 02111-03048.

02112-03047

$2.15

38

WASHER This part replaces 08322-21038.

08322-01037

$1.93

39

CONTACT, SWITCH This part replaces 37711-05100.

37711-05101

$4.21

40

SCREW This part replaces 02122-06128.

02122-06127

$1.84

41

SCREW This part replaces 02111-05207.

02112-05207

$1.97
