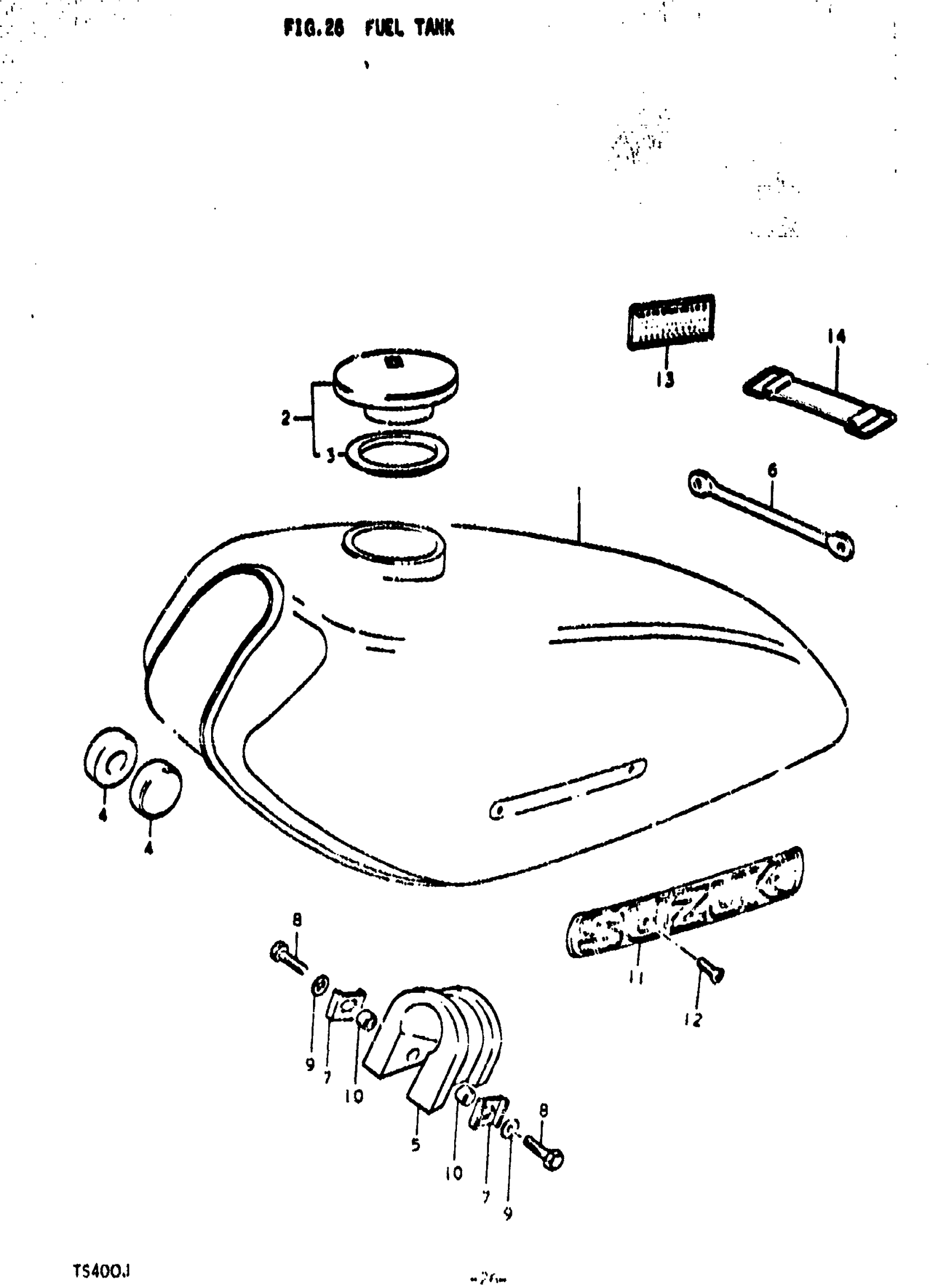

Suzuki TS400 (1972) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | TO 44100-30880-185

44100-30860-542

Unavailable

2

CAP, FUEL TANK | Includes Item(s) 3 This part replaces 44210-11000.

44210-36200

Unavailable

3

GASKET

44248-11000

Unavailable

4

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

5

CUSHION, FUEL TANK REAR

44541-30000

Unavailable

6

BAND

09462-00057

Unavailable

7

PLATE, REAR CUSHION

44549-30000

Unavailable

8

BOLT This part replaces 01112-06128.

01500-06127

$1.97

9

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

10

SPACER This part replaces 09180-06032.

09180-06246

$2.12

11

EMSLEM

68111-18600

Unavailable

12

SCREW This part replaces 02131-03067.

02122-03067

$1.80

13

BAND, FUEL TANK

44544-32000

Unavailable

14

BAND, FUEL TANK FRONT | OPT

09462-00043

$4.11
