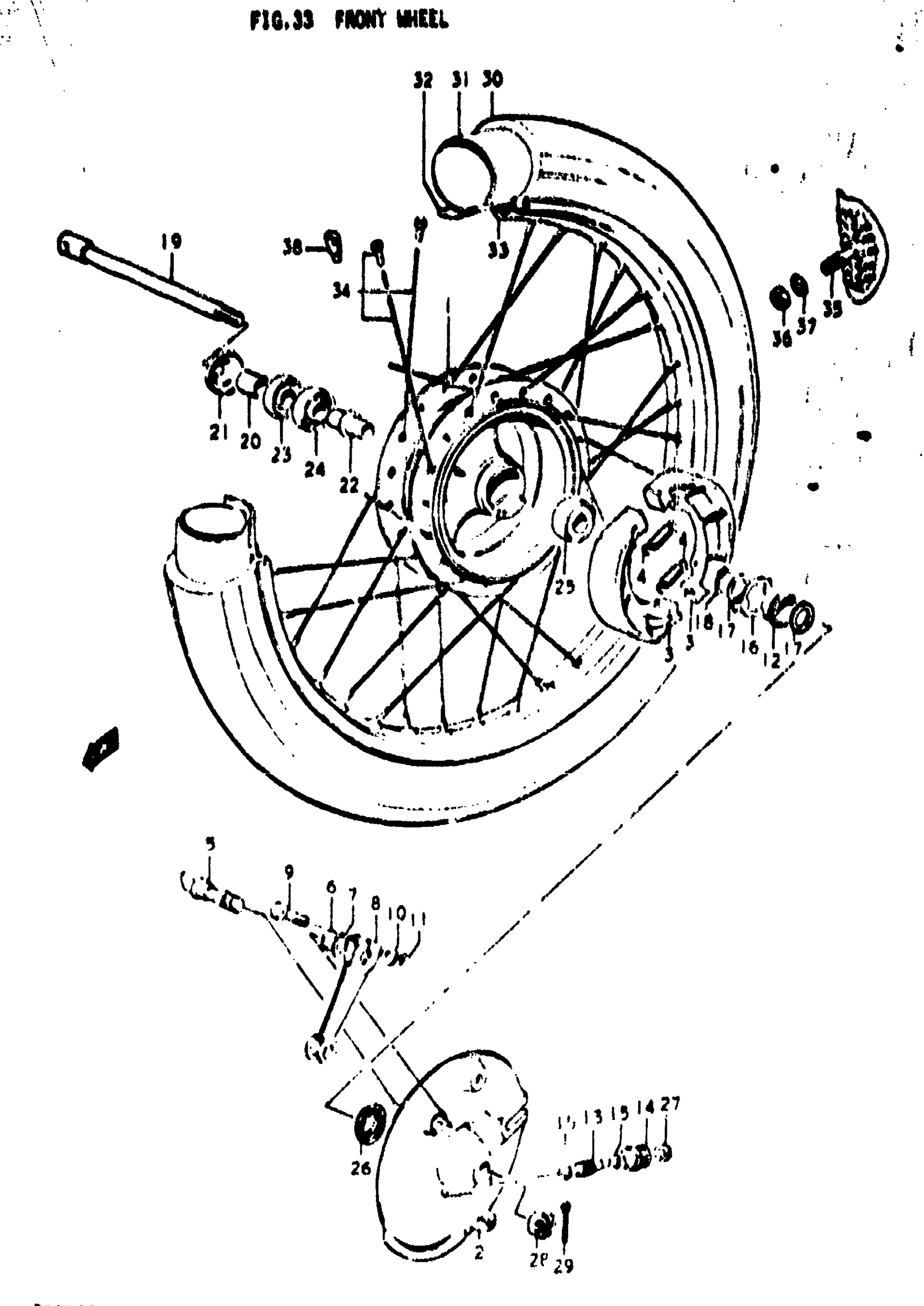

Suzuki TS400 (1972) FRONT WHEEL Diagram

#

Description
Price

1

DRUM

54110-30000

Unavailable

2

PANWL SET | TO 54200-30830

54200-30823

Unavailable

3

SHOE, BRAKE | TO 54410-08002

54410-32000

Unavailable

4

SPRING

55420-30000

$4.48

5

CAM, BRAKE | TO 54440-30001

54440-30000

Unavailable

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

NO DESCRIPTION AVAILABLE This part replaces 54451-30000.

54451-30001

Unavailable

9

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

GEAR, SPEEDOMETER DRIVE | NT:27

54611-15000

Unavailable

13

GEAR, SPEEDOMETER DRIVEN | NT:9

54621-11000

Unavailable

14

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

15

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

17

WASHER

09160-22001

$2.47

18

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

19

AXEL, FRONT

54711-08101

Unavailable

20

SPACER, RH

09180-15001

Unavailable

21

COVER, DUST SEAL

54892-11000

Unavailable

22

SPACER, HUB BEARING

54730-08100

Unavailable

23

OIL SEAL | 22x33x10

09284-22001

Unavailable

24

BEARING

08113-60020

$16.01

25

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

26

SEAL,OIL(26X38X | 22x38x6 This part replaces 09285-26001.

09285-26005

Unavailable

27

OIL SEAL | 48x10x4

09289-06001

$4.58

28

CASTLE NUT

09141-14001

$4.60

29

PIN This part replaces 04111-30308.

04111-3030A

$1.49

30

TIRE | 3.25-19 TO 55100-30600

55100-16411

Unavailable

31

TUBE | 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

32

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

$3.15

33

RIM, WHEEL | 1.60Ax19

55311-30020

Unavailable

34

SPOKE SET

55302-30805

Unavailable

35

STOPPER, BEAD | 1.85B TO 65270-30001

55270-30000

Unavailable

36

NUT

09159-08016

Unavailable

37

WASHER This part replaces 08322-21088.

08322-01087

$2.13

38

BALANCER, WHEEL

55411-30000

Unavailable
