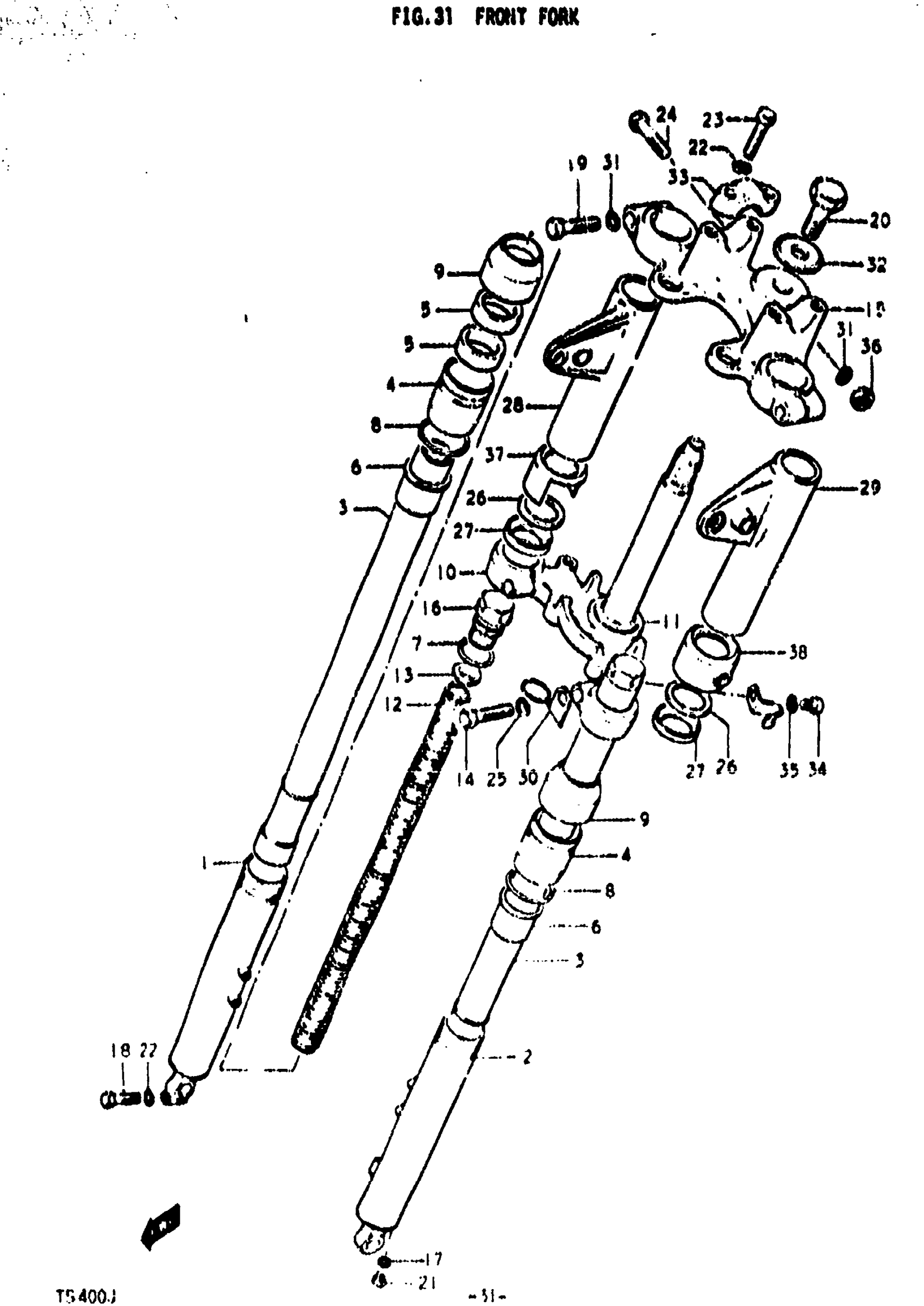

Suzuki TS400 (1972) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | Includes Item(s) 1 - 38

51100-32010

Unavailable

1

OUTER TUBE, RH

51130-30011

Unavailable

2

OUTER TUBE, LH

51140-30011

Unavailable

3

INNER TUBE

51110-30010

Unavailable

4

NUT

51150-16413

Unavailable

5

OIL SEAL | TO 51153-16511 This part replaces 51153-11010.

51153-16511

Unavailable

6

GUIDE, INNER TUBE

51152-30010

Unavailable

7

O RING, INNER TUBE

51117-16310

Unavailable

8

O RING, OUTER TUBE

51154-11010

Unavailable

9

SEAL, DUST

51173-16411

Unavailable

10

STEERING STEM | TO 51410-30601 This part replaces 51410-30010.

51410-30601

Unavailable

11

OUTER RACE

51621-33001

$16.25

12

SPRING

51171-30010

Unavailable

13

GUIDE, SPRING

51172-30010

Unavailable

14

BOLT, INNER TUBE LOWER | TO 51451-28012

51451-28011

Unavailable

15

HEAD, STEERING STEM

51311-30011-019

Unavailable

16

CAP This part replaces 51351-30010.

51351-40210

Unavailable

17

GASKET, DRAIN PLUG

51183-03010

$2.07

18

BOLT This part replaces 01122-08308.

01500-08307

$3.04

19

BOLT, INNER TUBE UPPER | TO 51451-15115

51451-15110

Unavailable

20

BOLT This part replaces 51351-20010.

51351-29400

$31.22

21

NO DESCRIPTION AVAILABLE This part replaces 02111-04081.

02111-04082

Unavailable

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

BOLT This part replaces 01221-08307.

01204-08307

$1.99

24

BOLT

51451-15010

Unavailable

25

LOCK WASHER | TO 51311-30210-019 This part replaces 08321-21128.

08321-01127

$2.06

26

CUSHION, COVER

51553-30010

Unavailable

27

GUIDE, COVER

51558-30010

Unavailable

28

BRACKET, HANDLAMP RH

51530-32010

Unavailable

29

BRACKET, HEADLAMP LH

51540-32010

Unavailable

30

CLIP, CABLE

51453-30011

Unavailable

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

WASHER

51356-22011

Unavailable

33

HOLDER, HANDLEBAR

56211-22011

Unavailable

34

SCREW This part replaces 02112-06108.

02112-06107

$1.49

35

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

36

NUT This part replaces 08312-11108.

08310-00107

$2.19

37

COVER, STEERING STEM RH

51554-30011

Unavailable

38

COVER, STEERING STEM LH

51557-30011

Unavailable
