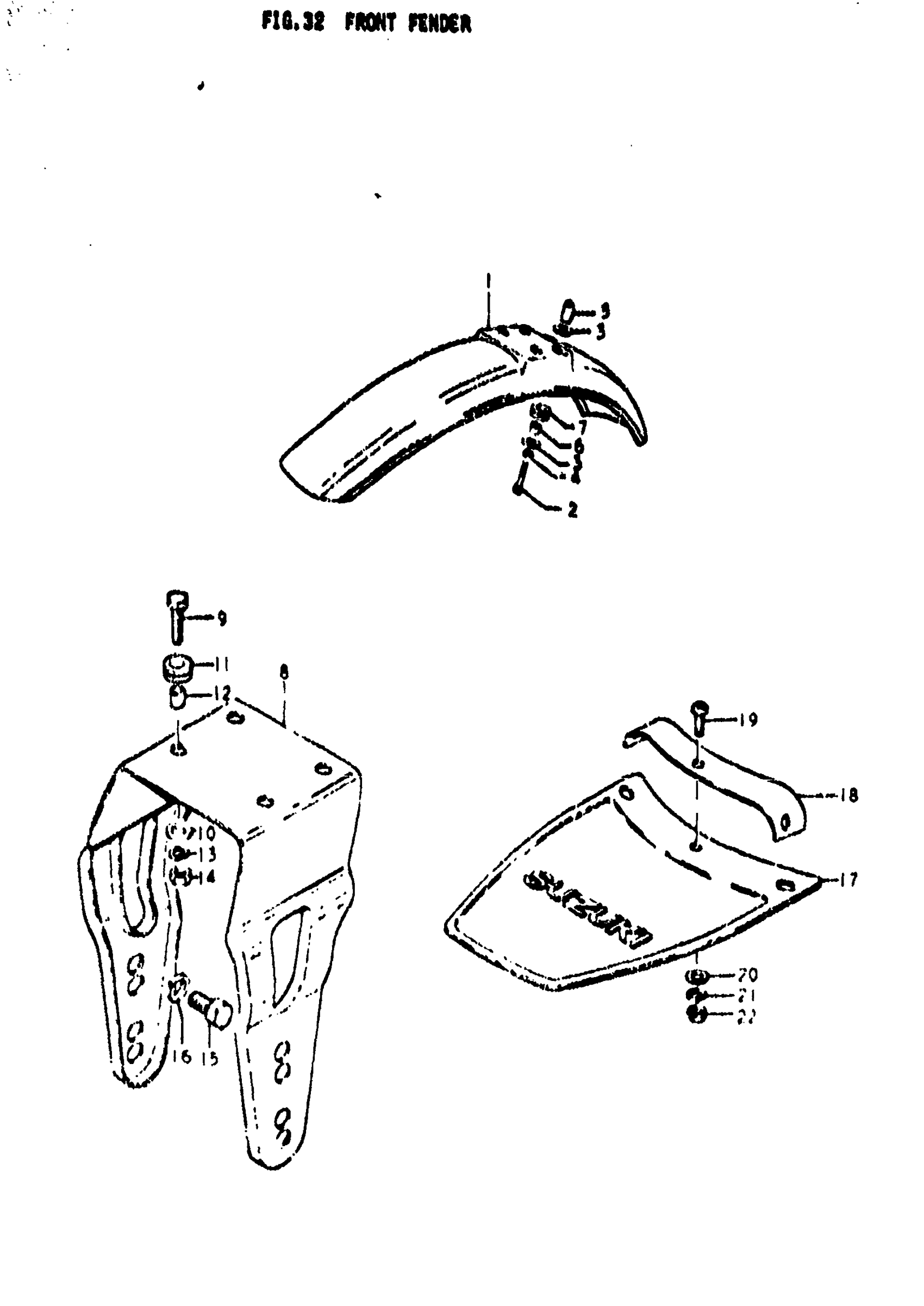

Suzuki TS400 (1972) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TO 53111-28300-185 This part replaces 53111-30600-185.

53111-30600-737

Unavailable

2

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

3

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPACER

09180-08058

Unavailable

6

SPACER This part replaces 09180-06046.

09180-06292

$2.47

7

CUSHION

09320-10003

$2.38

8

BRACE, FRONT FENDER LOWER | OPT

53211-30700

Unavailable

9

BOLT | OPT This part replaces 01112-06208.

01500-06207

$2.28

10

WASHER (6.5X20X1.2) | OPT This part replaces 09160-06027.

09160-06077

$1.91

11

CUSHION (8.5X20X8) | OPT This part replaces 09320-08007.

09320-08510

$1.97

12

SPACER | OPT

09180-06038

$1.98

13

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

14

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

15

BOLT | OPT This part replaces 01122-08128.

01500-08127

$2.62

16

.LOCK WASHER | OPT This part replaces 08321-21088.

08321-01087

$2.13

17

FLAP, MUD | OPT

53411-30000

Unavailable

18

PLATE, MUD FLAP | OPT

53421-30000

Unavailable

19

SCREW | OPT This part replaces 02111-04127.

02112-0412A

$1.49

20

WASHER | OPT This part replaces 08322-21048.

08322-01047

$1.86

21

LOCK WASHER | OPT This part replaces 08321-21048.

08321-0104A

$1.84

22

NUT | OPT This part replaces 08311-11048.

08310-00047

$2.23
