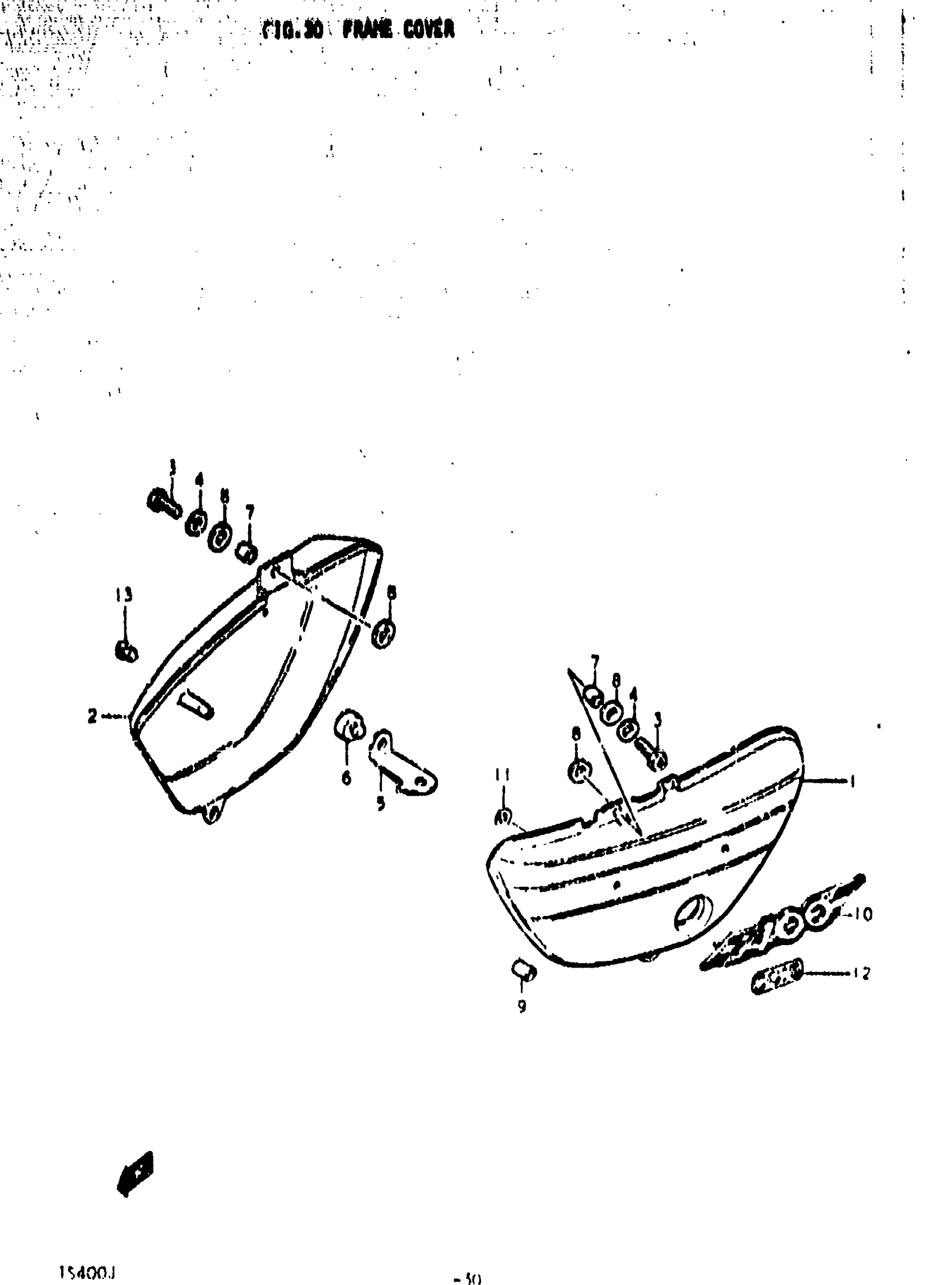

Suzuki TS400 (1972) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME LH | TO 47211-28601-185

47210-32000-626

Unavailable

2

COVER, FRAME RH | TO 47111-28602-185

47110-32000-626

Unavailable

3

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

PLATE, FRAME COVER

47121-32000

Unavailable

6

CUSHION

09321-05010

Unavailable

7

SPACER (6.1X8X9.5) | 6.1x8x9.5 This part replaces 09180-06044.

09180-06248

$2.12

8

CUSHION

09320-07005

$1.93

9

CUSHION

09320-03002

Unavailable

10

EMBLEM, FRAME COVER

68141-32000

Unavailable

11

NUT This part replaces 09148-03004.

09148-03011

$1.96

12

EMBLEM, CCI

68171-26000

$3.59

13

CAP This part replaces 09250-09001.

09250-09008

$1.54
