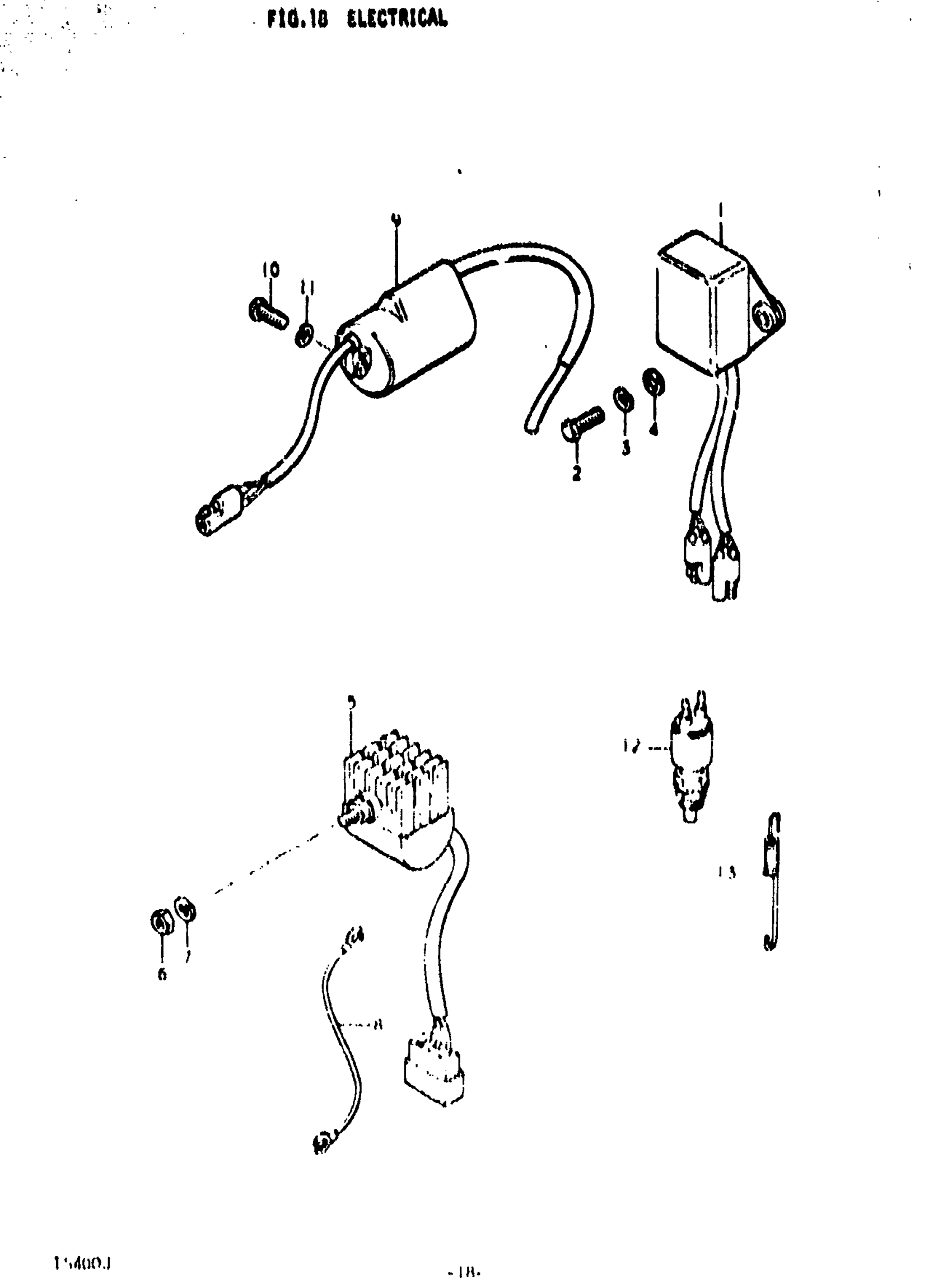

Suzuki TS400 (1972) ELECTORICAL Diagram

#

Description
Price

1

UNIT, C.D. IGNITION

31900-32020

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.65

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

RECTIFIER ASSY | TO 32800.31021 USED WITH 36852-26800 This part replaces 32800-31020.

32800-31021

Unavailable

6

.NUT This part replaces 08311-11068.

08310-00067

$2.13

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

LEAD WIRE, ENGINE (-) This part replaces 36852-26600.

36851-02331

Unavailable

9

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$115.17

10

SCREW This part replaces 02111-05207.

02112-05207

$1.97

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

SWITCH ASSY, BRAKE LAMP

37610-53011

$30.75

13

SPRING This part replaces 09443-06015.

09443-06031

$4.13
