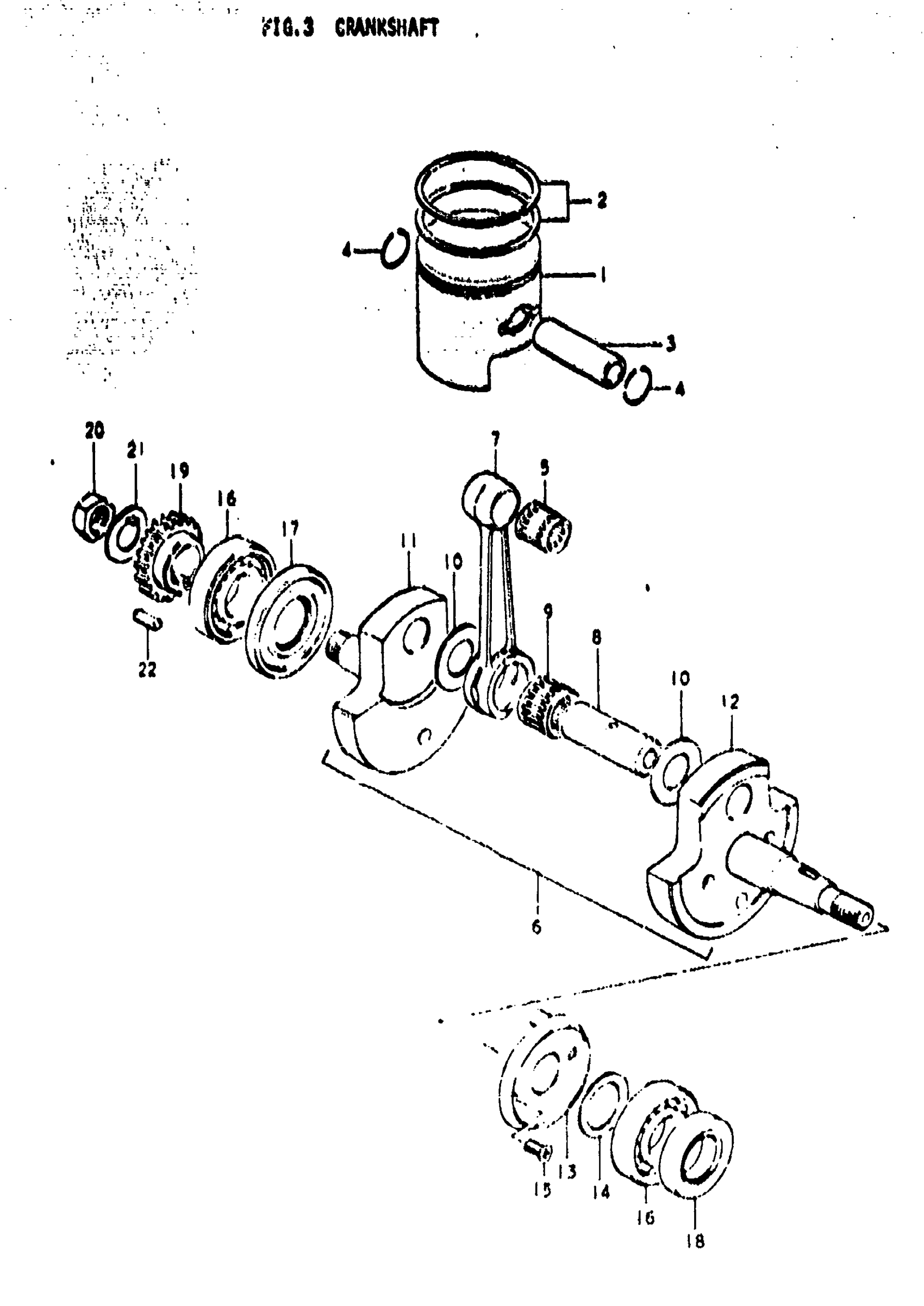

Suzuki TS400 (1972) CRANKSHAFT Diagram

#

Description
Price

1

PISTON | TO 12110-16501 This part replaces 12110-32000.

12110-16501

Unavailable

1

PISTON | 08:0.5 TO 12110-16730

12110-16720

Unavailable

2

RING SET, PISTON

12140-16510

Unavailable

2

NO DESCRIPTION AVAILABLE | 06:0.5 This part replaces 12140-16700.

12140-16510-050

Unavailable

3

PIN This part replaces 12151-16500.

12151-32400

Unavailable

4

CIRCLIP This part replaces 09381-20001.

09381-20004

$1.65

5

OIL SEAL,RH This part replaces 09263-20012.

09263-20034

$19.38

6

CRANKSHAFT SET | Includes Item(s) 7 - 12

12001-32803

Unavailable

7

CONNECTING ROD

12161-16500

Unavailable

8

PIN, CRANK

12211-16500

Unavailable

9

BEARING

09263-26002

Unavailable

10

THRUST WASHER | 26x44x1

09160-26001

Unavailable

11

CRANKSHAFT, RH

12221-32000

Unavailable

12

CRANKSHAFT, LH

12261-32000

Unavailable

13

PLATE, OIL GUIDE

12511-16500

Unavailable

14

WASHER

08212-30403

$3.85

15

SCREW This part replaces 02121-05108.

02122-05107

$1.49

16

BEARING, RH (30x72x19) This part replaces 08113-63060.

09262-30077

$58.43

17

OIL SEAL, RH | TO 09280-40004 This part replaces 09283-40004.

09289-40004

Unavailable

18

OIL SEAL 30X55X This part replaces 09283-30011.

09283-30L03

$36.08

19

GEAR, PRIMARY DRIVE | NT:23

21111-32000

Unavailable

20

NUT

09140-20007

Unavailable

21

WASHER | 20.5x43x1

09166-20004

Unavailable

22

KEY

09421-07001

Unavailable
