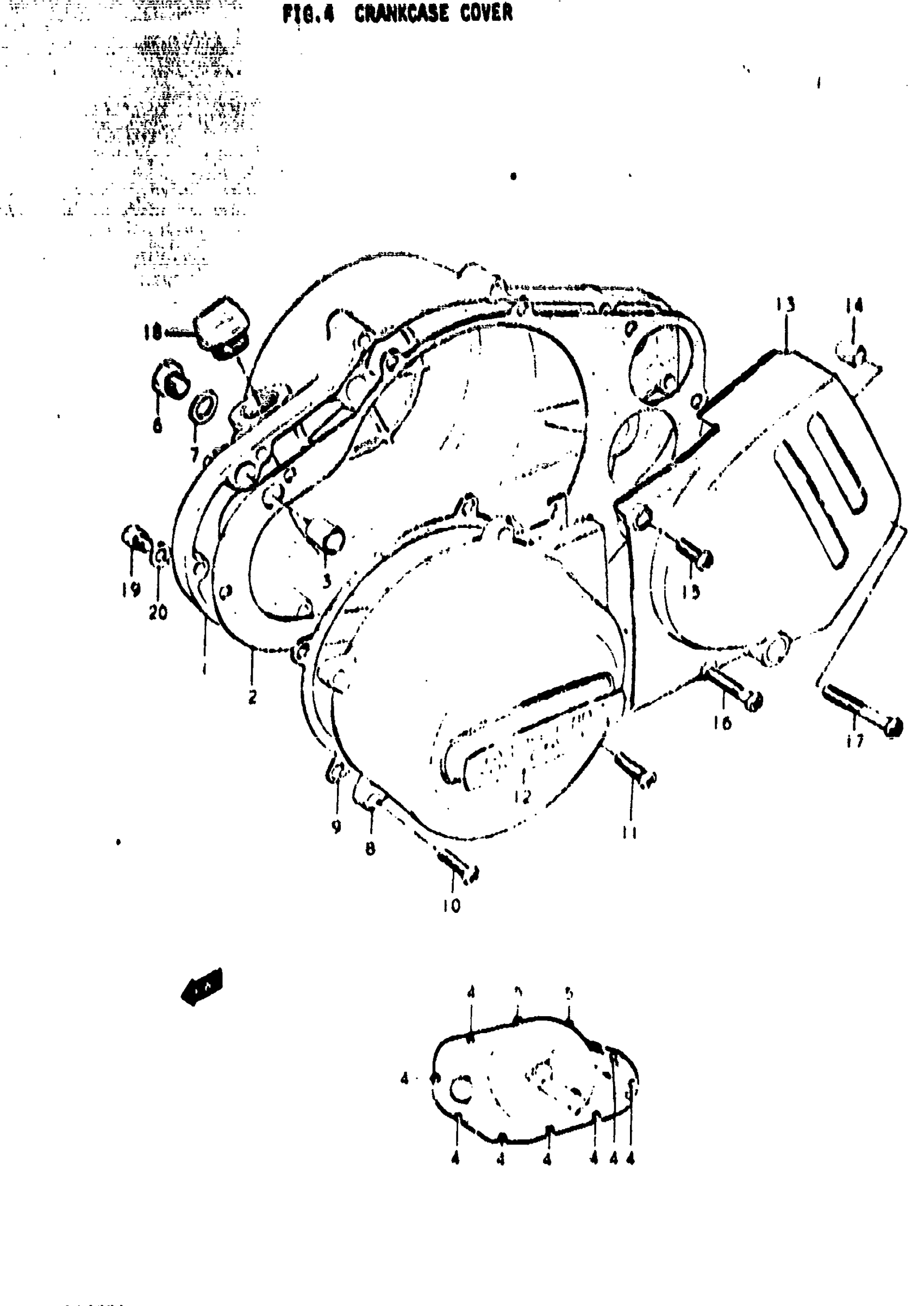

Suzuki TS400 (1972) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | BLACK

11341-16500

Unavailable

2

GASKET

11482-16500

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06307

$1.97

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

PLUG, OIL DRAIN

09247-10001

$2.20

7

GASKET | 10x14.2x2

09168-10002

$2.13

8

COVER, MAGNETO | BLACK

11351-16500

Unavailable

9

GASKET

11483-16500

Unavailable

10

SCREW This part replaces 02112-06208.

02112-06207

$1.78

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

EMBLEM, MAGNETO COVER | TO 68233-32000

68233-16500

Unavailable

13

COVER, ENGINE SPROCKET

11361-16500

Unavailable

14

DOWEL PIN

04211-09129

$1.65

15

SCREW This part replaces 02112-06258.

02112-06257

$1.78

16

SCREW This part replaces 02112-06358.

02112-06357

$1.78

17

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

18

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

19

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

20

GASKET | 6.2x11x1

09168-06001

$1.49
