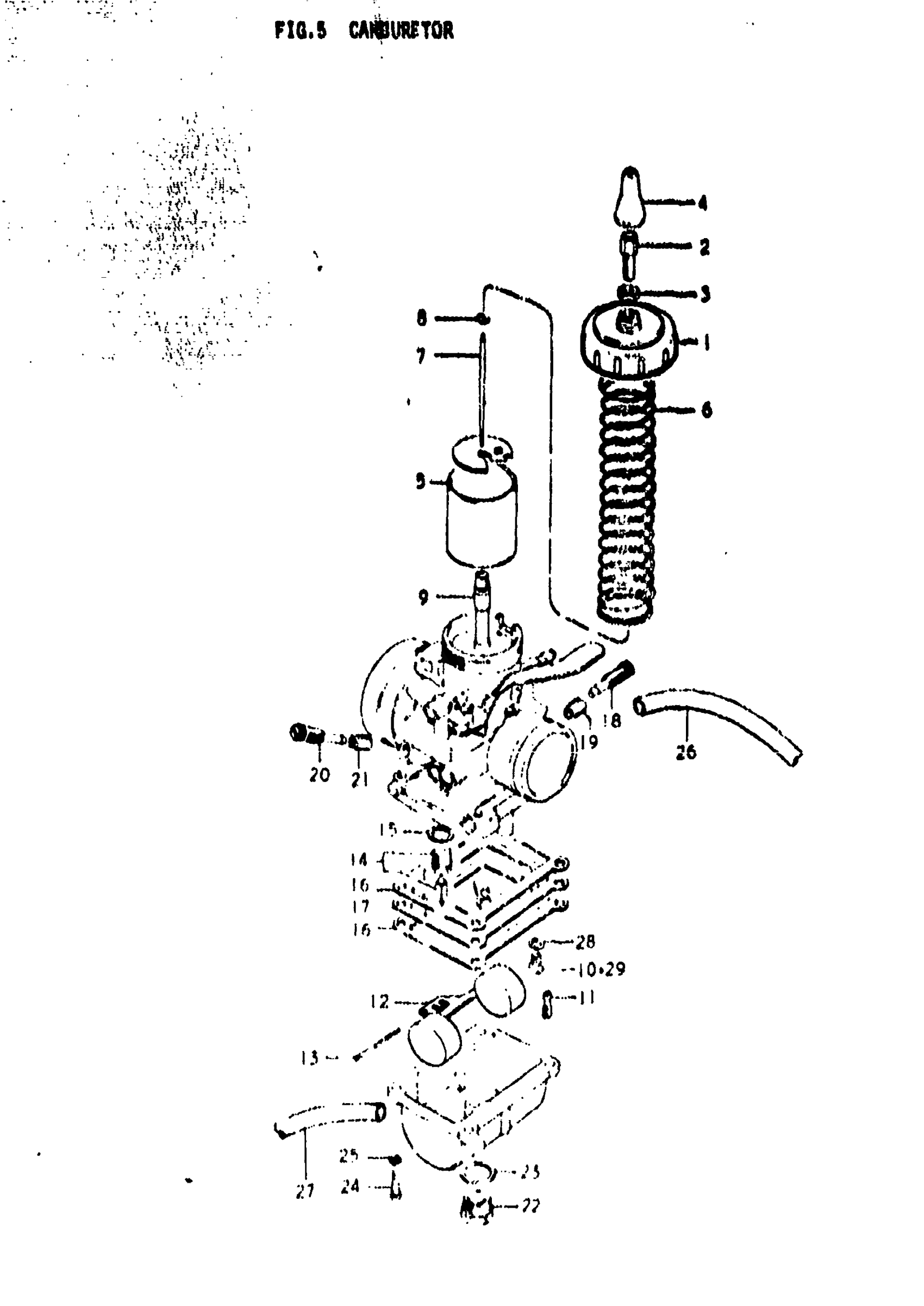

Suzuki TS400 (1972) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | FROM 13200-32610; Includes Item(s) 1 - 28

13200-32012

Unavailable

1

TOP, MIXING CHAMBER

13265-16600

Unavailable

2

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

3

NUT, CABLE ADJUSTER

13661-16600

$4.64

4

BOOT, CABLE ADJUSTER | TO 13681-16601

13681-16600

$3.77

5

THROTTLE VALVE | CA:3.0

13551-32011

Unavailable

6

SPRING This part replaces 13573-16600.

13573-16601

Unavailable

7

NEEDLE, JET | 6DP5

13383-32010

Unavailable

8

CLIP, NEEDLE

13394-10010

$5.45

9

JET, NEEDLE | Q-6

09494-00101

Unavailable

10

JET, MAIN (210) | #210 This part replaces 09491-42001.

09491-42005

Unavailable

11

JET, PILOT | #40

09492-40004

$10.05

12

FLOAT

13252-32010

Unavailable

13

PIN, FLOAT

13254-11010

Unavailable

14

VALVE ASSY, NEEDLE

13370-16600

Unavailable

15

GASKET, VALVE SEAT

13392-16600

$1.94

16

GASKET, FLOAT CHAMBER

13251-16510

Unavailable

17

PLATE, FLOAT CHAMBER | BOWL TYPE

13259-16510

Unavailable

18

SCREW, THROTTLE STOP

13267-16601

Unavailable

19

SPRING, STOP SCREW

13268-03110

$5.45

20

SCREW, PILOT AIR

13269-15010

Unavailable

21

SPRING

13268-01010

$5.28

22

DRAIN PLUG

13247-16600

Unavailable

23

GASKET, DRAIN PLUG

13249-16600

Unavailable

24

SCREW

02111-05187

Unavailable

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

26

HOSE (3.5X6.5X600) This part replaces 13686-16600.

09351-35653-600

$4.64

27

HOSE (3.5X6.5X600) This part replaces 13684-16600.

09351-35653-600

$4.64

28

WASHER

13382-03110

$2.80

29

JET, MAIN (180) | #180 OPT This part replaces 09491-36003.

09491-36006

Unavailable

29

JET, MAIN (190) | #190 OPT This part replaces 09491-38003.

09491-38009

Unavailable

29

JET, MAIN (200) | #200 OPT This part replaces 09491-40004.

09491-40006

Unavailable

29

JET, MAIN | #220 OPT This part replaces 09491-44001.

09491-44007

Unavailable

29

JET, MAIN | #230 OPT

09491-46001

$11.57
