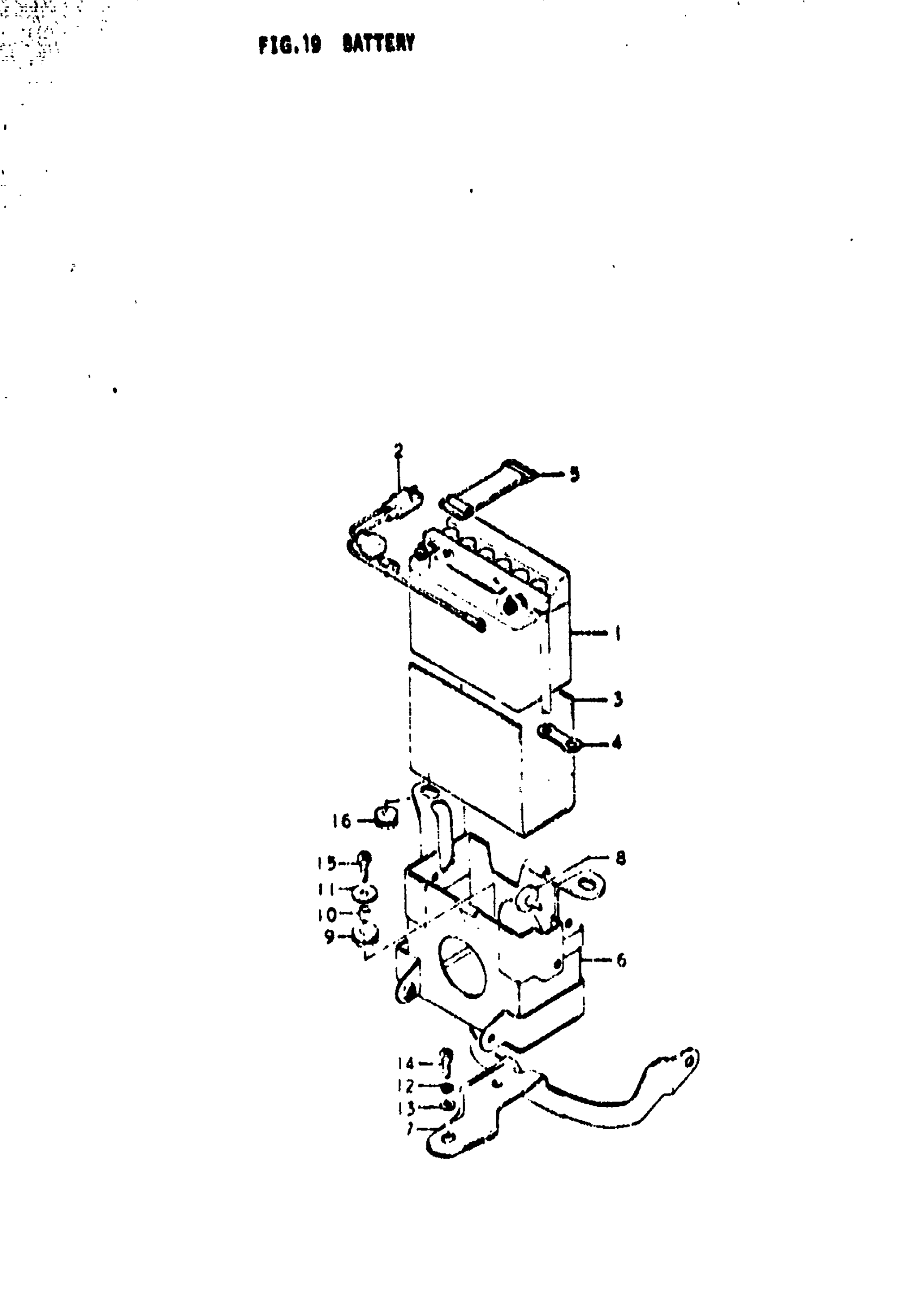

Suzuki TS400 (1972) BATTERY Diagram

#

Description
Price

1

YB5LB BATTERY(Y | 12V, 5AH This part replaces 33610-18010.

33610-35400

$61.57

2

CORD, BATTERY LEAD | FROM 36860-18010

36860-32000

Unavailable

3

PROTECTOR, BATTERY

33651-32000

Unavailable

4

CLAMP, EXHAUST PIPE

09404-07703

Unavailable

5

BAND

09462-00033

$3.20

6

HOLDER, BATTERY

41540-32001

Unavailable

7

BRACKET, BATTERY HOLDER

41620-32000

Unavailable

8

CUSHION

09321-05014

Unavailable

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

SPACER (6.5X9X7) | 8.1x10.5x9 This part replaces 09180-07005.

09180-06259

$2.48

11

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

BOLT

09128-06008

$1.49

15

BOLT This part replaces 09128-06006.

09128-06057

$1.65

16

CUSHION | TO 09320-05006

09320-05002

Unavailable
