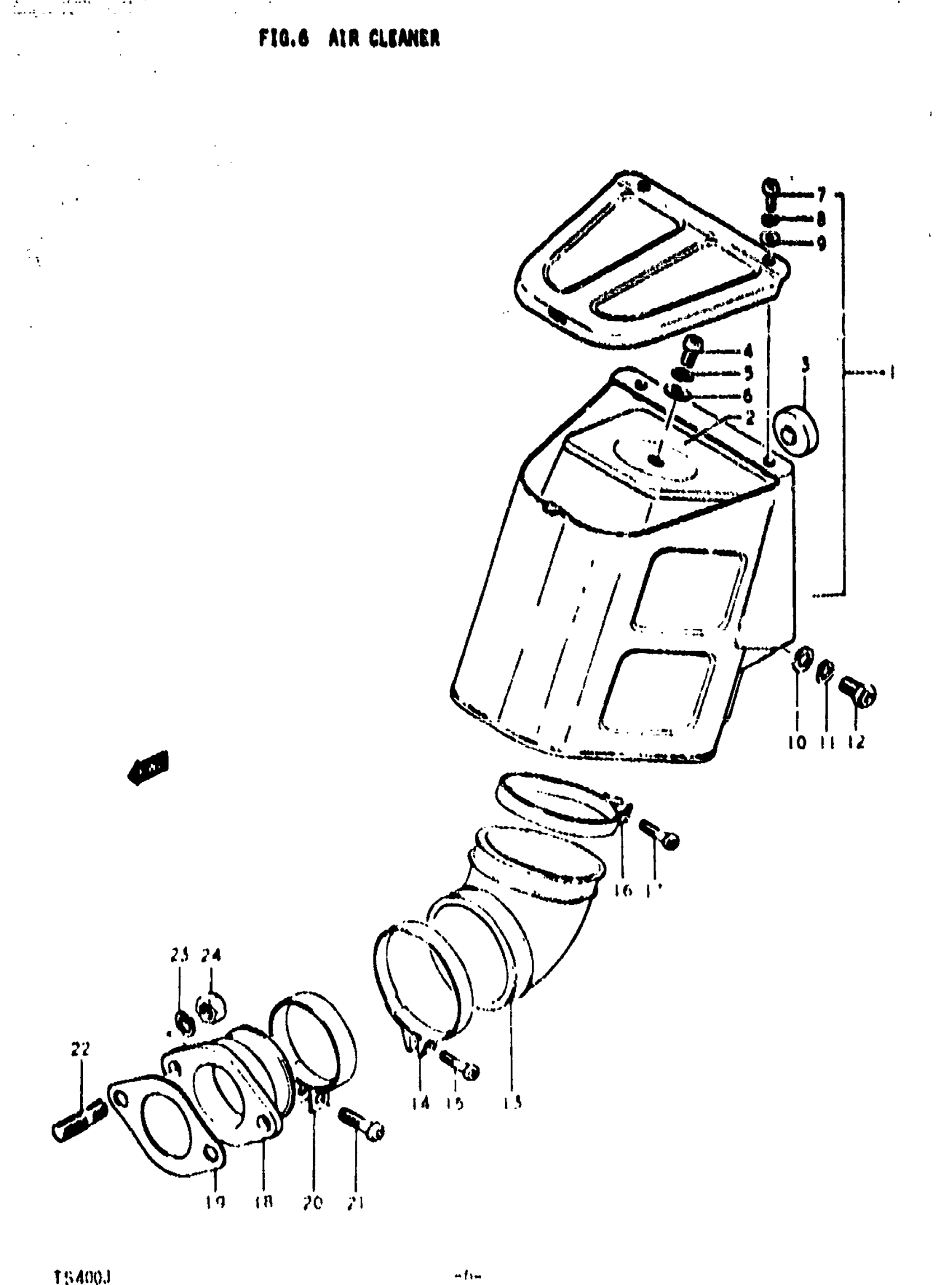

Suzuki TS400 (1972) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 9

13700-32011

Unavailable

2

FILTER

13781-32011

Unavailable

3

DAMPER

13766-16410

Unavailable

4

SCREW This part replaces 02111-05087.

02112-05087

$1.49

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

WASHER This part replaces 08322-21058.

08322-01057

$2.13

7

SCREW This part replaces 02111-04087.

02112-04087

$1.49

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

13

HOSL, AIR INTEL | TO 13881-32001

13881-32600

Unavailable

14

CLAMP | TO 09402-06304

09402-00235

Unavailable

15

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

16

CLAMP (1) | TO 09402-68306 This part replaces 09402-00237.

09402-68306

$4.69

17

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

18

PIPE, INTAKE

13110-16500

Unavailable

19

GASKET, INTAKE PIPE

13125-15000

Unavailable

20

CLAMP | TO 09402-50346 This part replaces 09402-00246.

09402-52306

$4.91

21

SCREW This part replaces 02111-05207.

02112-05207

$1.97

22

STUD BOLT This part replaces 01421-08168.

01421-0816A

$1.78

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

NUT This part replaces 08312-11088.

08310-00087

$2.13
