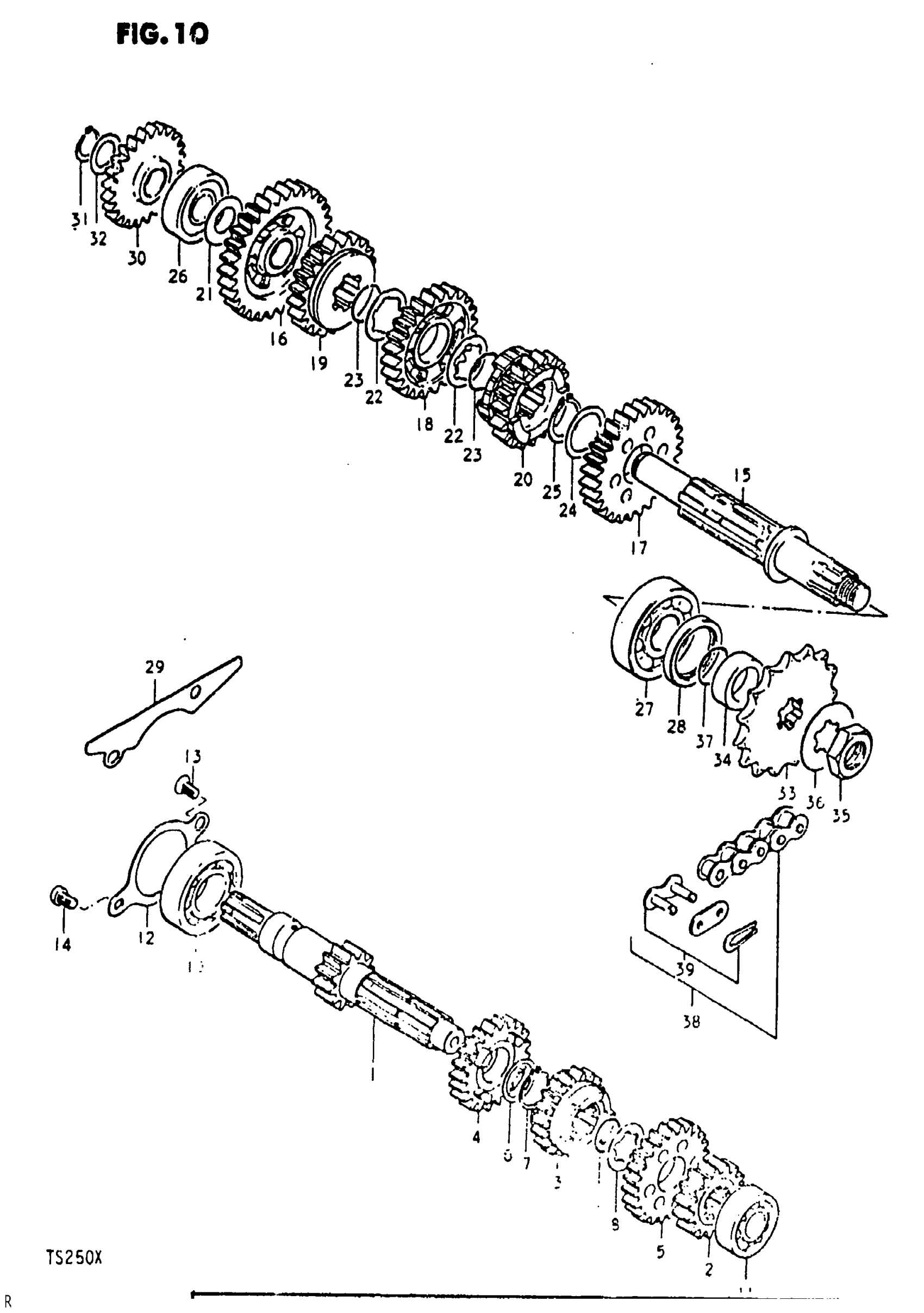

Suzuki TS250 (1981) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:11)

24121-30010

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-30000

Unavailable

3

GEAR, 3RD DRIVE (NT:18)

24231-30100

Unavailable

4

GEAR, 4TH DRIVE (NT:21)

24241-30000

Unavailable

5

GEAR, 6TH DRIVE (NT:23)

24251-30100

Unavailable

6

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

7

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

8

WASHER

09167-22007

Unavailable

9

CIRCLIP

09380-22003

$1.92

10

BEARING (25X52X15)

08143-62057

$24.40

11

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

12

HOLDER, BEARING

24741-30100

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

DRIVESHAFT

24131-30500

Unavailable

16

GEAR, 1ST DRIVEN (NT:30)

24310-30010

Unavailable

17

GEAR, 2ND DRIVEN (NT:27)

24321-30000

Unavailable

18

GEAR, 3RD DRIVEN (NT:23)

24331-30100

Unavailable

19

GEAR, 4TH DRIVEN (NT:21)

24341-30001

Unavailable

20

GEAR, 5TH DRIVEN (NT:19)

24351-30101

Unavailable

21

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

22

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

23

CIRCLIP

09380-25006

Unavailable

24

WASHER

08211-25321

$3.27

25

CIRCLIP

09380-25010

$2.91

26

BEARING

08143-62037

$18.47

27

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

28

OIL SEAL

09283-32003

$7.31

29

PLATE, OIL RESERVOIR

24871-30000

Unavailable

30

GEAR, KICK IDLE (NT:22)

26260-30002

Unavailable

31

CIRCLIP

09380-17001

$1.98

32

WASHER

08211-17241

$2.54

33

SPROCKET, ENGINE (NT:15) | STD

27511-30500

Unavailable

33

SPROCKET,ENGINE | OPT This part replaces 27511-30700.

27510-32C01

$59.60

33

SPROCKET, ENGINE (NT:16) | OPT

27511-30710

Unavailable

34

SPACER

09180-22007

Unavailable

35

NUT

09140-18006

$4.83

36

WASHER

09167-22012

$1.54

37

O RING

09280-22003

$1.72

38

CHAIN, DRIVE (525x104L->100L) | Includes Item(s) 39

27600-16410

Unavailable

39

JOINT

27620-30110

Unavailable
