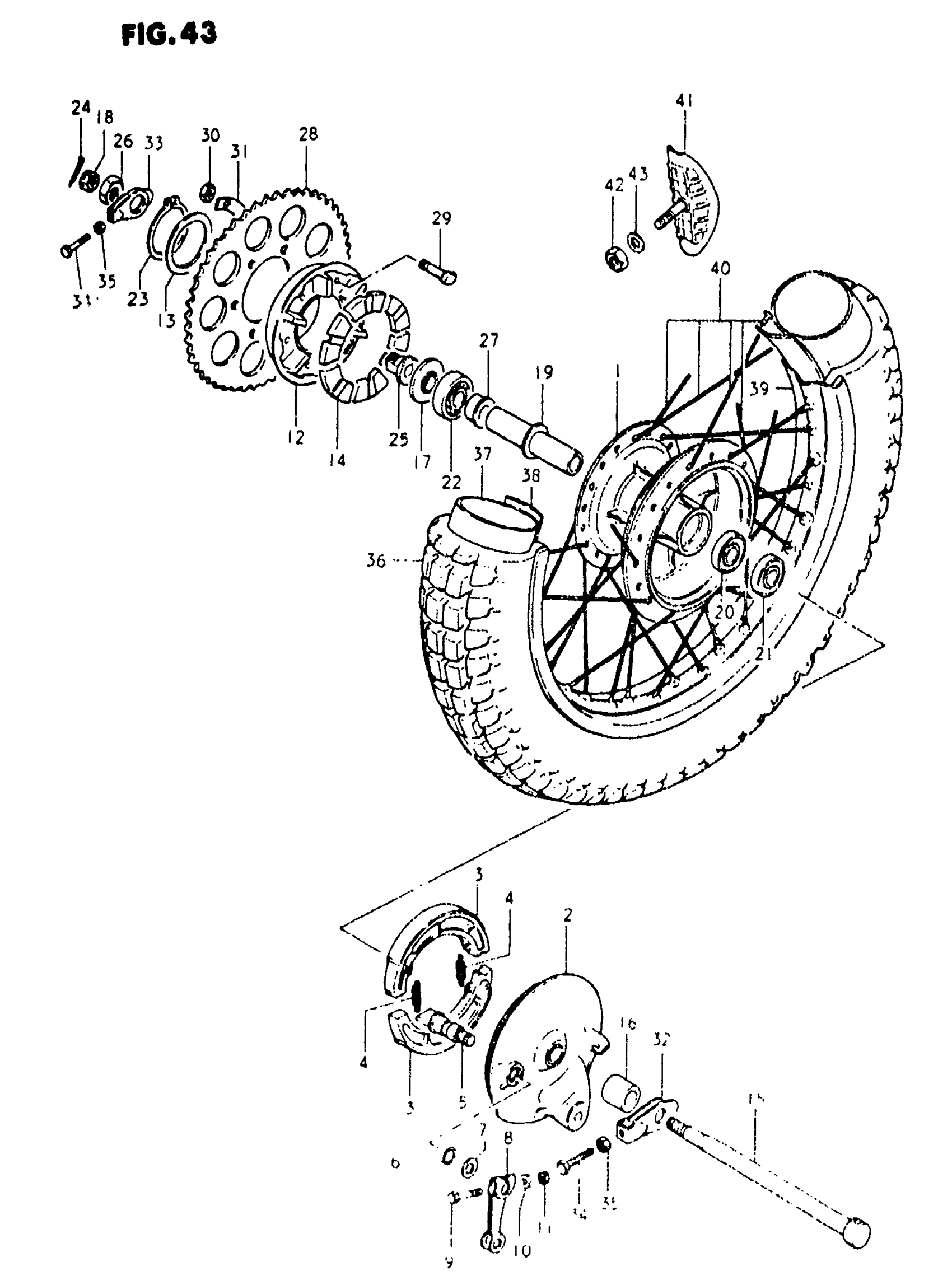

Suzuki TS250 (1981) REAR WHEEL Diagram

#

Description
Price

1

HUB, WHEEL

64110-16500

Unavailable

2

PANEL

64210-16501

Unavailable

3

SHOE SET, REAR BRAKE This part replaces 54410-32400.

64400-02830

$55.17

4

SPRING, BRAKE SHOE

55420-41100

Unavailable

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

LEVER, BRAKE CAM

64451-39100

Unavailable

9

BOLT | MODEL T This part replaces 01107-06408.

01500-0640B

$2.62

9

BOLT | MODEL X

09100-06078

$2.38

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08310-11068.

08310-00067

$2.13

12

NO DESCRIPTION AVAILABLE This part replaces 64610-16501.

64610-30001

Unavailable

13

WASHER (62.5x77x1.6)

09160-62001

Unavailable

14

CUSHION, REAR HUB

64650-16520

Unavailable

15

AXLE, REAR

64711-16500

Unavailable

16

SPACER, REAR AXLE RH

09180-15014

Unavailable

17

SPACER, LH

64750-30000

Unavailable

18

NUT

09141-14001

$4.60

19

SPACER, REAR HUB BEARING

64730-30000

Unavailable

20

BEARING (15X42X13) This part replaces 08113-63020.

09262-15027

$23.39

21

OIL SEAL

09284-26001

Unavailable

22

BEARING This part replaces 08123-63047.

08123-6304B

$24.07

23

CIRCLIP This part replaces 08331-11628.

08331-31629

$7.42

24

PIN This part replaces 04111-30408.

04111-3040A

$1.59

25

SPACER, CHAIN ADJUSTER LH

64791-30000

Unavailable

26

NUT This part replaces 09140-24002.

09140-24010

Unavailable

27

HOLDER, BEARING LH

64733-30000

Unavailable

28

SPROCKET,RR 40T This part replaces 64511-30700.

64511-30701

Unavailable

29

BOLT

09105-08001

$2.06

30

NUT This part replaces 08310-12088.

08310-00087

$2.13

31

WASHER

09169-08011

$2.16

32

ADJUSTER, CHAIN RH

61410-30003

Unavailable

33

ADJUSTER, CHAIN LH

61420-30002

Unavailable

34

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

35

NUT This part replaces 08310-12088.

08310-00087

$2.13

36

TIRE (460-18) | IRC This part replaces 65100-30901.

65100-37411

Unavailable

37

TUBE, INNER | IRC

65200-49015

Unavailable

38

IN TUBE PROTECT | IRC This part replaces 65261-15010.

55261-26F10

$4.39

39

RIM, WHEEL (2.15-18)

65311-30900

Unavailable

40

SPOKE SET, REAR

65320-16520

Unavailable

41

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

42

NUT This part replaces 08310-12088.

08310-00087

$2.13

43

WASHER This part replaces 08322-11088.

08322-01087

$2.13
