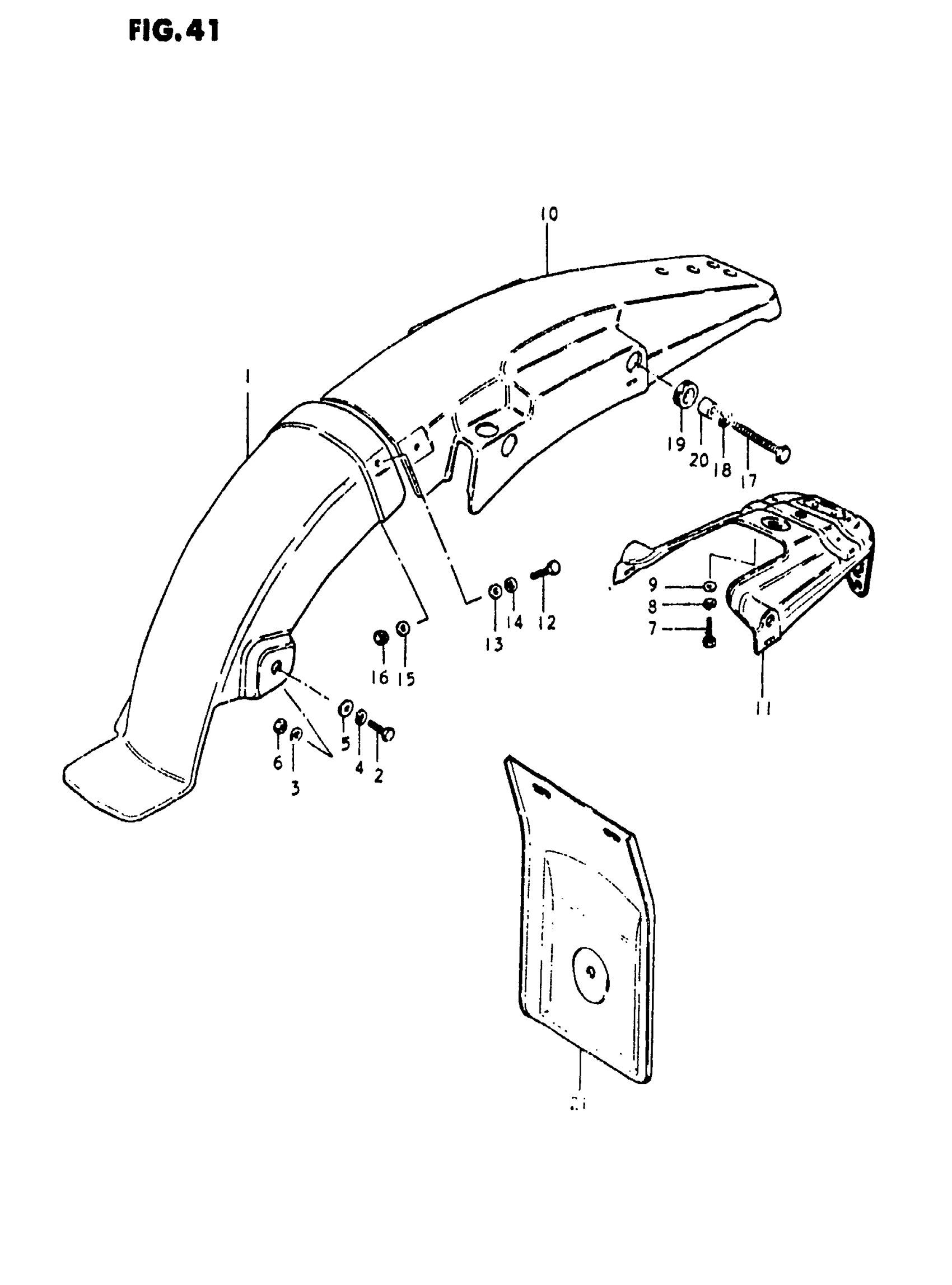

Suzuki TS250 (1981) REAR FENDER (TS250T) Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-30900

Unavailable

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

3

WASHER This part replaces 08322-21068.

08322-01067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER

09169-06010

$2.60

6

.NUT This part replaces 08310-11068.

08310-00067

$2.13

7

BOLT This part replaces 01107-05168.

01500-0516B

$2.15

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

WASHER

09160-05013

$1.49

10

NO DESCRIPTION AVAILABLE This part replaces 63113-30900-08Y.

63113-30900-13L

Unavailable

11

REINFORCEMENT

63120-30900

Unavailable

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

NUT This part replaces 08310-11058.

08310-00057

$1.84

17

BOLT This part replaces 01107-08308.

01500-08307

$3.04

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

20

SPACER This part replaces 09180-08021.

09180-08188

$2.56

21

MUD FLAP, REAR FENDER | OPT

63331-30601

Unavailable
