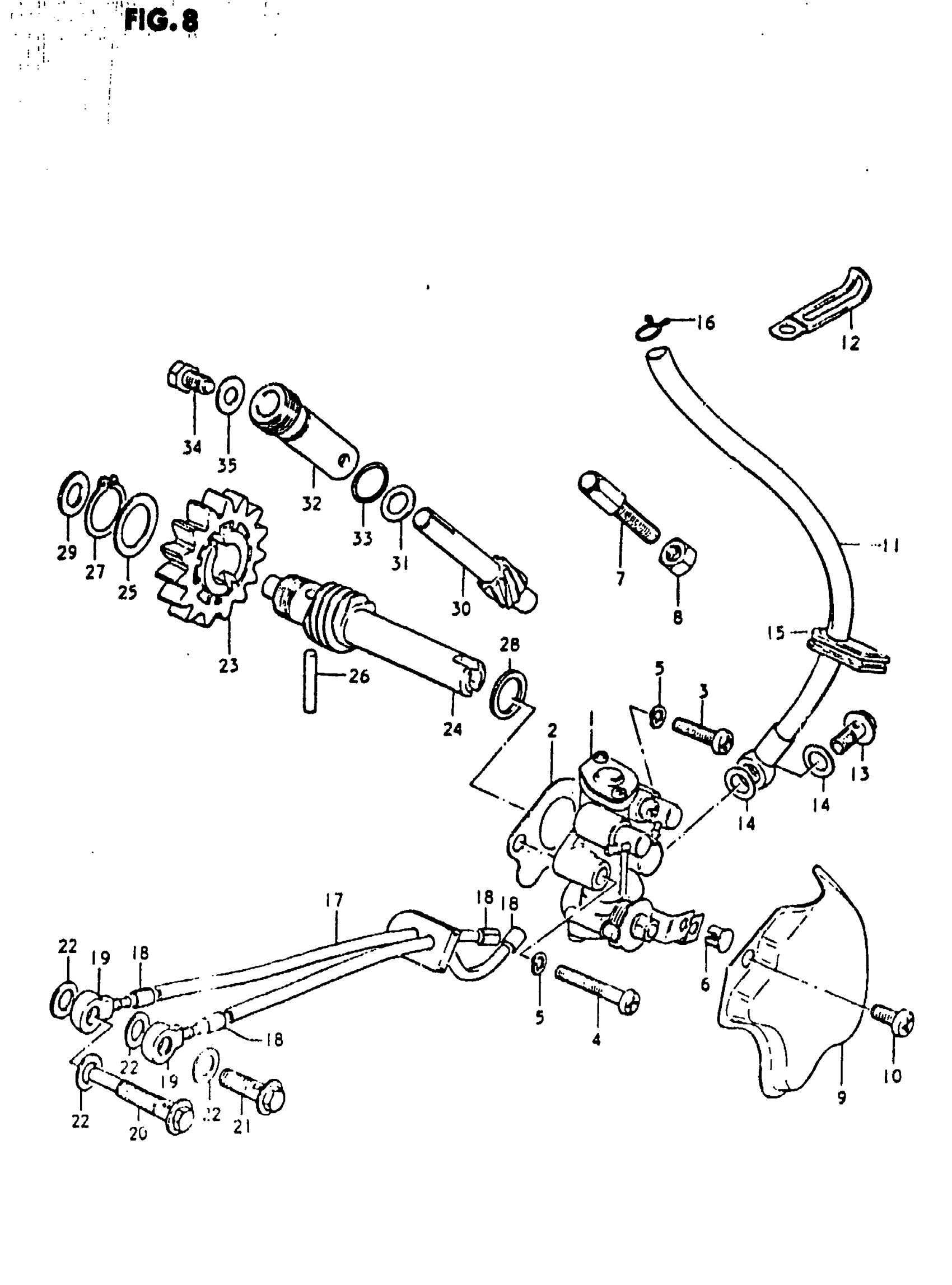

Suzuki TS250 (1981) OIL PUMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 16100-30910.

16100-30911

Unavailable

2

GASKET

16731-03101

$2.81

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$5.05

7

BOLT

09119-08014

$3.55

8

NUT This part replaces 08310-12088.

08310-00087

$2.13

9

CAP, INSPECTION

11385-30000

Unavailable

10

SCREW This part replaces 02112-06108.

02112-06107

$1.49

11

HOSE, OIL (L:512!97) This part replaces 16810-30500.

16810-07520

Unavailable

12

CLAMP (L:82) This part replaces 09404-10403.

09404-10205

Unavailable

13

UNION BOLT

09360-06003

$3.76

14

GASKET

09168-06004

$1.49

15

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

16

CLAMP

09401-08401

$1.54

17

HOSE, OIL OUTLET

16820-30500

Unavailable

18

CLIP

09401-04401

$2.06

19

UNION This part replaces 09363-02001.

09363-02002

$8.23

20

UNION BOLT

09360-06009

$6.83

21

UNION BOLT

09360-06003

$3.76

22

GASKET

09168-06004

$1.49

23

GEAR, DRIVE (NT:15)

16321-30030

Unavailable

24

SHAFT, DRIVE (NT:6)

16322-30001

Unavailable

25

WASHER

08211-14241

Unavailable

26

PIN

09261-04005

$1.67

27

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

28

WASHER

08211-12202

Unavailable

29

WASHER

08221-08166

Unavailable

30

GEAR, TACHO. DRIVEN (NT:9)

26431-30001

Unavailable

31

WASHER

09160-08003

$2.23

32

SLEEVE, TACHOMETER GEAR | MODEL T

26441-30000

Unavailable

32

SLEEVE, TACHOMETER GEAR | MODEL X

26441-48000

Unavailable

33

O RING

09280-10001

$2.02

34

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

35

WASHER This part replaces 08322-21068.

08322-01067

$2.13
