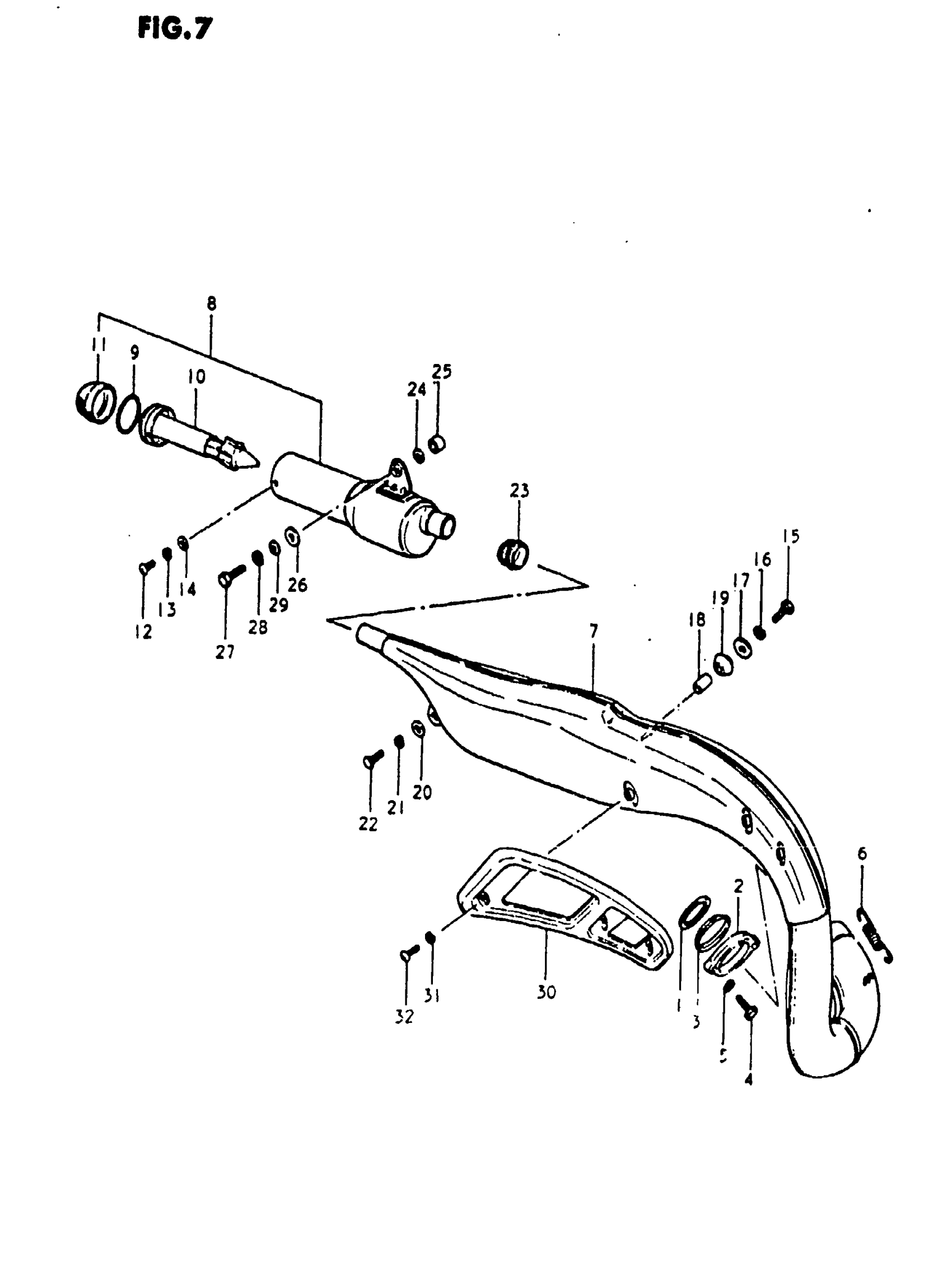

Suzuki TS250 (1981) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-30080

Unavailable

2

CLAMP

14182-30000

Unavailable

3

WASHER,EXHAUST This part replaces 14184-30010.

14184-30020

Unavailable

4

BOLT This part replaces 01107-06258.

01500-06257

$1.97

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

SPRING

09443-11002

$3.10

7

NO DESCRIPTION AVAILABLE This part replaces 14310-30900.

14310-30911

Unavailable

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 14 This part replaces 14303-30920.

14303-30921-H01

Unavailable

9

O RING

09280-55001

$5.52

10

TUBE, CLEAN OUT

14850-30510

Unavailable

11

COVER, TALL

14649-30520

Unavailable

12

SCREW

09128-06013

$1.49

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

BOLT This part replaces 01107-08308.

01500-08307

$3.04

16

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

17

SPACER,8.5X12X1 This part replaces 09180-08048.

09180-08302

$2.19

18

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 08322-21088.

08322-01087

$2.13

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

23

CONNECTOR, 2ND MUFFLER | MODEL T This part replaces 14771-30900.

14771-43D00

$21.25

23

CONNECTOR, 2ND MUFFLER | MODEL X This part replaces 14771-30901.

14771-43D00

$21.25

24

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

25

SPACER,8.5X14X1 This part replaces 09180-08083.

09180-08201

$3.05

26

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

27

BOLT This part replaces 01107-08258.

01500-08257

$2.50

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

30

COVER, MUFFLER

14781-30900

Unavailable

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

SCREW This part replaces 02112-06088.

02112-06087

$1.49
