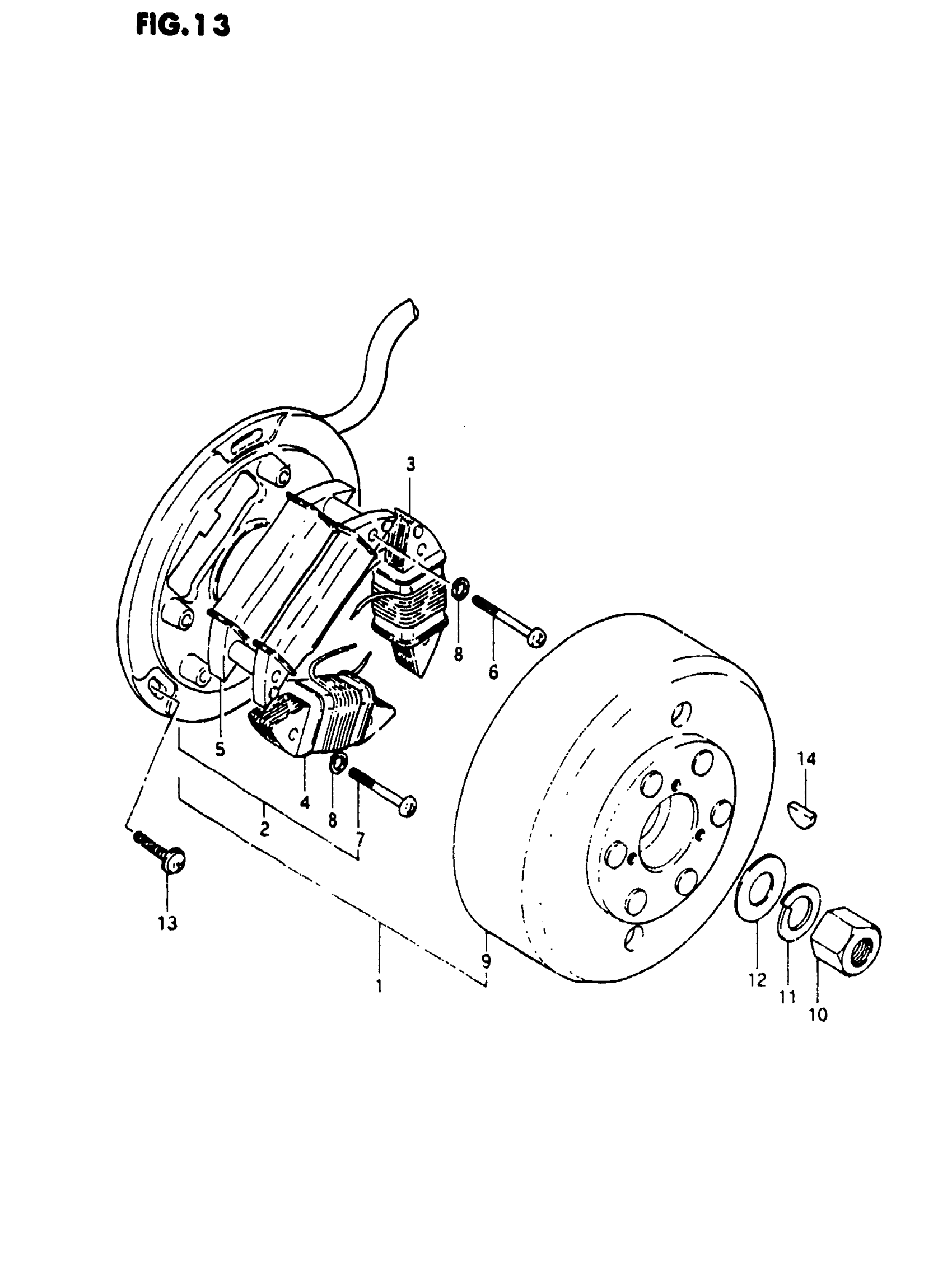

Suzuki TS250 (1981) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 9

32100-30510

Unavailable

2

STATOR ASSY

32101-30510

Unavailable

3

COIL, LIGHTING

32120-30510

Unavailable

4

COIL, CHARGING

32130-30511

Unavailable

5

COIL, PRIMARY

32140-30510

Unavailable

6

SCREW This part replaces 02112-05358.

02112-05357

$1.49

7

SCREW This part replaces 02112-05208.

02112-05207

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

ROTOR

32102-30510

Unavailable

10

NUT

09140-14011

Unavailable

11

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

12

WASHER (14x27x3)

09160-14015

Unavailable

13

SCREW

09139-05011

$2.38

14

KEY This part replaces 08341-31049.

09420-04008

$3.42
