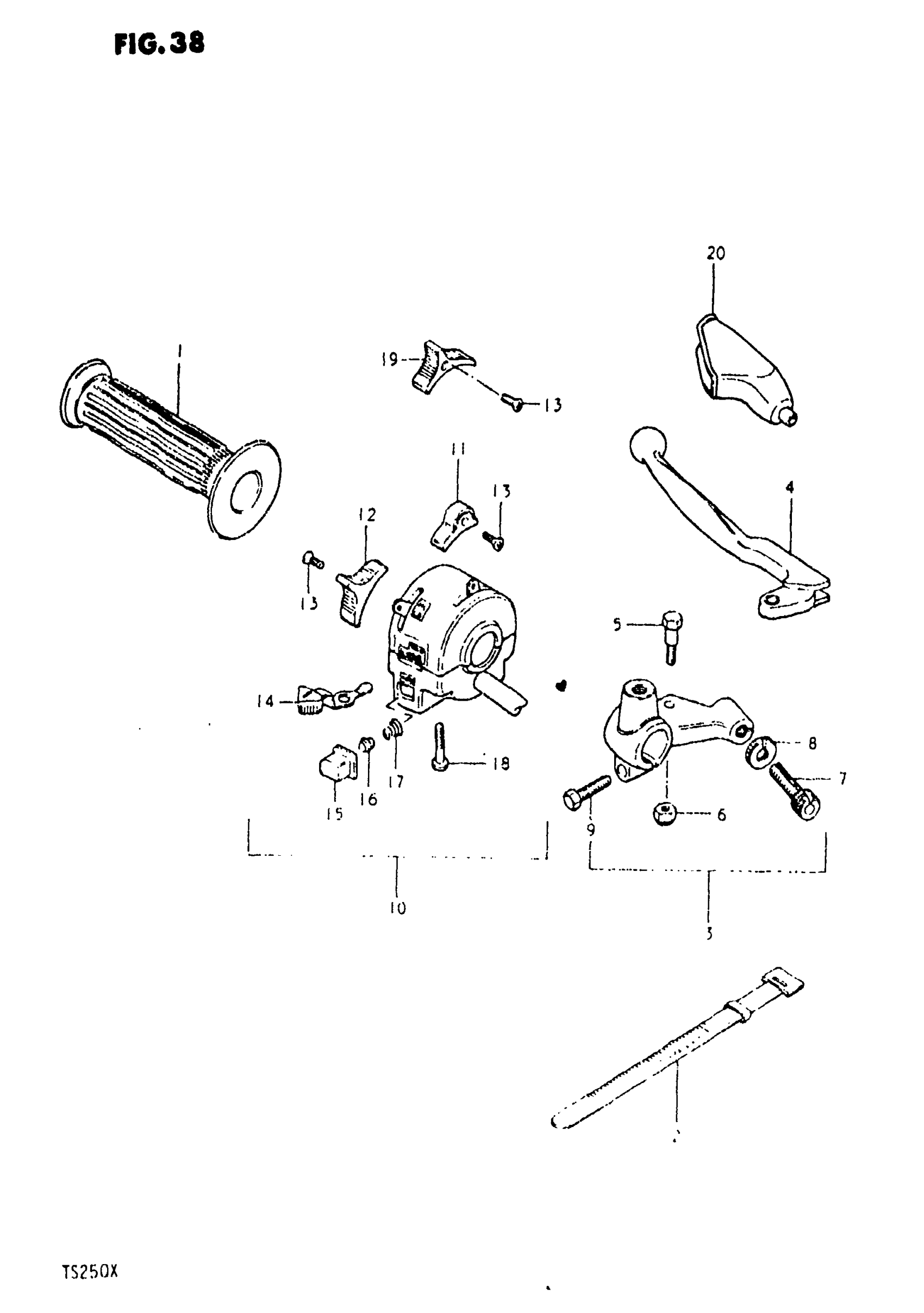

Suzuki TS250 (1981) LEFT HANDLE SWITCH Diagram

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

BAND (L:120)

09407-12402

$3.04

LEVER ASSY, CLUTCH | Includes Item(s) 4 - 9

57500-30900

Unavailable

LEVER, CLUTCH

57620-26500

$25.90

BOLT This part replaces 57431-11011.

57431-11013

$6.31

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

ADJUSTER, CABLE

57441-11010

$5.62

NUT

57442-11010

$2.79

BOLT This part replaces 01107-06208.

01500-06207

$2.28

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 18 This part replaces 37400-32411.

37400-32412

Unavailable

KNOB, STOPPER

37414-45602

Unavailable

KNOB, DIMMER

37421-45012

$6.17

SCREW This part replaces 02122-03068.

02122-03067

$1.80

KNOB, TURN SIGNAL

37513-45011

$7.22

BUTTON, HORN

57371-45000

$4.52

CONTACT

57372-45000

$4.45

SPRING

57382-45000

$3.37

SCREW This part replaces 02112-05258.

02112-05257

$1.49

KNOB, LIGHTING (OPT)

37411-45012

$5.24

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56
