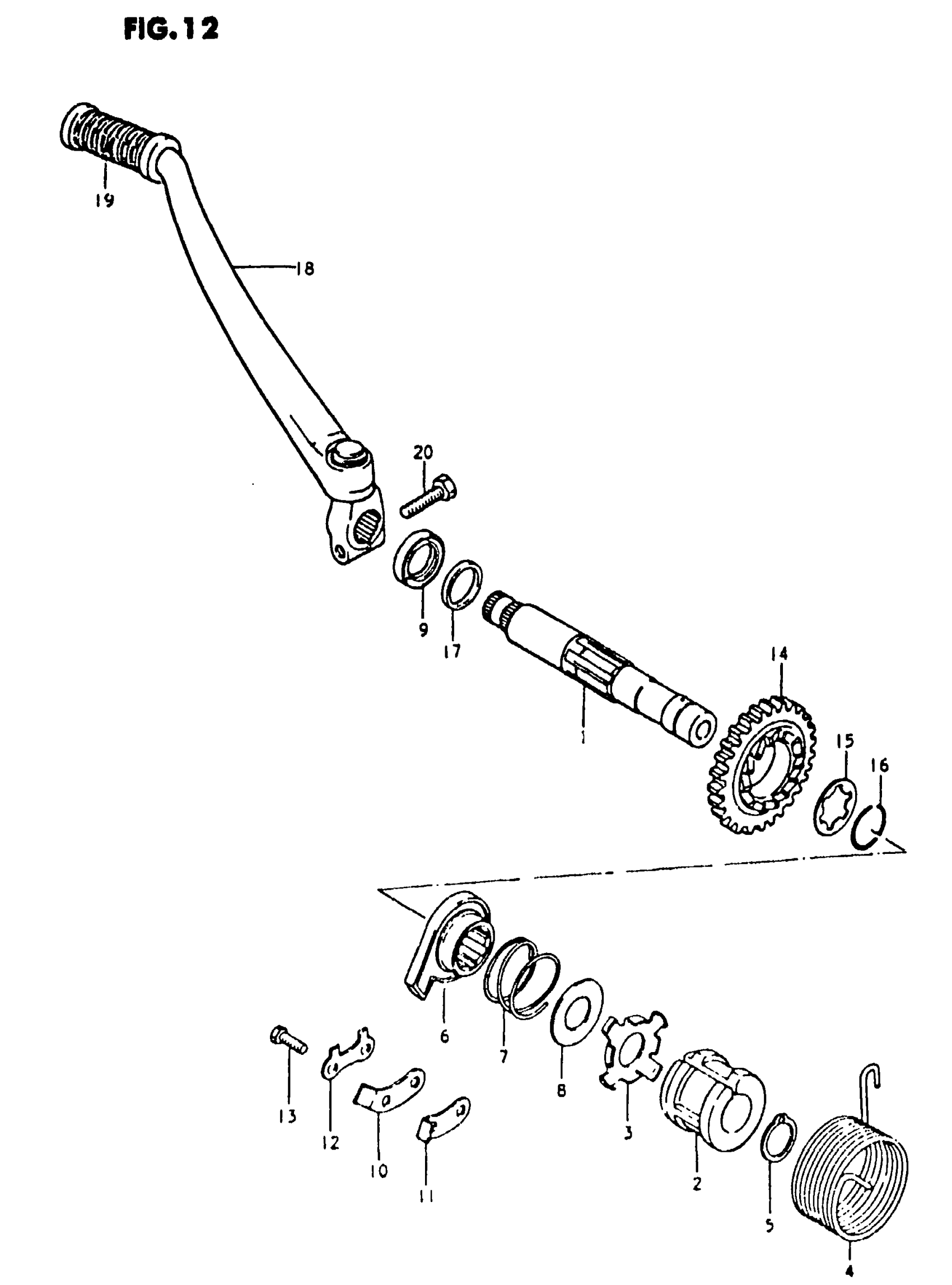

Suzuki TS250 (1981) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-30500

Unavailable

2

GUIDE, SPRING

26221-30531

Unavailable

3

HOLDER, SPRING

26222-16500

Unavailable

4

SPRING

09448-45003

$6.53

5

CIRCLIP

09380-17001

$1.98

6

STARTER, KICK | MODEL T This part replaces 26231-30001.

26231-22A10

$63.88

6

STARTER, KICK | MODEL X This part replaces 26231-30002.

26231-22A10

$63.88

7

SPRING

09440-32002

$2.27

8

PLATE

08211-17342

$2.72

9

OIL SEAL (20X37X7)

09283-20025

$5.64

10

GUIDE, KICK STARTER

26232-30000

Unavailable

11

STOPPER, KICK STARTER

26233-30000

Unavailable

12

WASHER

09169-06003

$1.78

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

GEAR, DRIVE (NT:27)

26241-30001

Unavailable

15

WASHER

09167-22007

Unavailable

16

CIRCLIP

09380-22003

$1.92

17

SPACER

09180-20017

$5.63

18

NO DESCRIPTION AVAILABLE | Includes Item(s) 19 This part replaces 26300-30501.

26300-30502

Unavailable

19

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

20

BOLT This part replaces 01107-08258.

01500-08257

$2.50
