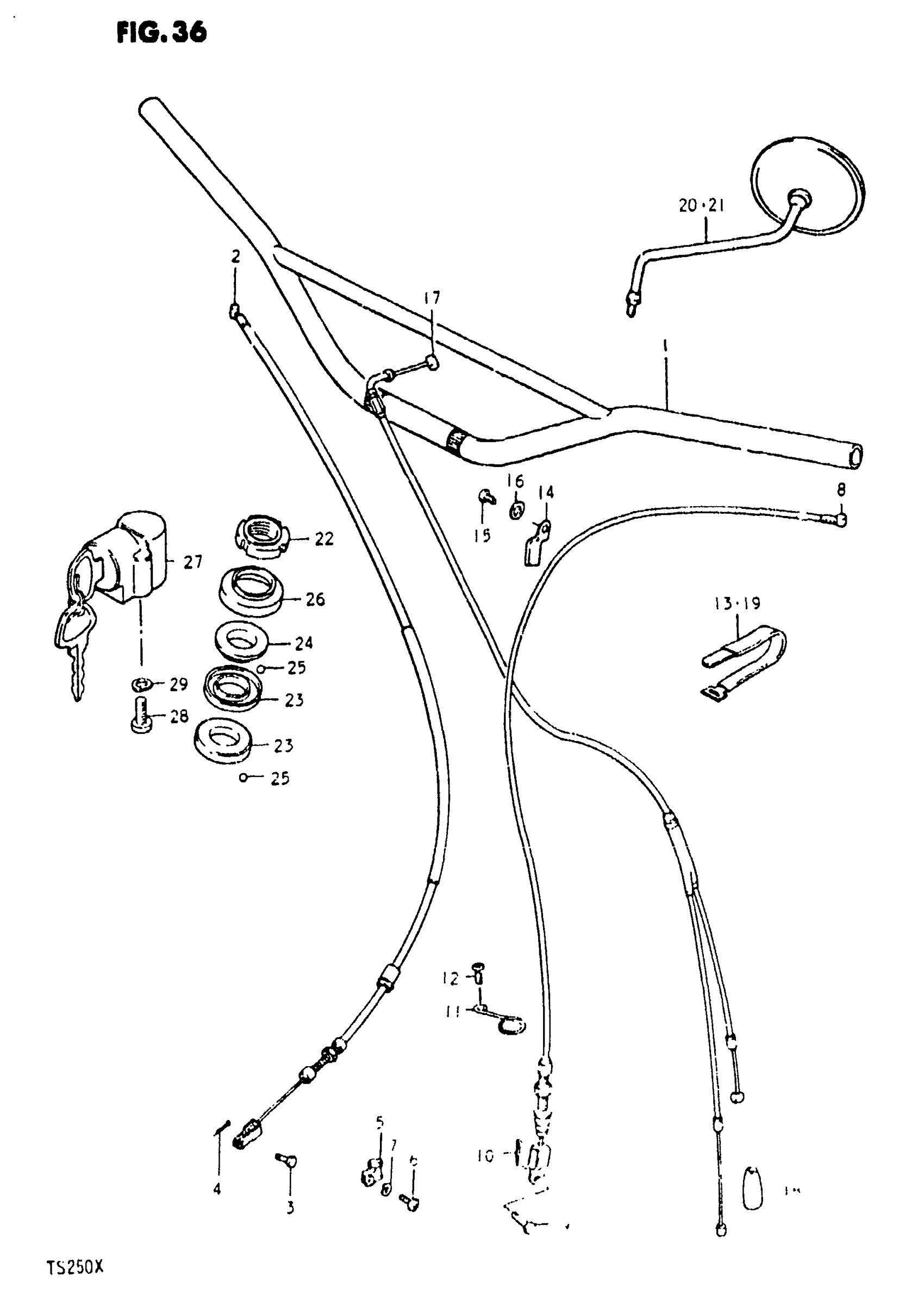

Suzuki TS250 (1981) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 56110-48203-291.

56110-48003-08C

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 56110-30900.

56110-48003-08C

Unavailable

2

CABLE, FRONT BRAKE | MODEL T This part replaces 58100-32400.

58100-32401

Unavailable

2

CABLE ASSY, FRONT BRAKE | MODEL X

58100-32401

Unavailable

3

PIN

09200-05001

$1.65

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

GUIDE, CABLE | MODEL T This part replaces 58621-32400.

58621-40401

Unavailable

5

GUIDE | MODEL X

58621-40401

Unavailable

6

SCREW This part replaces 02112-06108.

02112-06107

$1.49

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

CABLE,CLUTCH This part replaces 58200-30501.

58200-30502

Unavailable

9

PIN

09200-06011

Unavailable

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

CLAMP

09403-13401

$2.30

12

SCREW This part replaces 02112-06088.

02112-06087

$1.49

13

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

14

CLAMP, CABLE This part replaces 09403-06302.

09403-06301

Unavailable

15

SCREW This part replaces 02112-06128.

02112-06127

$1.84

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

CABLE,THROTTLE | MODEL T This part replaces 58300-30900.

58300-30902

Unavailable

17

CABLE,THROTTLE | MODEL X This part replaces 58300-30901.

58300-30902

Unavailable

18

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

19

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

20

MIRROR ASSY,RR This part replaces 56500-45012.

56500-45014

$64.82

21

MIRROR ASSY,RR This part replaces 56600-45012.

56600-45014

$64.82

22

NUT, STEERING STEM

51631-28000

$17.37

23

RACE, STEERING INNER

51611-33002

$13.81

24

RACE, STEERING OUTER UPPER

51621-30001

Unavailable

25

STEEL BALL

06111-08003

$1.49

26

DUST SEAL, STEERING UPPER

51643-30000

Unavailable

27

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

28

SCREW This part replaces 02112-05128.

02112-05127

$1.97

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
