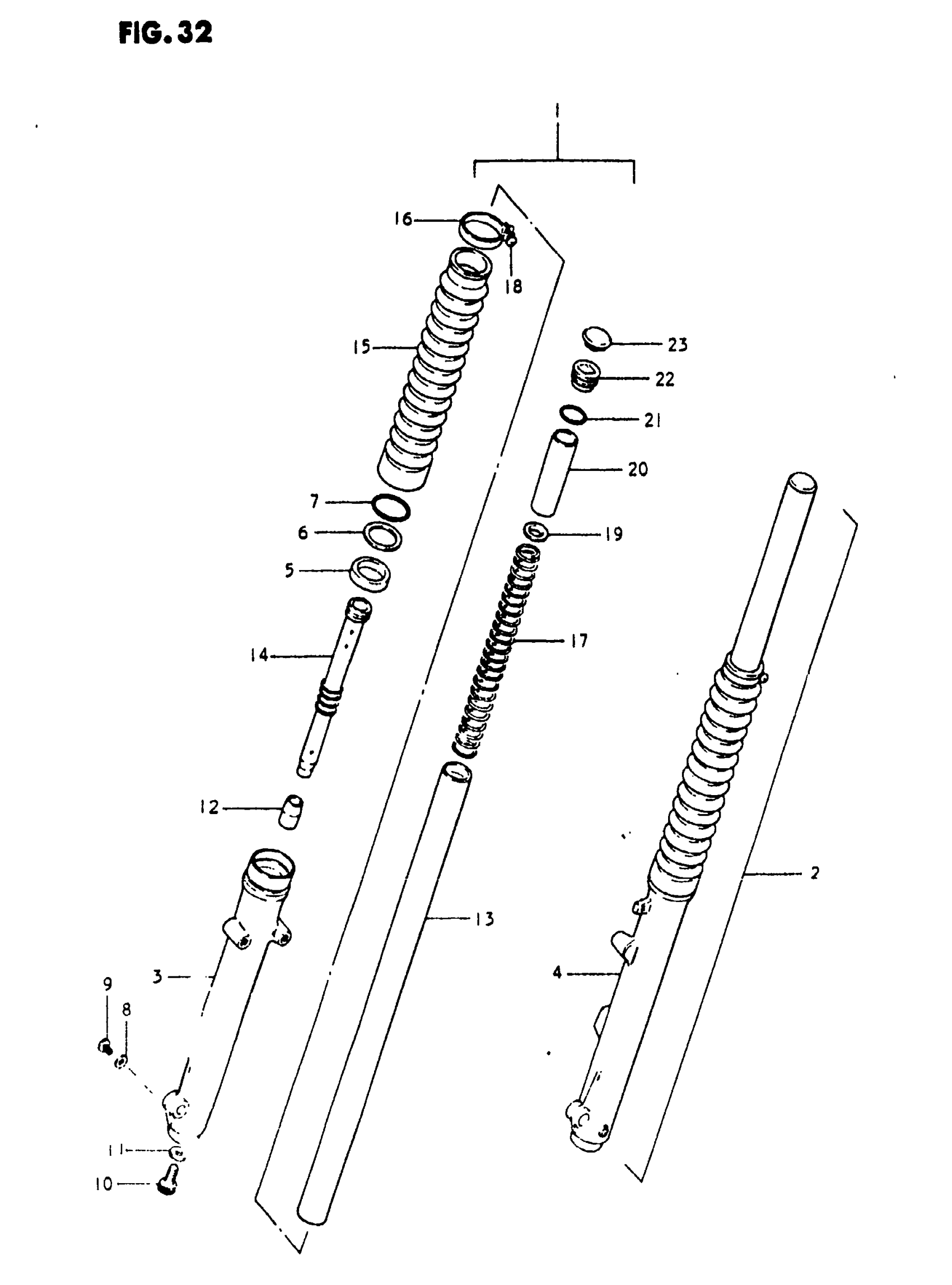

Suzuki TS250 (1981) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-30900

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 23

51104-30900

Unavailable

3

OUTER TUBE, RH

51130-32401

Unavailable

4

OUTER TUBE, LH

51140-32401

Unavailable

5

FORK OIL SEAL This part replaces 51153-41211.

51153-16730

Unavailable

6

WASHER

51158-32110

Unavailable

7

SNAP RING

51156-32110

Unavailable

8

GASKET

51183-03010

$2.07

9

SCREW This part replaces 02111-04087.

02112-04087

$1.49

10

BOLT

51147-16510

$4.34

11

GASKET

51148-41310

$2.26

12

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

13

INNER TUBE

51110-30900

Unavailable

14

CYLINDER

51146-30900

Unavailable

15

BOOT

51571-30900

Unavailable

16

BAND

51575-41410

Unavailable

17

SPRING

51171-30900

Unavailable

18

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

19

GUIDE, SPRING

51172-38010

Unavailable

20

SPACER

51176-49000

Unavailable

21

O RING

51117-16310

Unavailable

22

CAP

51351-30520

Unavailable

23

CAP This part replaces 51189-32400.

51189-30520

$12.40
