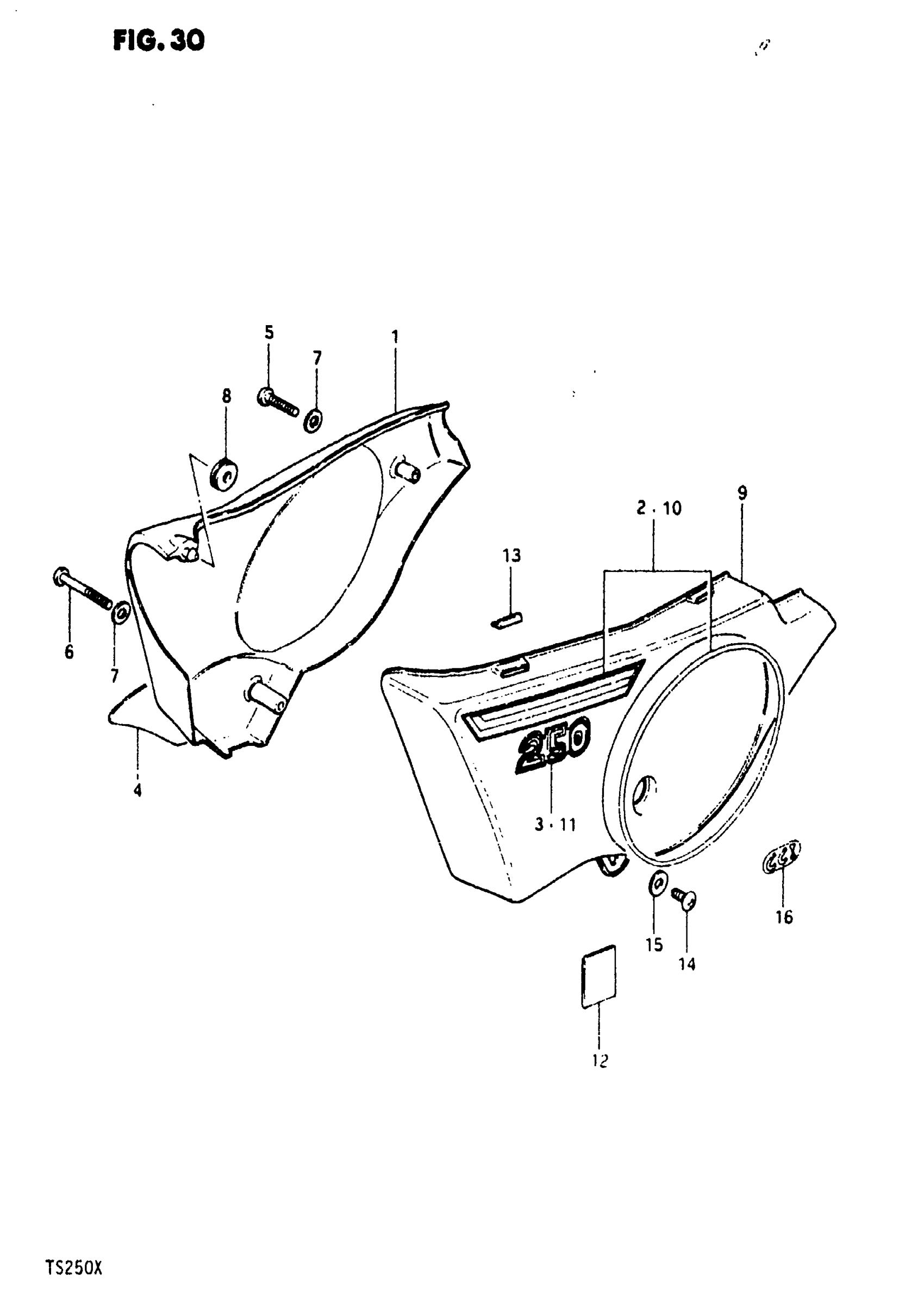

Suzuki TS250 (1981) FRAME COVER (TS250T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 47111-30900-08Y.

47110-30910

Unavailable

2

TAPE SET

68130-30910-71S

Unavailable

3

EMBLEM (BLACK)

68131-30920-019

Unavailable

4

EMBLEM, LOWER RH

68131-30910

Unavailable

5

SCREW, BODY COVER UPPER This part replaces 02142-06258.

09125-06055

$2.34

6

SCREW This part replaces 02142-06458.

02142-06457

$2.72

7

WASHER This part replaces 09160-06007.

09160-06084

$1.78

8

CUSHION

09320-08018

$3.04

9

NO DESCRIPTION AVAILABLE This part replaces 47211-30901-08Y.

47211-30901

Unavailable

10

TAPE, LH

68140-30910-71S

Unavailable

11

EMBLEM (BLACK)

68131-30920-019

Unavailable

12

CUSHION

33651-37000

$4.48

13

CUSHION

47117-45000

$2.14

14

SCREW

02142-06127

$1.49

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

EMBLEM CCI

68171-26000

$3.59
