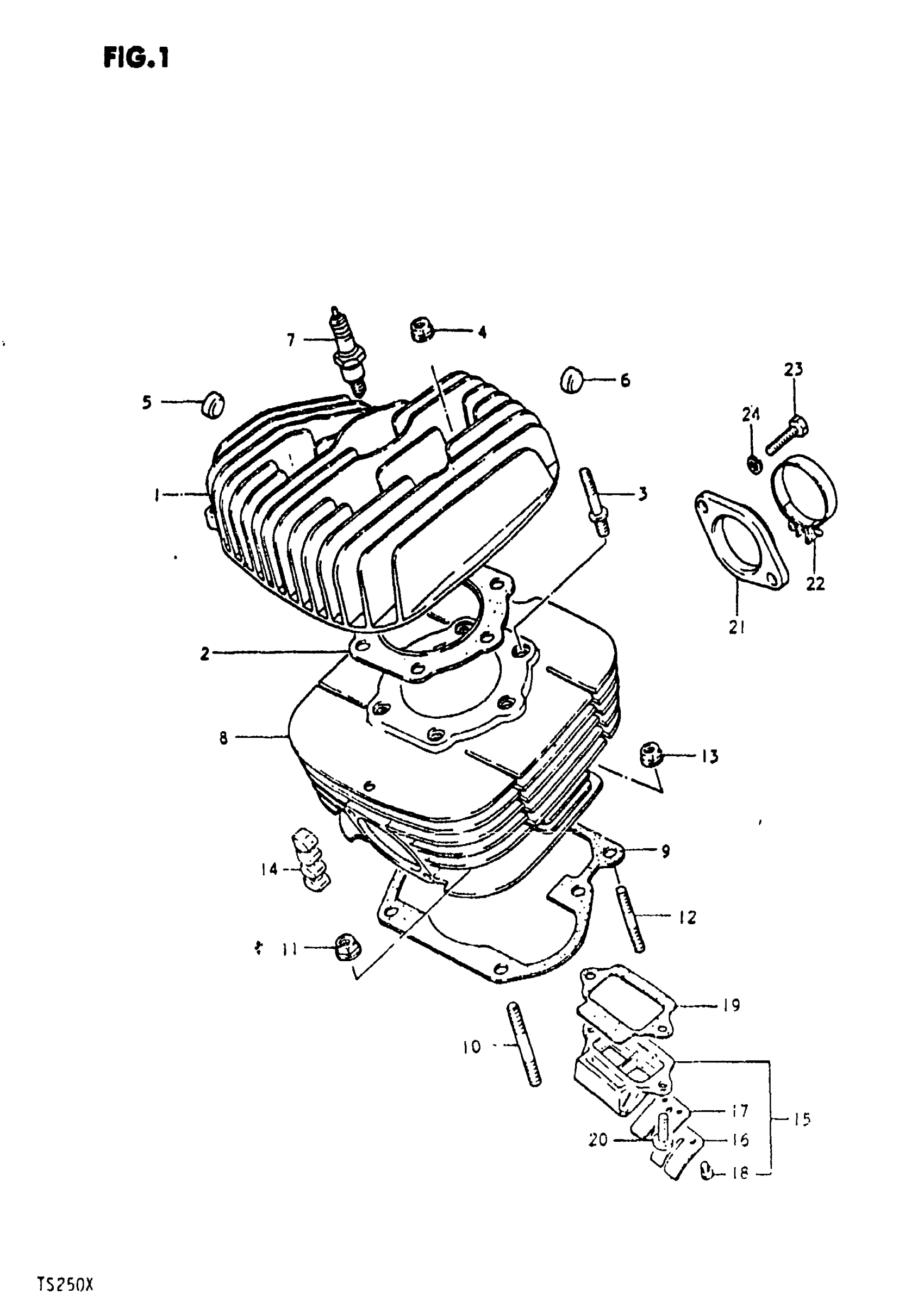

Suzuki TS250 (1981) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-30503

Unavailable

2

GASKET

11141-30900

Unavailable

3

STUD BOLT

09108-08018

$3.18

4

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

5

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.25

6

PAD

11252-38001

$3.78

7

SPARK PLUG This part replaces 09482-00226.

09482-00139

$3.32

7

SPARK PLUG (ND, W22EP)

09482-00140

Unavailable

8

CYLINDER

11210-30900

Unavailable

9

CYLINDER GASKET This part replaces 11241-41100.

11241-41100-H17

Unavailable

10

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

11

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

12

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

13

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

14

NO DESCRIPTION AVAILABLE This part replaces 11251-30500.

11251-30530

Unavailable

15

REED VALVE ASSY | Includes Item(s) 16 - 18

13150-41113

$143.67

16

STOPPER

13152-41110

Unavailable

17

REED VALVE

13153-41110

$11.38

18

SCREW This part replaces 13154-19011.

02112-0308A

$1.80

19

GASKET,REED VAL This part replaces 13156-41100.

13156-41100-H17

$3.43

20

SCREW This part replaces 02112-06208.

02112-06207

$1.78

21

PIPE,INTAKE This part replaces 13110-30900.

13110-30901

$35.23

22

CLAMP This part replaces 09402-48306.

09402-48208

$4.64

23

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
