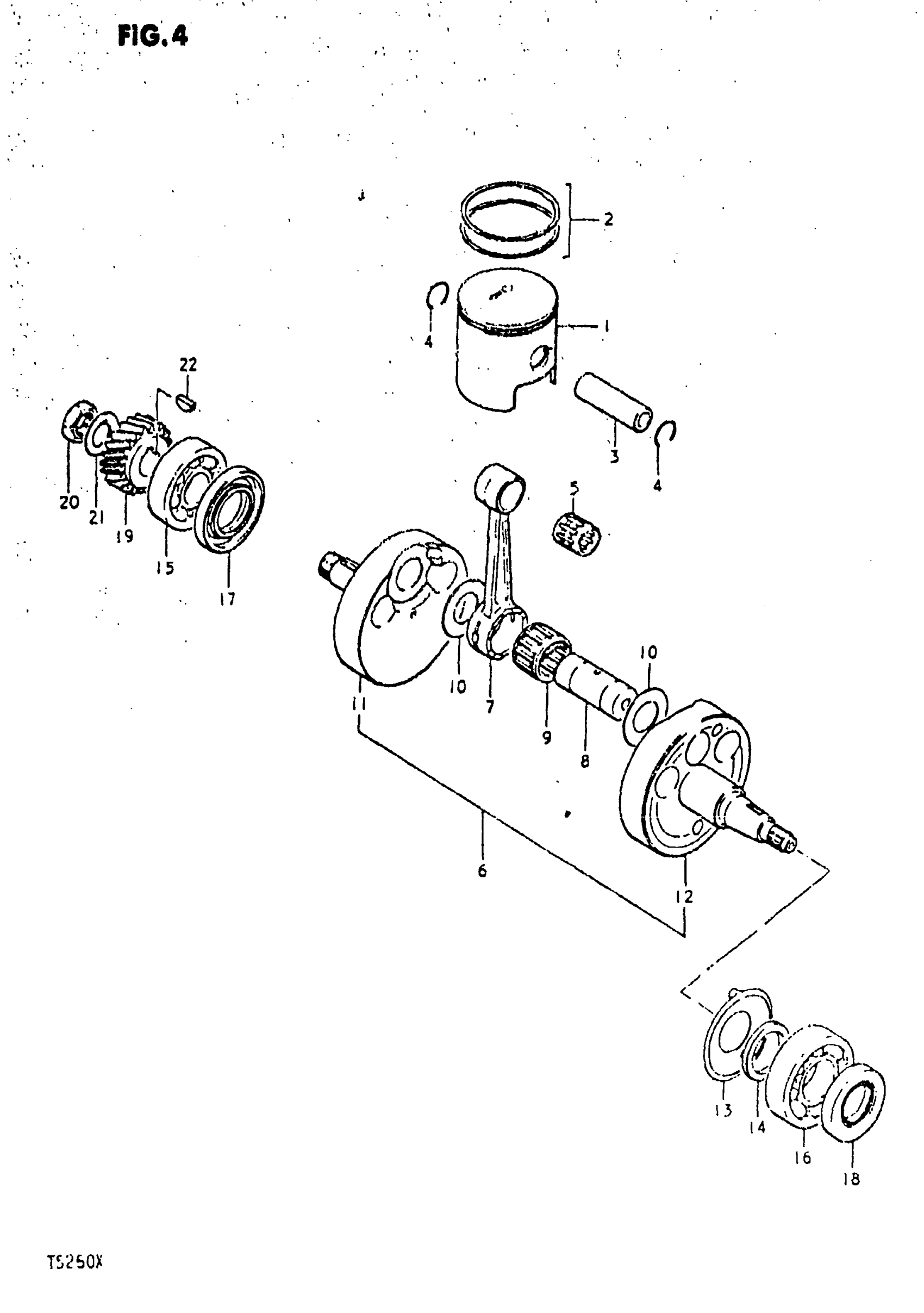

Suzuki TS250 (1981) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD)

12110-30510

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 12110-30510-050.

12103-30820-050

Unavailable

1

PISTON SET This part replaces 12110-30510-100.

12103-30820-100

Unavailable

2

RING SET, PISTON (STD)

12140-30010

$47.34

2

RING SET, PISTON (OS:0.5)

12140-30010-050

Unavailable

2

RING SET, PISTON (OS:1.0)

12140-30010-100

Unavailable

3

PIN, PISTON This part replaces 12151-92201.

12151-45501

$17.37

4

CIRCLIP

09381-18002

$1.67

5

BEARING (18X23X24) This part replaces 09263-18009.

09263-18021

Unavailable

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-30500.

12200-30003

Unavailable

7

ROD, CONNECTING

12161-16400

Unavailable

8

PIN, CRANK

12211-16400

Unavailable

9

BEARING

09263-25008

Unavailable

10

WASHER

09160-25024

Unavailable

11

CRANKSHAFT, RH

12221-30500

Unavailable

12

CRANKSHAFT, LH

12261-30500

Unavailable

13

PLATE, OIL GUIDE

12511-30002

Unavailable

14

SPACER

09180-30012

Unavailable

15

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

16

BEARING, LH

09269-30006

Unavailable

17

OIL SEAL, RH

09283-35004

Unavailable

18

OIL SEAL 30X55X This part replaces 09283-30011.

09283-30L03

$36.08

19

GEAR, PRIMARY DRIVE (NT:21)

21111-30000

Unavailable

20

NUT

09140-18002

$3.87

21

WASHER

09166-18001

$2.71

22

KEY

08341-31059

$2.48
