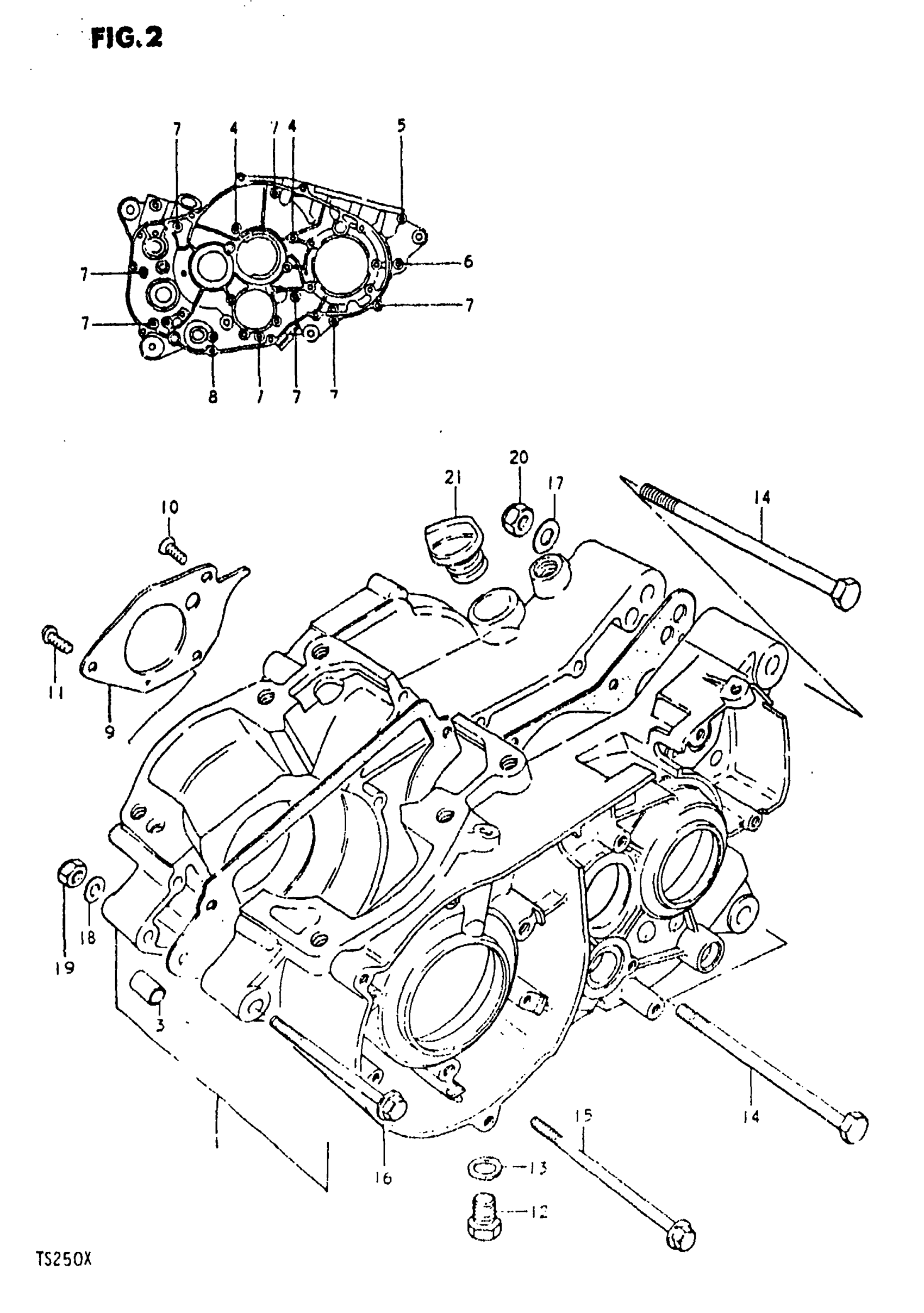

Suzuki TS250 (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 8

11300-30871

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11481-30500.

11481-30501

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

6 X 75 CROSS SC This part replaces 02122-06758.

02122-0675A

$3.02

5

SCREW This part replaces 02112-06658.

02112-06657

$2.62

6

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

7

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

8

SCREW This part replaces 02112-06358.

02112-06357

$1.78

9

PLATE, OIL RESERVOIR

12521-30001

Unavailable

10

SCREW This part replaces 02122-06168.

02122-06167

$1.49

11

SCREW This part replaces 02112-06168.

02112-06167

$1.49

12

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

13

GASKET

09168-14004

$1.83

14

BOLT 10X125 This part replaces 09100-10051.

09100-10274

$7.15

15

BOLT (8X120) This part replaces 09103-08026.

09103-08109

$3.18

16

BOLT This part replaces 01517-08808.

01550-0880A

$3.61

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

NUT This part replaces 08319-31088.

08319-3108A

$2.32

20

NUT This part replaces 08319-31108.

08319-31107

$2.73

21

PLUG This part replaces 09259-19001.

09259-19005

$2.98
