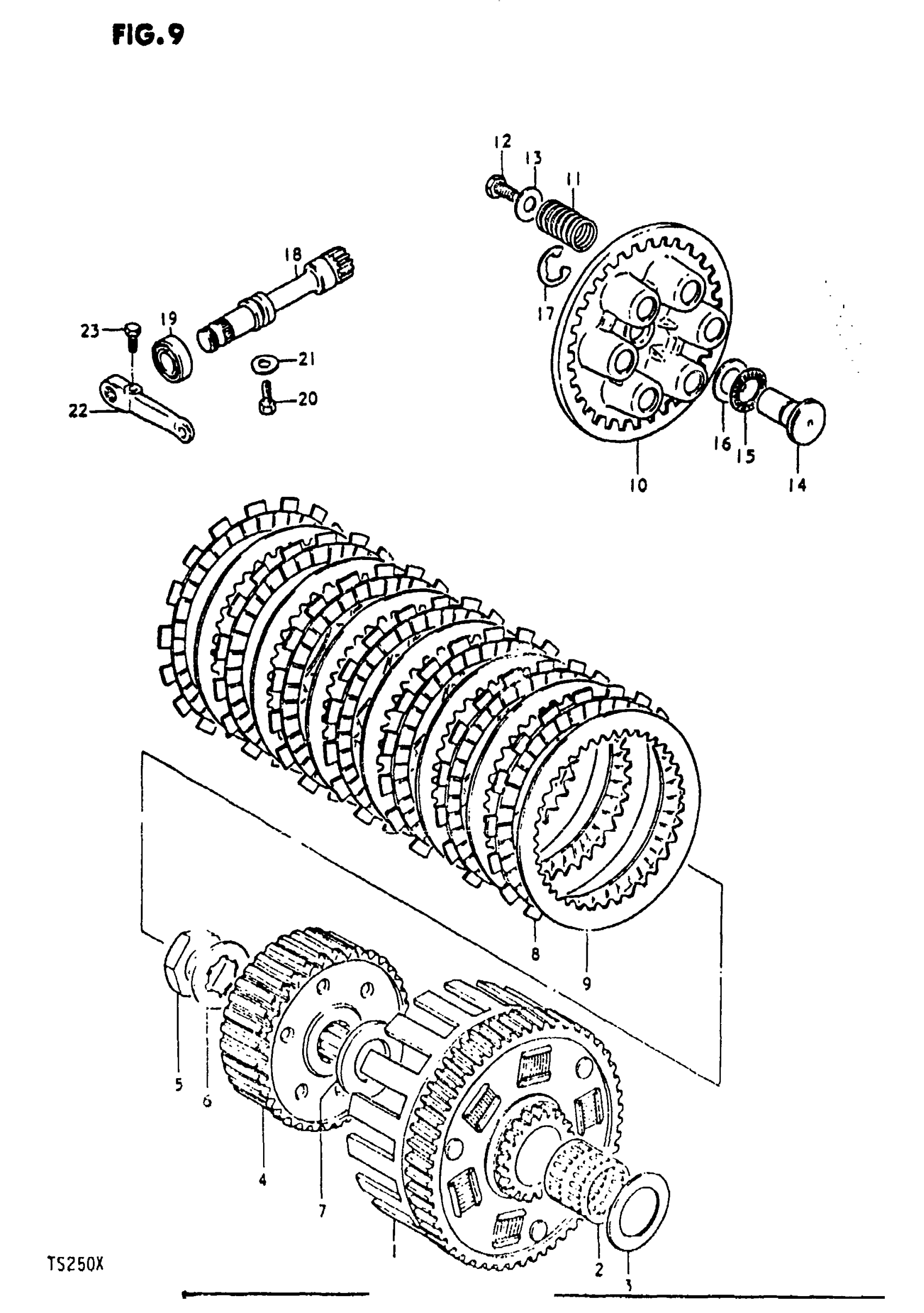

Suzuki TS250 (1981) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:67/18

21200-30003

Unavailable

2

BEARING

09263-25014

Unavailable

3

WASHER

09160-25009

$5.36

4

HUB, SLEEVE

21411-30001

Unavailable

5

NUT This part replaces 09140-20002.

09140-20001

$3.37

6

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

7

WASHER

09160-20015

$5.88

8

PLATE, CLUTCH DRIVE NO.2 This part replaces 21441-16500.

21442-37401

$18.67

9

PLATE, DRIVEN

21451-31000

$10.40

10

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

11

SPRING

09440-19004

$2.50

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

14

NO DESCRIPTION AVAILABLE This part replaces 23165-16501.

23165-16502

Unavailable

15

BEARING

09263-15003

$8.29

16

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

17

E-RING This part replaces 08332-11128.

08332-1112A

$2.15

18

PINION, RELEASE This part replaces 23261-16500.

23261-16501

Unavailable

19

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

20

BOLT

09135-06009

$2.23

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

ARM, RELEASE This part replaces 23271-30500.

23271-45400

Unavailable

23

BOLT This part replaces 01107-06208.

01500-06207

$2.28
