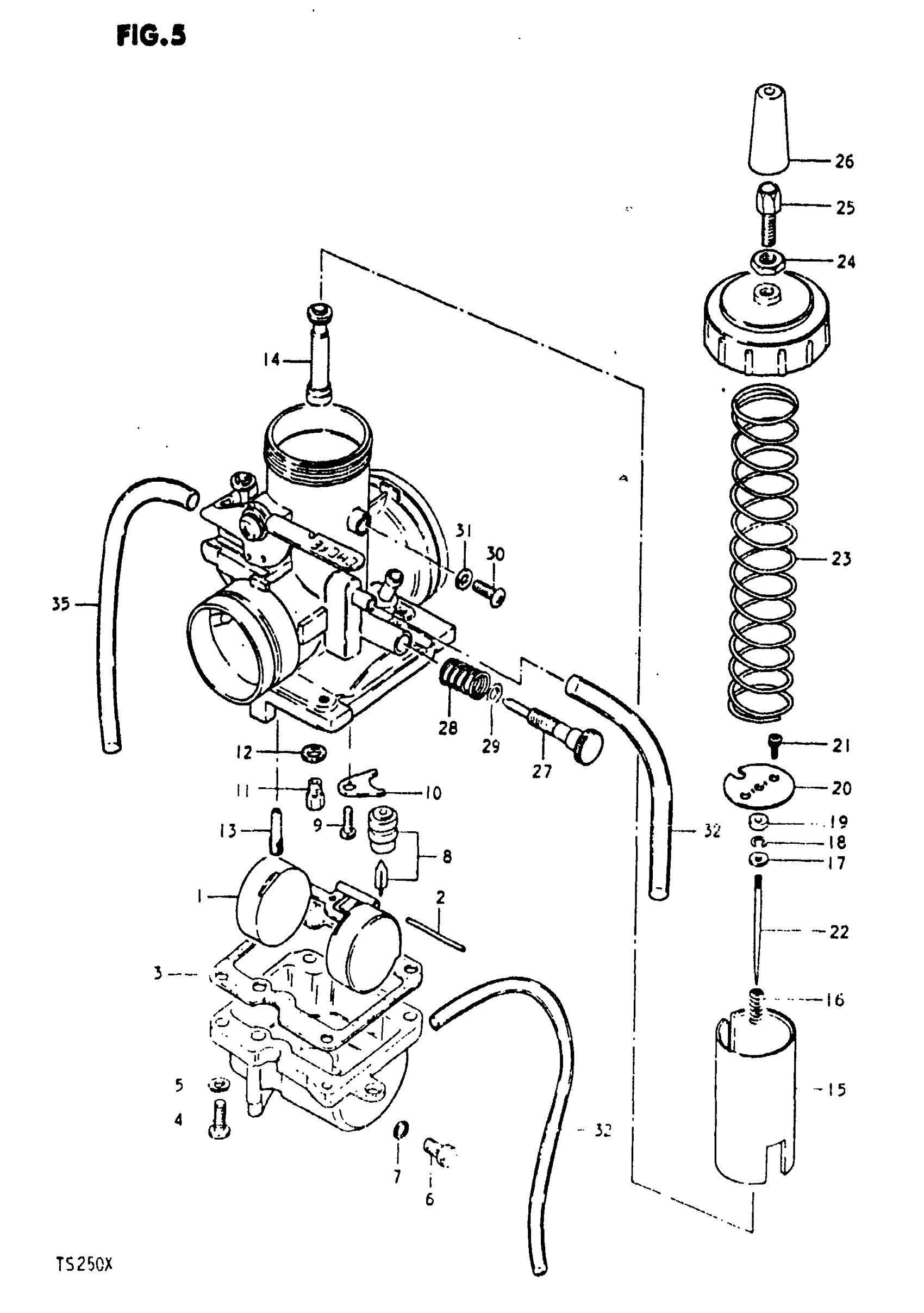

Suzuki TS250 (1981) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 32

13200-30900

Unavailable

1

FLOAT

13252-29630

$27.45

2

.PIN, FLOAT

13254-01010

$3.62

3

GASKET

13251-30910

$10.48

4

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

5

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

6

PLUG

13247-05010

$5.11

7

GASKET

13249-05010

$1.98

8

VALVE,NEEDLE This part replaces 13370-30530.

13370-30941

$62.70

9

SCREW This part replaces 02112-04088.

02112-04087

$1.49

10

PLATE

13373-39110

$6.64

11

JET, MAIN (200)

09491-40006

Unavailable

12

WASHER

13382-03110

$2.80

13

JET, PLIOT (25)

09492-25005

$9.55

14

JET, NEEDLE (0-7)

09494-00262

Unavailable

15

VALVE, THROTTLE (CA:2.5)

13551-29900

Unavailable

16

SPRING, NEEDLE JET

13388-47010

$6.91

17

WASHER

13382-47010

$3.56

18

E RING

13394-10010

$5.45

19

RING

13387-47010

$7.22

20

PLATE

13581-30910

Unavailable

21

SCREW This part replaces 13399-34010.

02112-3308A

$2.23

22

NEEDLE, JET (5DH55)

13383-29900

Unavailable

23

SPRING, THROTTLE VALVE

13573-30900

$7.20

24

NUT

13661-16600

$4.64

25

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

26

CAP

13681-16601

$8.26

27

ADJUSTER This part replaces 13267-46010.

13267-36A00

$12.40

28

SPRING

13268-46010

$5.67

29

O RING This part replaces 13294-30010.

13278-02340

$1.91

30

SCREW This part replaces 02112-05068.

09125-05122

$2.06

31

WASHER This part replaces 13663-46710.

13523-46110

$2.70

32

.HOSE (3X5X600) This part replaces 13683-39110.

09352-30504-600

$4.91
