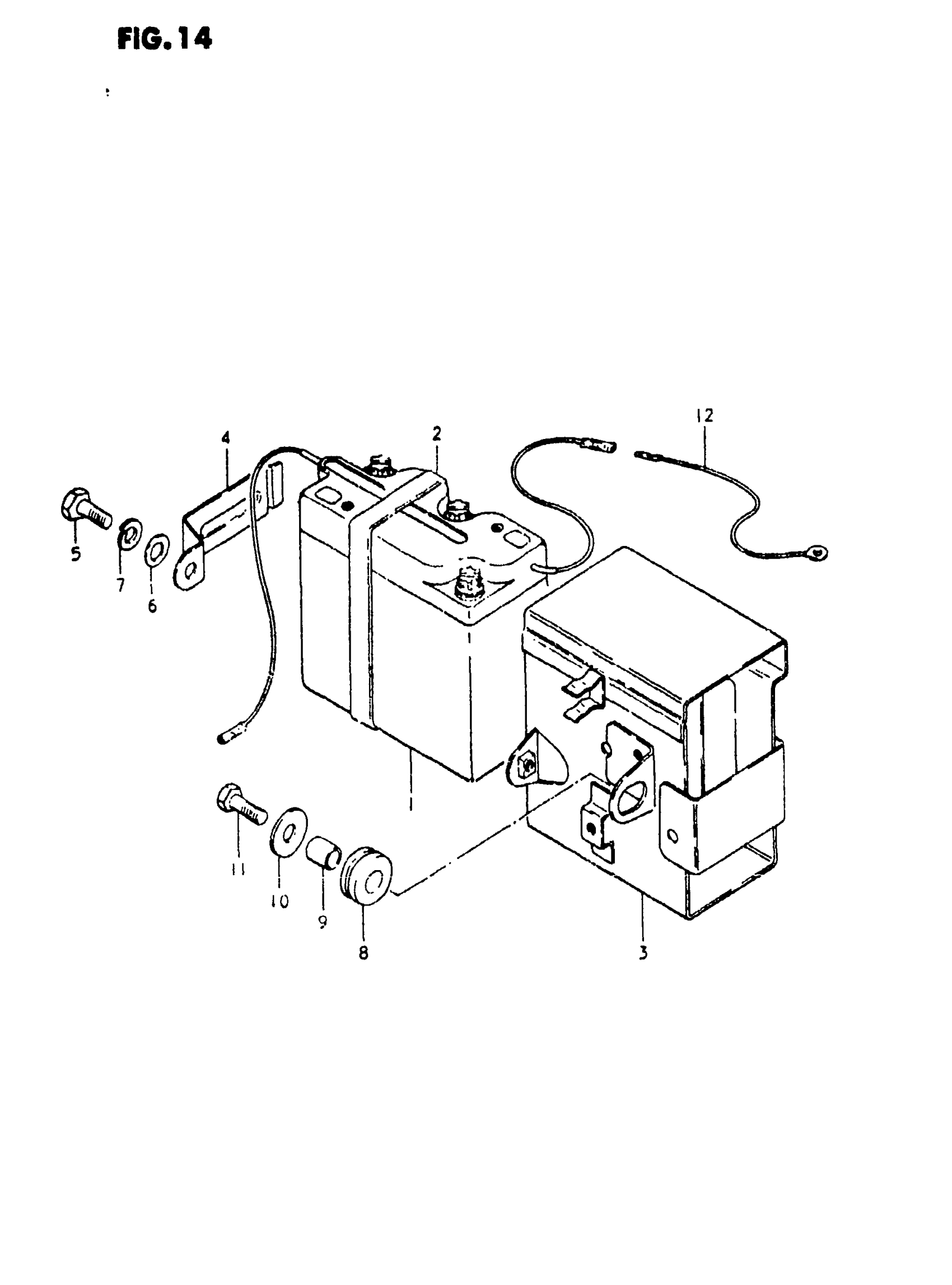

Suzuki TS250 (1981) BATTERY Diagram

#

Description
Price

1

6N4B-2A BATTERY This part replaces 33610-03610.

33610-03611

$79.23

2

PROTECTOR, BATTERY

33651-30000

Unavailable

3

HOLDER, BATTERY This part replaces 41540-30501.

41540-30560

Unavailable

4

PLATE, HOLDER

41561-29901

Unavailable

5

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

6

WASHER This part replaces 08322-21068.

08322-01067

$2.13

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

9

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

10

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

11

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

12

LEAD WIRE, BATTERY (-)

36862-27690

$5.20
