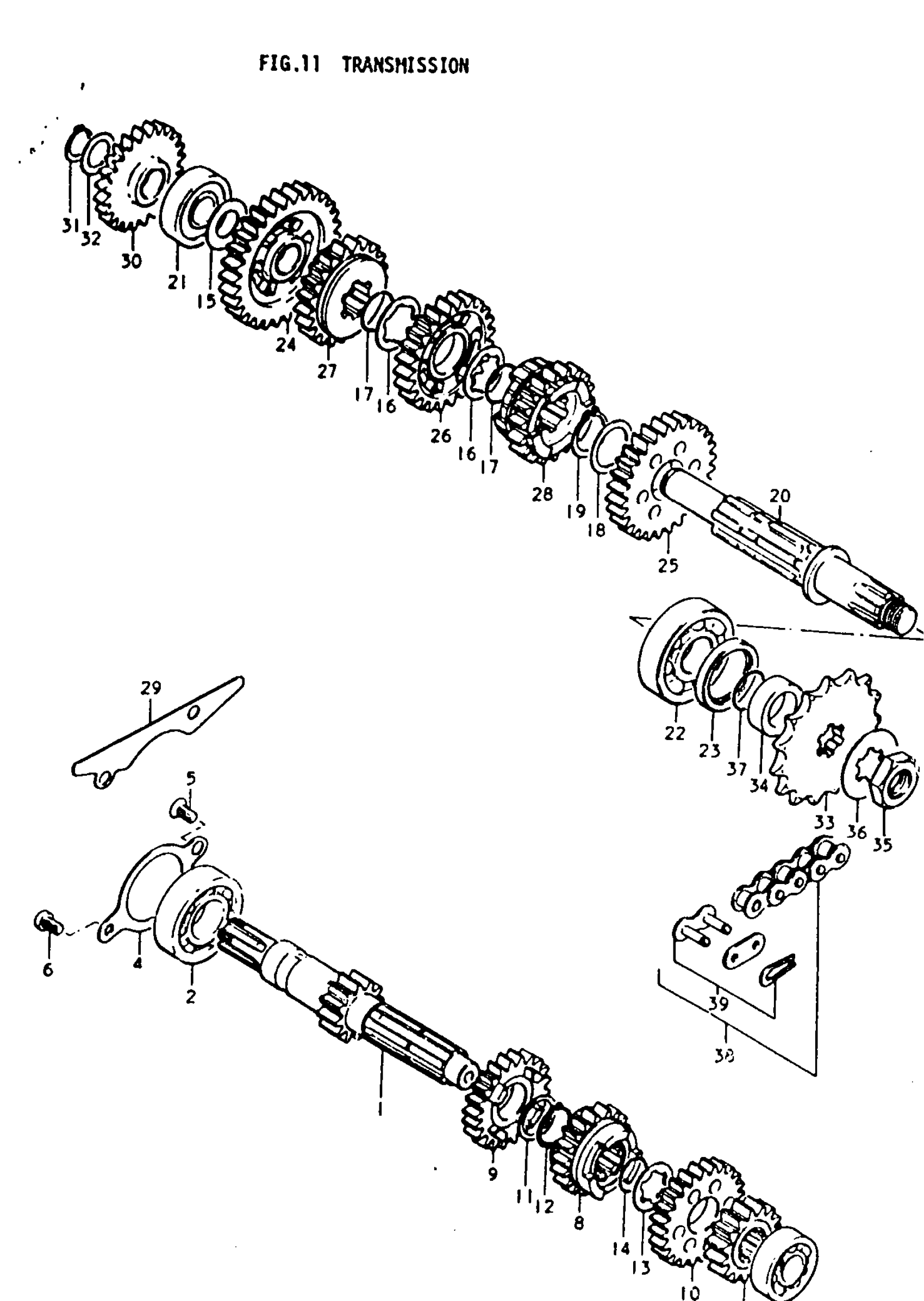

Suzuki TS250 (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | B; NT:12

24121-30000

Unavailable

1

COUNTERSHAFT | C,N; NT:11

24121-30010

Unavailable

2

BEARING (25X52X15) This part replaces 08143-62050.

08143-62057

$24.40

3

BEARING, DRIVE SHAFT RH | B,C This part replaces 08113-62030.

09262-17023

$16.75

3

BEARING, DRIVE SHAFT RH | N This part replaces 09262-17008.

09262-17023

$16.75

4

HOLDER, BEARING

24741-30100

Unavailable

5

SCREW This part replaces 02122-06128.

02122-06127

$1.84

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

GEAR, 2ND DRIVE | NT:15

24221-30000

Unavailable

8

GEAR, 3RD DRIVE | NT:18

24231-30100

Unavailable

9

GEAR, 4TH DRIVE | NT:21

24241-30000

Unavailable

10

GEAR, 5TH DRIVE | NT:23

24251-30100

Unavailable

11

WASHER (22X28X1.0) | 22x28x1 This part replaces 08211-22281.

09181-22139

$3.48

12

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

13

WASHER | 18.5x29x1

09167-22007

Unavailable

14

CIRCLIP

09380-22003

$1.92

15

WASHER, 2ND DRIVE GEAR | 17x30x1 This part replaces 08211-17301.

09181-17223

$2.96

16

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

17

CIRCLIP

09380-25006

Unavailable

18

THRUST WASHER | 25x32x1

08211-25321

$3.27

19

CIRCLIP

09380-25010

$2.91

20

DRIVESHAFT

24131-30500

Unavailable

21

BEARING

08143-62037

$18.47

22

BEARING, RH (22X56X16) | 22x56x16 This part replaces 09262-22006.

09262-22025

$57.67

23

OIL SEAL

09283-32003

$7.31

24

GEAR, 1ST DRIVEN | B; NT:29

24310-30001

Unavailable

24

GEAR, 1ST DRIVEN | C,N; NT:30

24310-30010

Unavailable

25

GEAR, 2ND DRIVEN | NT:27

24321-30000

Unavailable

26

GEAR, 3RD DRIVEN | NT:23

24331-30100

Unavailable

27

GEAR, 4TH DRIVEN | NT:21

24341-30001

Unavailable

28

GEAR, 5TH DRIVEN | NT:19

24351-30101

Unavailable

29

PLATE, OIL RESERVOIR

24871-30000

Unavailable

30

GEAR, KICK STARTER IDLE | NT:22

26260-30002

Unavailable

31

CIRCLIP

09380-17001

$1.98

32

THRUST WASHER | 17x24x1

08211-17241

$2.54

33

SPROCKET, ENGINE | NT:15

27511-30500

Unavailable

33

SPROCKET,ENGINE | NT:14 OPT This part replaces 27511-30700.

27510-32C01

$59.60

33

SPROCKET, ENGINE | NT:16 OPT

27511-30710

Unavailable

34

SPACER | 22x32x11.5

09180-22007

Unavailable

35

NUT

09140-18006

$4.83

36

WASHER

09167-22012

$1.54

37

O RING

09280-22003

$1.72

38

CHAIN ASSY, DRIVE | #525Dx104L; Includes Item(s) 39

27600-16410

Unavailable

39

JOINT, DRIVE CHAIN

27620-30110

Unavailable
