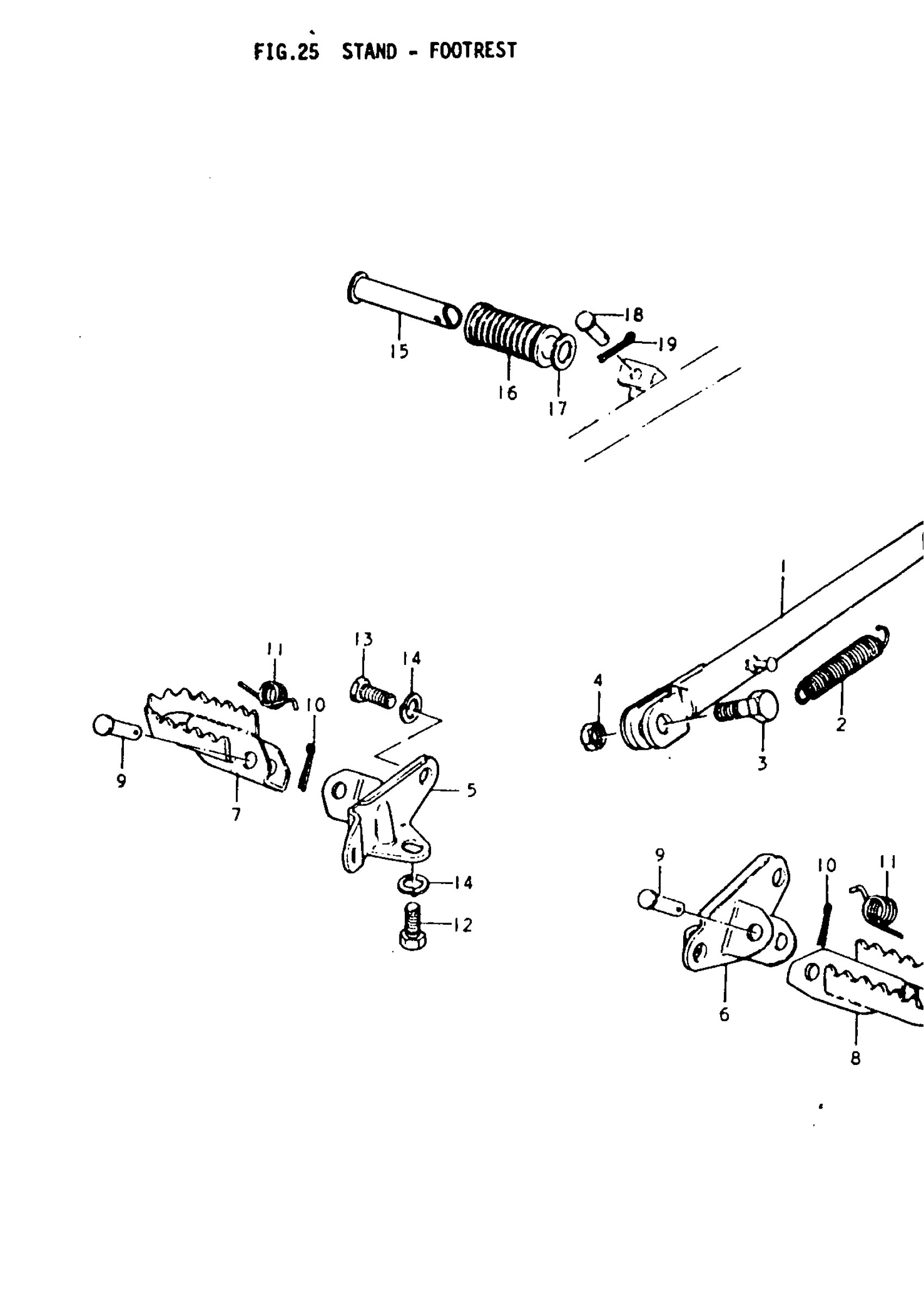

Suzuki TS250 (1979) STAND - FOOTREST Diagram

#

Description
Price

1

STAND,PROP This part replaces 42310-30500.

42310-05280-019

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | 10x30

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

HOLDER, FOOTREST RH | B; PIN 8

43510-30500

Unavailable

5

HOLDER, FOOTREST RH | PIN 10

43510-30501

Unavailable

6

HOLDER, FOOTREST LH | B; PIN 8

43520-30500

Unavailable

6

HOLDER, FOOTREST LH | PIN 10

43520-30501

Unavailable

7

FOOTREST, RH | B; PIN 8

43550-41100

Unavailable

7

FOOTREST,FRONT, | PIN 10 This part replaces 43550-41102.

43550-48501

$40.38

8

FOOTREST, LH | B; PIN 8

43560-41100

Unavailable

8

FOOTREST,FRONT, | PIN 10 This part replaces 43560-41102.

43560-48501

$38.05

9

PIN | B; 8

09200-08002

$2.05

9

PIN | 10

09200-10008

$2.62

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

SPRING | B; PIN 8

09448-14012

$3.04

11

SPRING | PIN 10

09448-15004

$2.34

12

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

13

BOLT,TRIM TAB | 8x6 This part replaces 09100-08135.

09100-08215

Unavailable

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

BAR, PILLION FOOTREST

43610-03001

$6.52

16

RUBBER

43612-03001

$5.15

17

WASHER | 19.5x32x2 This part replaces 09160-19006.

09160-19024

$2.65

18

PIN

09200-06010

$1.72

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
