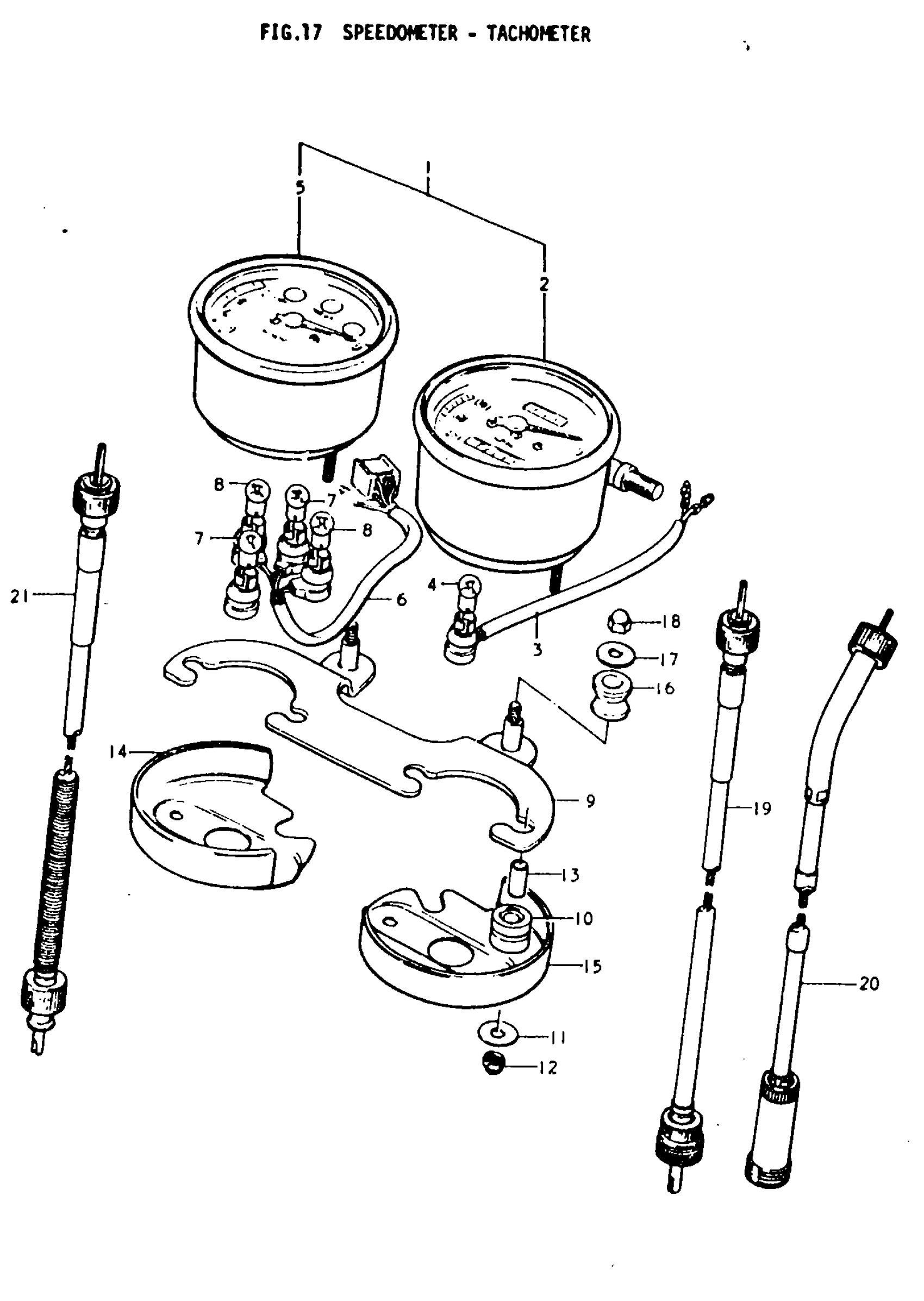

Suzuki TS250 (1979) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B; MILE SCAL This part replaces 34100-30640.

34100-30513

Unavailable

1

NO DESCRIPTION AVAILABLE | C; KILO & MILE SCALE This part replaces 34100-30510.

34100-30513

Unavailable

1

NO DESCRIPTION AVAILABLE | N; KILO & MILE SCALE; Includes Item(s) 2 - 15 This part replaces 34100-30511.

34100-30513

Unavailable

2

NO DESCRIPTION AVAILABLE | B; MILE SCALE This part replaces 34101-30641.

34101-30512

Unavailable

2

NO DESCRIPTION AVAILABLE | C; KILO & MILE SCALE This part replaces 34101-30510.

34101-30512

Unavailable

2

NO DESCRIPTION AVAILABLE | N; KILO & MILE SCALE This part replaces 34101-30511.

34101-30512

Unavailable

3

SOCKET

34170-30640

Unavailable

4

BULB | 6V, 3W

09471-06002

$2.25

5

NO DESCRIPTION AVAILABLE | B This part replaces 34201-30520.

34201-30500

Unavailable

5

NO DESCRIPTION AVAILABLE | C This part replaces 34201-30521.

34201-30500

Unavailable

5

NO DESCRIPTION AVAILABLE | N This part replaces 34201-30522.

34201-30500

Unavailable

6

SOCKET

34270-30520

Unavailable

7

BULB | B,C; 6V, 3WN; 6V, 3W

09471-06002

$2.25

8

BULB | B,C; 6V, 1.7WN; 6V, 1.7W

09471-06001

$2.18

9

BRACKET | B This part replaces 34950-30640.

34950-30641

Unavailable

9

BRACKET | C

34950-30641

Unavailable

9

BRACKET | N

34950-30642

Unavailable

10

CUSHION | B,C This part replaces 34955-30520.

34189-29330

$4.58

10

CUSHION | N

34189-29330

$4.58

11

WASHER (5.5X16X1.2) | B,C This part replaces 34181-30520.

09160-05037

$1.49

12

NUT | B,C This part replaces 34185-30520.

08313-1005B

$2.70

12

NUT | N This part replaces 08313-11057.

08313-1005A

$1.93

13

SPACER | B This part replaces 34972-30520.

34972-29300

Unavailable

13

SPACER | C,N

34972-29300

Unavailable

14

UNDER PLATE, TACHOMETER | B,C

34961-30520

Unavailable

14

UNDER PLATE, TACHOMETER | N

34293-29330

Unavailable

15

UNDER PLATE, SPEEDOMETER | B,C

34960-30520

Unavailable

15

UNDER PLATE, SPEEDOMETER | N

34193-48030

Unavailable

16

CUSHION, BRACKET

34956-15100

$3.71

17

WASHER | 6.5x19x1.6 This part replaces 09160-06007.

09160-06084

$1.78

18

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

19

CABLE,SPEEDOMET | B,C This part replaces 34910-30032.

34910-18991

$31.50

20

CABLE,SPEEDOMET | N This part replaces 34910-30510.

34910-05311

$73.65

21

CABLE,TACHOMETE This part replaces 34940-30531.

34940-30532

Unavailable
