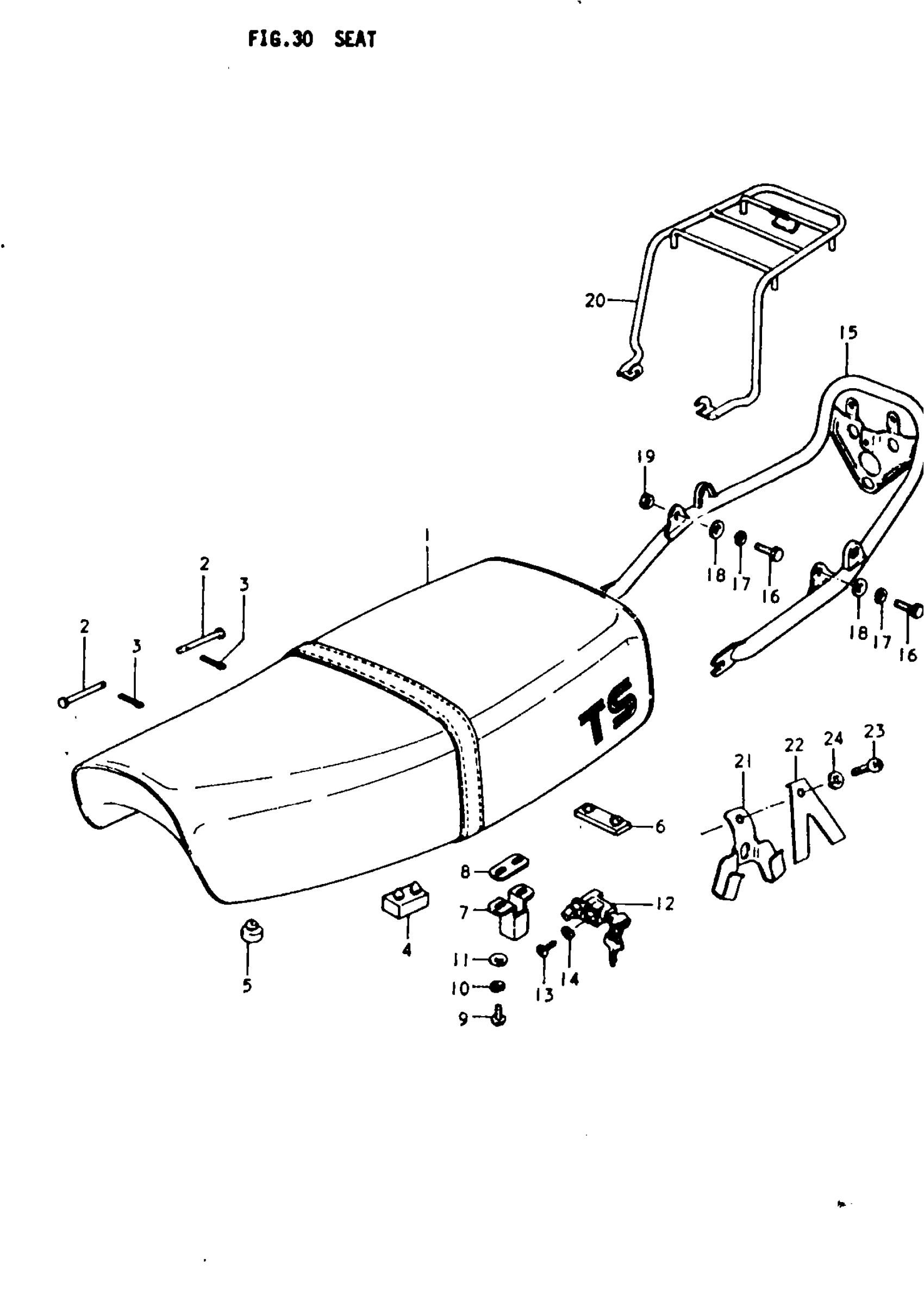

Suzuki TS250 (1979) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B,C This part replaces 45100-30500-865.

45100-30500-48F

Unavailable

1

NO DESCRIPTION AVAILABLE | N; "TS" MARK PRINTEDE This part replaces 45100-30520-865.

45100-30500-48F

Unavailable

2

PIN

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

4

CUSHION

09321-08006

$2.90

5

CUSHION

09321-10002

$2.22

6

CUSHION

09321-08009

$3.05

7

PLATE, CLAMP GUIDE

45213-29300

Unavailable

8

SHIM | B,C

45217-45001

Unavailable

8

SHIM | C,N; 8.5x18x1.0

09160-08043

$1.83

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

SEAT LOCK SET | B,C This part replaces 95700-30831.

95700-30832

$74.08

12

SEAT LOCK SET | C,N

95700-30832

$74.08

13

SCREW This part replaces 02112-05128.

02112-05127

$1.97

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

BAR, REAR COMBINATION LAMP | B This part replaces 41580-30500.

41580-30501

Unavailable

15

BAR, REAR COMBINATION LAMP | F. NO. 18666~

41580-30501

Unavailable

16

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-21088.

08322-01087

$2.13

19

NUT This part replaces 08310-12088.

08310-00087

$2.13

20

CARRIER, SPORTS | OPT

46310-30500

Unavailable

21

HOLDER, HELMET | OPT

95721-30500

Unavailable

22

SPRING | B,C; OPT This part replaces 95722-30500.

95722-30501

Unavailable

22

SPRING | N; OPT

95722-30501

Unavailable

23

SCREW | OPT This part replaces 02112-06128.

02112-06127

$1.84

24

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13
