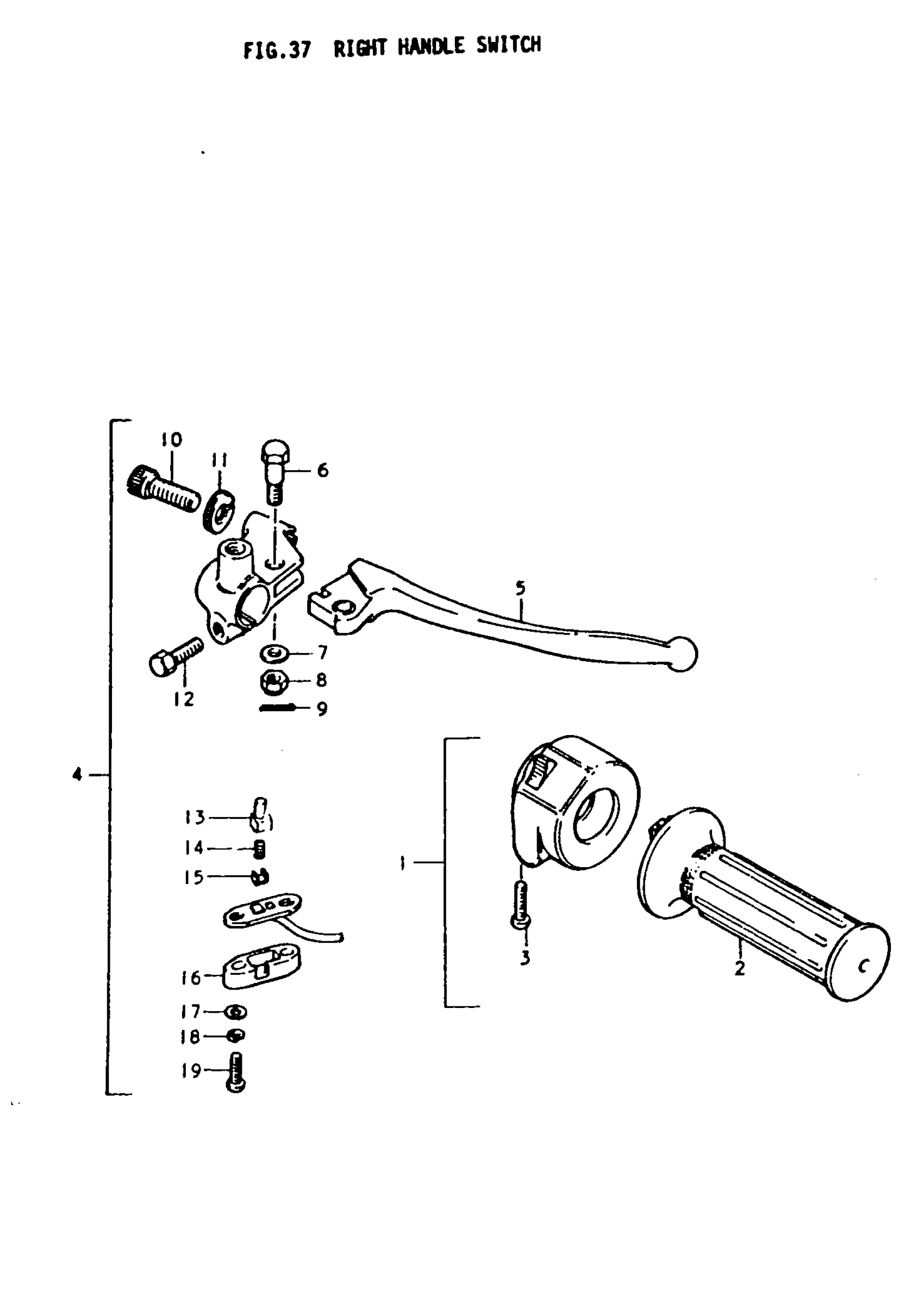

Suzuki TS250 (1979) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | B

57100-32610

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N; Includes Item(s) 2 - 3 This part replaces 57100-30500.

57100-30530

Unavailable

2

GRIP, THROTTLE | B

57110-32610

Unavailable

2

GRIP, THROTTLE | C This part replaces 57110-30500.

57110-30501

$35.12

2

GRIP, THROTTLE | N

57110-30501

$35.12

3

SCREW | B,C This part replaces 02112-05208.

02112-05207

$1.97

3

SCREW | N This part replaces 02112-05258.

02112-05257

$1.49

4

LEVER ASSY, BRAKE | B This part replaces 57300-30014.

57300-30501

Unavailable

4

LEVER ASSY, BRAKE | C This part replaces 57300-30500.

57300-30501

Unavailable

4

LEVER ASSY, BRAKE | N; Includes Item(s) 5 - 19

57300-30501

Unavailable

5

LEVER, BRAKE | B,N

57420-18602

Unavailable

5

LEVER, BRAKE | C This part replaces 57420-39600.

57420-18602

Unavailable

6

BOLT This part replaces 57431-11010.

57431-11013

$6.31

7

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

8

NUT | B,C

57433-11010

$5.64

8

.NUT | N This part replaces 08319-21068.

08319-2106A

$1.91

9

PIN | B,C This part replaces 04111-16158.

04111-1620A

$1.49

10

ADJUSTER, CABLE

57441-11010

$5.62

11

NUT

57442-11010

$2.79

12

BOLT This part replaces 01107-06208.

01500-06207

$2.28

13

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

14

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

15

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

16

COVER

57481-33010

$5.84

17

WASHER This part replaces 08322-21038.

08322-01037

$1.93

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

19

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23
