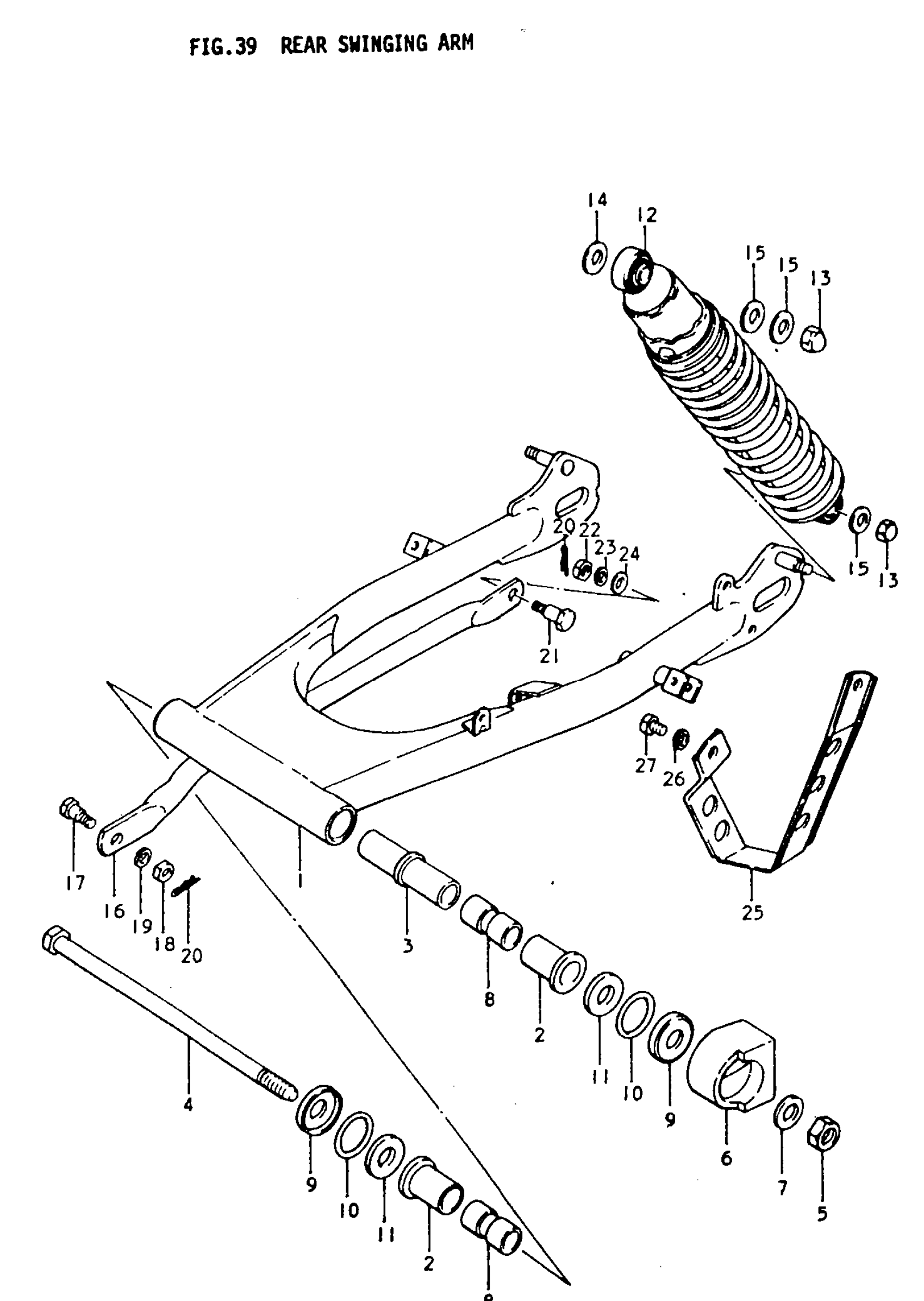

Suzuki TS250 (1979) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 61100-30870-019.

61100-30871-019

Unavailable

2

BUSHING

09307-22003

Unavailable

3

SPACER

61280-32000

Unavailable

4

SHAFT, REAR SWINGING ARM This part replaces 61211-15006.

61211-15007

Unavailable

5

NUT This part replaces 08319-21148.

08319-2114A

$3.96

6

BUFFER, CHAIN TOUCH DEFENSE

61273-32100

Unavailable

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

SPACER

61251-15001

Unavailable

9

COVER

61262-15000

$93.03

10

.O RING (D:3,ID:29.5)

09280-30001

$1.72

11

THRUST WASHER | 14.5x29x2.3

09160-14009

$2.82

12

SHOCK ABSORBER ASSY, REAR | B This part replaces 62100-30510.

62100-30530

Unavailable

12

SHOCK ABSORBER ASSY, REAR | C

62100-30520

Unavailable

12

SHOCK ABSORBER ASSY, REAR | N

62100-30530

Unavailable

13

NUT This part replaces 08313-11108.

08313-10107

$2.50

14

WASHER This part replaces 08322-11128.

08322-01127

$1.84

15

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

16

NO DESCRIPTION AVAILABLE This part replaces 64311-32100.

64311-32101-019

Unavailable

17

BOLT

09111-08012

$3.78

18

NUT

09140-08008

$1.49

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

CLIP This part replaces 09385-10001.

09385-10005

$1.56

21

BOLT

09111-10009

Unavailable

22

NUT This part replaces 08310-22108.

08310-00107

$2.19

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

WASHER This part replaces 08322-11128.

08322-01127

$1.84

25

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

Unavailable

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

BOLT This part replaces 01107-08128.

01500-08127

$2.62
