Find the part on the Rear Fender diagram for your 1979 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

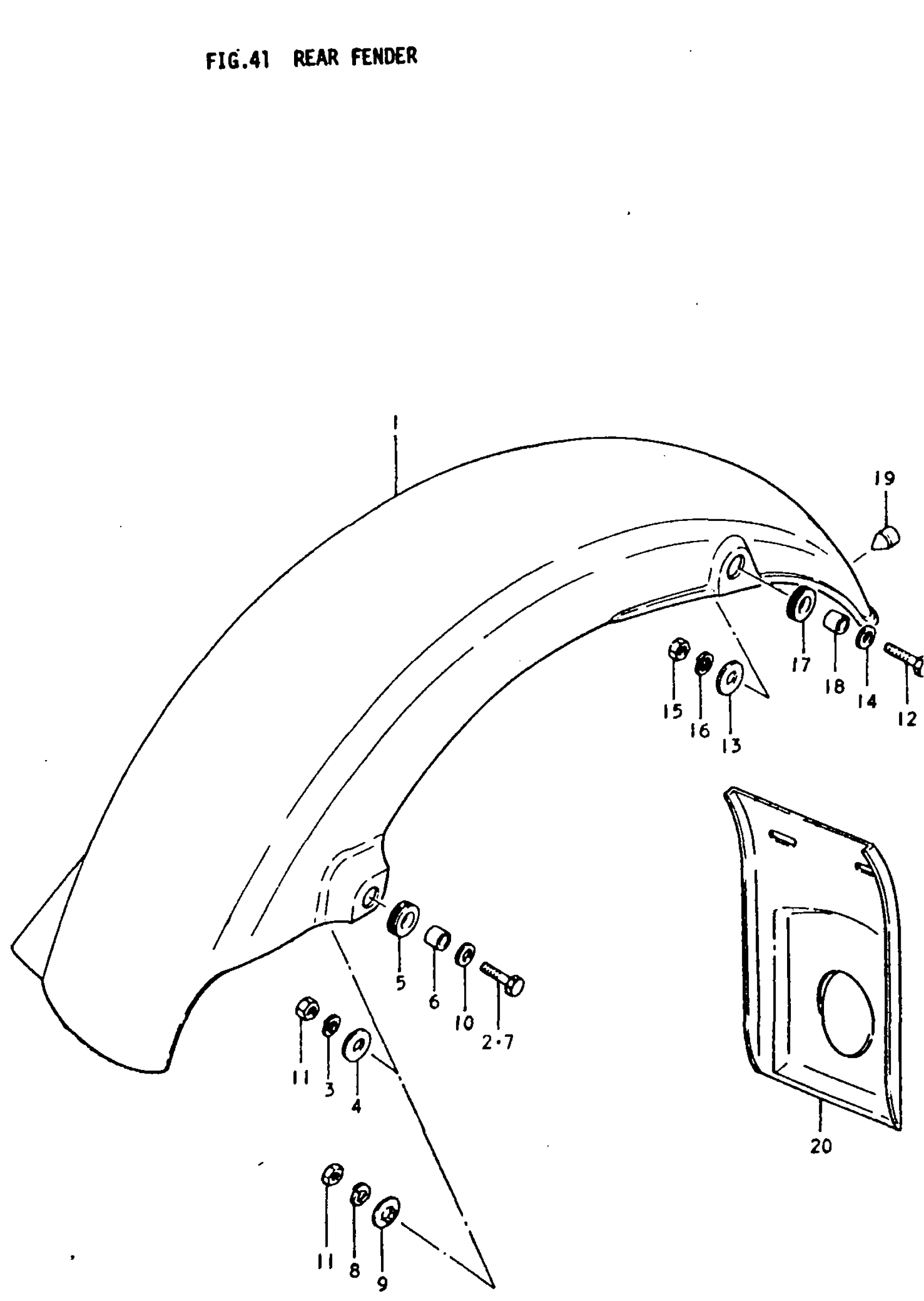

1979 Suzuki TS250 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | B,C This part replaces 63111-30510-189.

63111-30512-189

1
Out of stock

1

NO DESCRIPTION AVAILABLE | C; TO 63111-30512 USED WITH 01107-06168 09169-16010 This part replaces 63111-30511-189.

63111-30512-189

1
Out of stock

1

FENDER, REAR | N

63111-30512-07P

1
Out of stock

2

BOLT | B,C This part replaces 01107-06208.

01500-06207

2
Out of stock

3

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

2
Out of stock

4

WASHER (6.5X20X1.2) | B,C; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

5

CUSHION (8.5X20X8) | B,C This part replaces 09320-08007.

09320-08510

2
Out of stock

6

SPACER | B,C; 6.1x9x7.5

09180-06038

2
Out of stock

7

BOLT, CANISTER | N This part replaces 01107-06168.

01500-06167

2
Out of stock

8

LOCK WASHER | N This part replaces 08321-21068.

08321-01067

2
Out of stock

9

WASHER | N

09169-06010

2
Out of stock

10

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

11

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock

12

BOLT This part replaces 01107-08308.

01500-08307

2
Out of stock

13

WASHER | 8.5x26x1.2

09160-08032

2
Out of stock

14

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

15

NUT This part replaces 08310-12088.

08310-00087

2
Out of stock

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

17

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

18

SPACER | 8.2x11.8x7.5 This part replaces 09180-08021.

09180-08188

2
Out of stock

19

CUSHION | B,C This part replaces 09321-06013.

09321-06036

1
Out of stock

20

MUD FLAP, REAR FENDER | OPT This part replaces 63331-30600.

63331-30601

1
Out of stock
