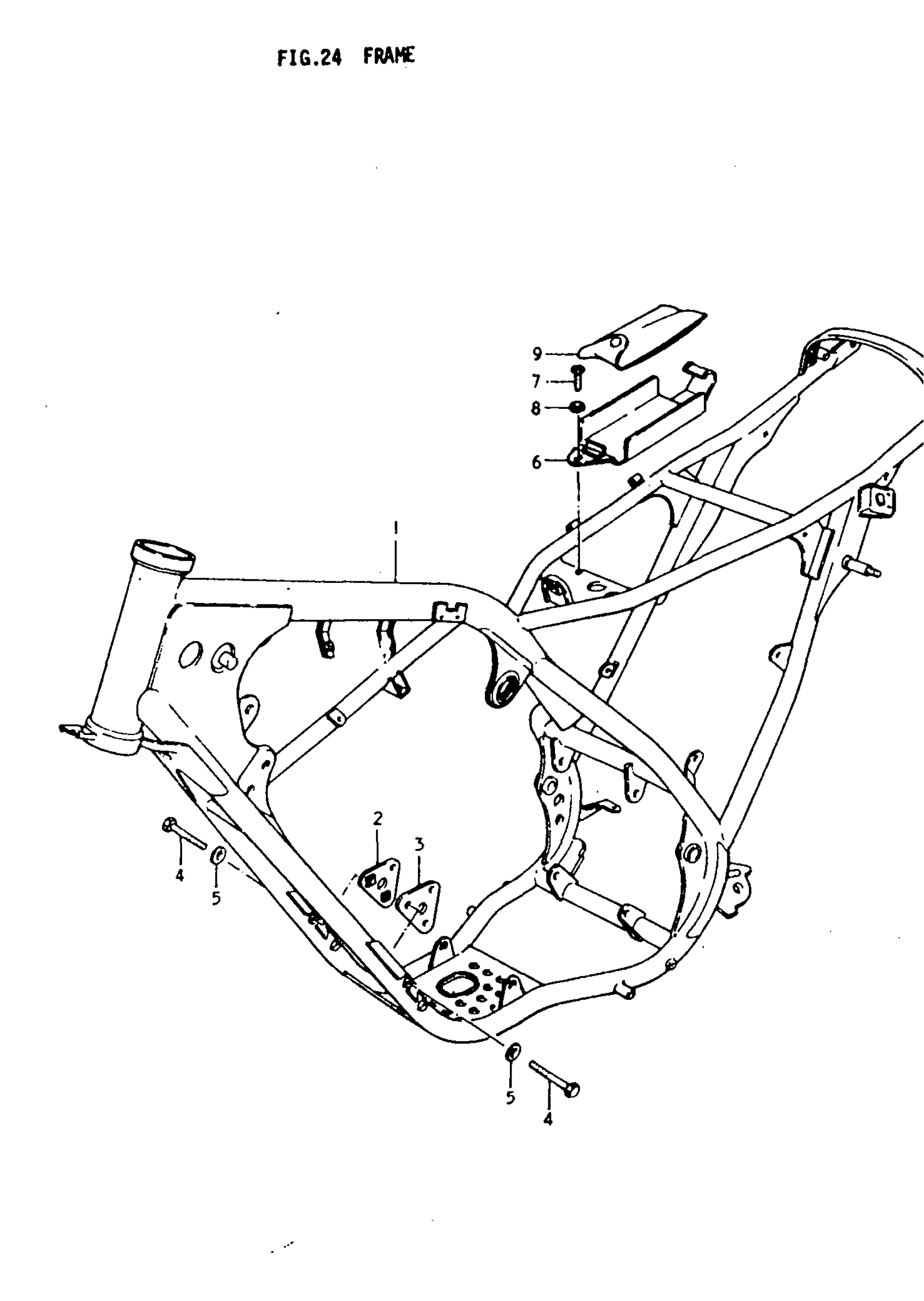

Suzuki TS250 (1979) FRAME Diagram

#

Description

Price

1

FRAME | B,C This part replaces 41100-30500-019.

41100-30501-019

Unavailable

1

FRAME | N

41100-30501-019

Unavailable

2

PLATE, ENGINE MOUNTING RH

41980-30500

Unavailable

3

PLATE, ENGINE MOUNTING LH

41990-30500

Unavailable

4

BOLT This part replaces 01107-08558.

01500-08557

$2.90

5

WASHER This part replaces 08322-11088.

08322-01087

$1.86

6

HOLDER, TOOL

41550-30500

Unavailable

7

SCREW This part replaces 02112-06108.

02112-06107

$1.45

8

WASHER This part replaces 08322-21068.

08322-01067

$1.86

9

TOOL ASSY This part replaces 09800-00146.

09800-21028

$30.23
