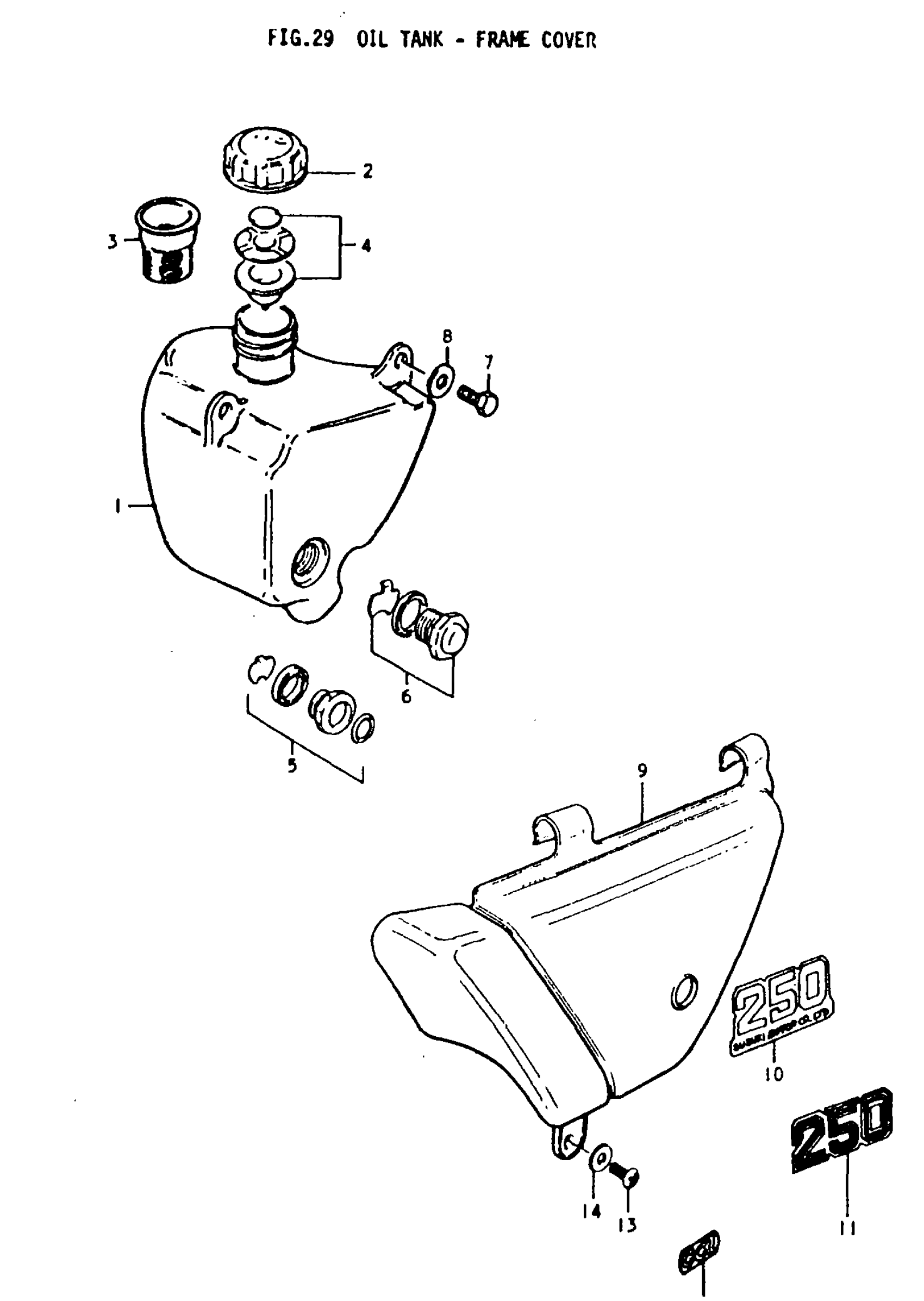

Suzuki TS250 (1979) OIL TANK - FRAME COVER Diagram

#

Description
Price

1

OIL TANK This part replaces 44611-30500.

44611-30501

Unavailable

2

CAP

44651-05003

$4.84

3

FILTER | OPT

44665-35000

$8.52

4

GASKET SET | B This part replaces 44600-30830.

44600-30833

$5.19

4

GASKET SET | C,N This part replaces 44600-30832.

44600-30833

$5.19

5

OIL LEVEL INSPE | B This part replaces 44600-31831.

44600-31832

$10.59

6

OIL LVL INSPECT | C,N This part replaces 44600-46810.

44600-46811

$7.60

7

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01

8

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.82

9

NO DESCRIPTION AVAILABLE | B This part replaces 47211-30500-03K.

47211-30510

Unavailable

9

NO DESCRIPTION AVAILABLE | C This part replaces 47211-30510-05L.

47211-30510

Unavailable

9

NO DESCRIPTION AVAILABLE | N This part replaces 47211-30510-07P.

47211-30510

Unavailable

10

EMBLEM | B,C

68141-30500

Unavailable

11

EMBLEM | N

68141-30520-538

Unavailable

12

EMBLEM | OCI

68171-26000

$3.53

13

SCREW

02142-06127

$1.43

14

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.82
