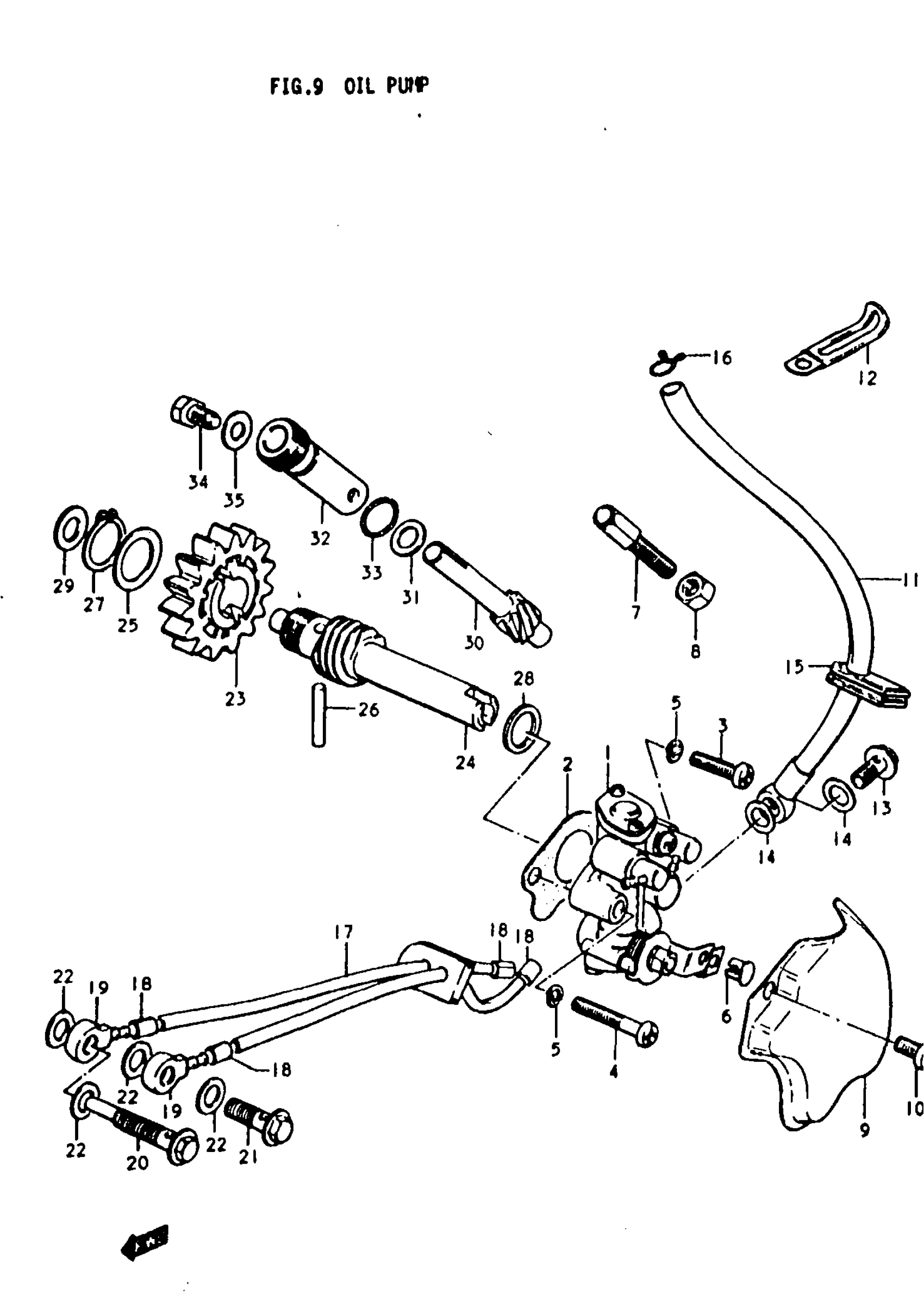

Suzuki TS250 (1979) OIL PUMP Diagram

NO DESCRIPTION AVAILABLE | B This part replaces 16100-30510.

16100-30511

Unavailable

PUMP ASSY, OIL | C,N

16100-30520

Unavailable

GASKET, OIL PUMP | B,C This part replaces 16731-03100.

16731-03101

$2.81

GASKET, OIL PUMP | N

16731-03101

$2.81

SCREW This part replaces 02112-05168.

02112-05167

$1.97

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$5.05

BOLT

09119-08014

$3.55

NUT This part replaces 08310-12088.

08310-00087

$2.13

CAP, OIL PUMP INSPECTION

11385-30000

Unavailable

SCREW This part replaces 02112-06108.

02112-06107

$1.49

HOSE, OIL (L:512!97) This part replaces 16810-30500.

16810-07520

Unavailable

CLAMP (L:82) | C,N This part replaces 09404-10403.

09404-10205

Unavailable

UNION BOLT | 6x16

09360-06003

$3.76

GASKET | 6.5x13x1

09168-06004

$1.49

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

CLAMP

09401-08401

$1.54

HOSE, OIL OUTLET

16820-30500

Unavailable

CLIP

09401-04401

$2.06

UNION This part replaces 09363-02001.

09363-02002

$8.23

UNION BOLT, CYLINDER | 6x38

09360-06009

$6.83

UNION BOLT, CRANK | 6x16

09360-06003

$3.76

GASKET | 6.5x13x1

09168-06004

$1.49

GEAR, OIL PUMP DRIVE | NT:15

16321-30030

Unavailable

SHAFT, OIL PUMP DRIVE | NT:6

16322-30001

Unavailable

WASHER | 14x24x1

08211-14241

Unavailable

PIN

09261-04005

$1.67

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

THRUST WASHER | 12x20x1.5

08211-12202

Unavailable

THRUST WASHER

08221-08166

Unavailable

GEAR, TACHO. DRIVEN (NT:9) | NT:9 This part replaces 26431-30000.

26431-30001

Unavailable

WASHER | 8x13.7x1

09160-08003

$2.23

SLEEVE, TACHOMETER DRIVEN GEAR

26441-30000

Unavailable

O RING

09280-10001

$2.02

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

WASHER This part replaces 08322-21068.

08322-01067

$2.13
